| 1144_0 - 12V Sensor Adapter |
Product Features
- Connects 12V sensors directly to a Phidget InterfaceKit
- No external power supply required
- Connects to any device with an Analog Input.
Product Description

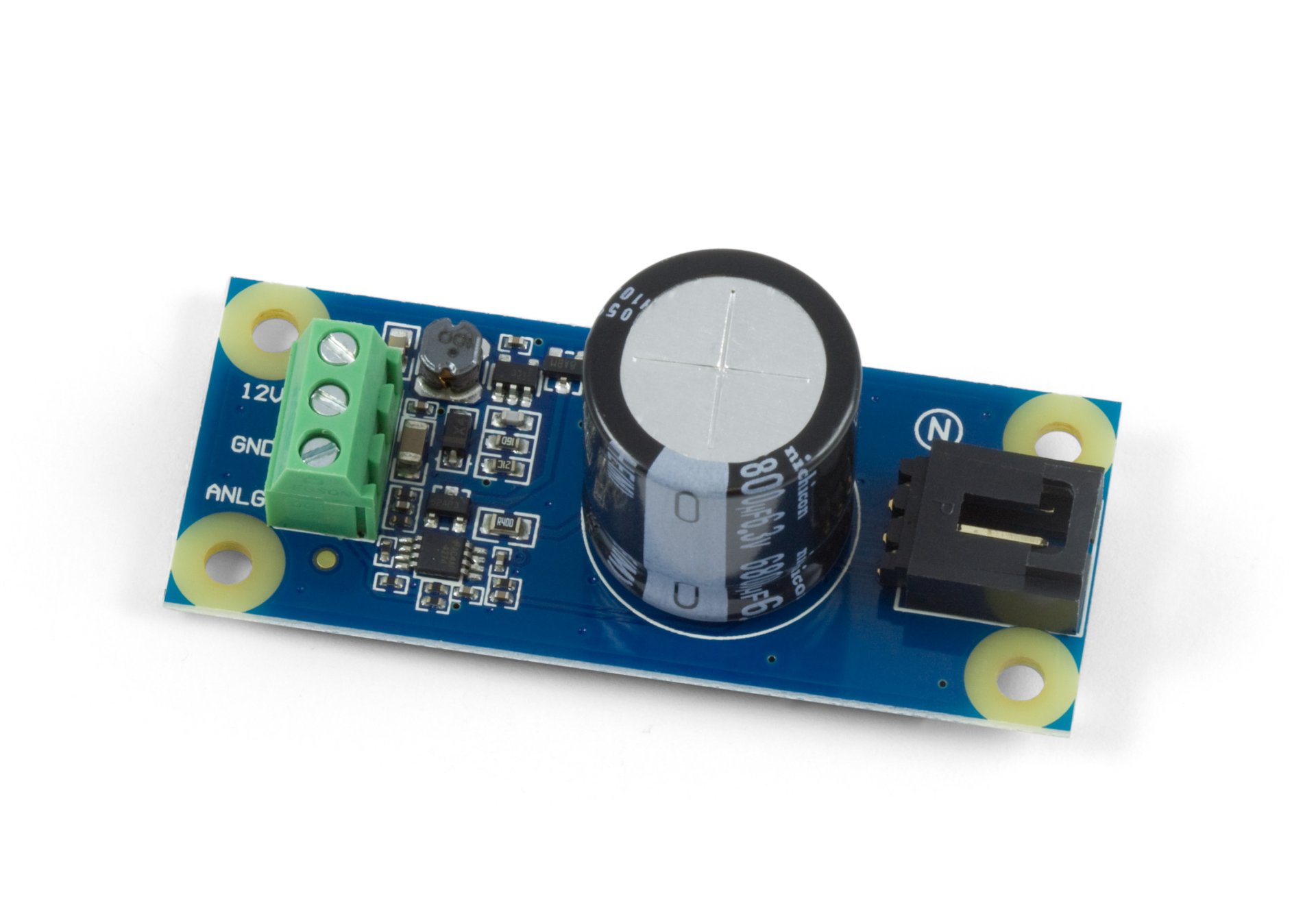

The 5V to 12V Sensor Adapter provides an easy solution for using 12V sensors (such as these CE voltage and current sensors) with Phidgets. Simply hook up the sensor to the terminal blocks, and connect it to the analog input of any Phidget InterfaceKit. The 1144 is powered by the attached interface kit, so you don't need a separate power supply for the sensor.
Product Specifications
Sensor Properties
| Sensor Output Type | Non-Ratiometric |
Electrical Properties
| Available External Voltage | 12 V DC |
| Available External Current | 20 mA |
| Supply Voltage Min | 4.8 V DC |
| Supply Voltage Max | 5.3 V DC |
| Current Consumption Max | 50 mA |
| Output Impedance | 1 kΩ |
Physical Properties
| Recommended Wire Size | 16 - 26 AWG |
| Operating Temperature Min | -40 °C |
| Operating Temperature Max | 85 °C |
Comes Packaged with
- 3002 – 60cm Sensor Cable
- 10kΩ resistor x2
Related Products
The following sensors will work with this adapter:
- 3507 - CE-VJ03-32MS2-0.5 AC Voltage Sensor 0-250V (50Hz)
- 3508 - CE-VJ03-32MS2-0.5 AC Voltage Sensor 0-250V (60Hz)
- 3509 - CE-VZ02-32MS2-0.5 DC Voltage Sensor 0-200V
- 3510 - CE-VZ02-32MS2-0.5 DC Voltage Sensor 0-75V
- 3511 - CE-IZ02-32MS1-0.5 DC Current Sensor 0-10mA
- 3512 - CE-IZ02-32MS1-0.5 DC Current Sensor 0-100mA
- 3513 - CE-IZ02-32MS1-0.5 DC Current Sensor 0-1A
- 3514 - AC Active Power Sensor 0-250V*0-30A (50Hz)
- 3515 - AC Active Power Sensor 0-250V*0-30A (60Hz)
- 3516 - AC Active Power Sensor 0-250V*0-5A (50Hz)
- 3517 - AC Active Power Sensor 0-250V*0-5A (60Hz)
- 3518 - AC Active Power Sensor 0-110V*0-5A (60Hz)
- 3519 - AC Active Power Sensor 0-110V*0-15A (60Hz)
These switch-style proximity sensors can also be used with this adapter:
- 3523 - Lanbao Capacitive Proximity Sensor - 8mm
- 3524 - Lanbao Capacitive Proximity Sensor - 15mm
- 3525 - Lanbao Photoelectric Proximity Sensor - 10m
- 3526 - Autonics Inductive Proximity Sensor - 4mm
- 3527 - Autonics Inductive Proximity Sensor - 15mm
- 3528 - SN04-N Inductive Proximity Sensor - 5mm
For connection details, see the technical section of the User Guide.
