| 1122_0 - 30 Amp Current Sensor AC/DC |
Product Features
Measure up to 30 amps DC or ±30 amps AC with this current sensor. Separate outputs for AC and DC components connect to an analog input.
Product Description

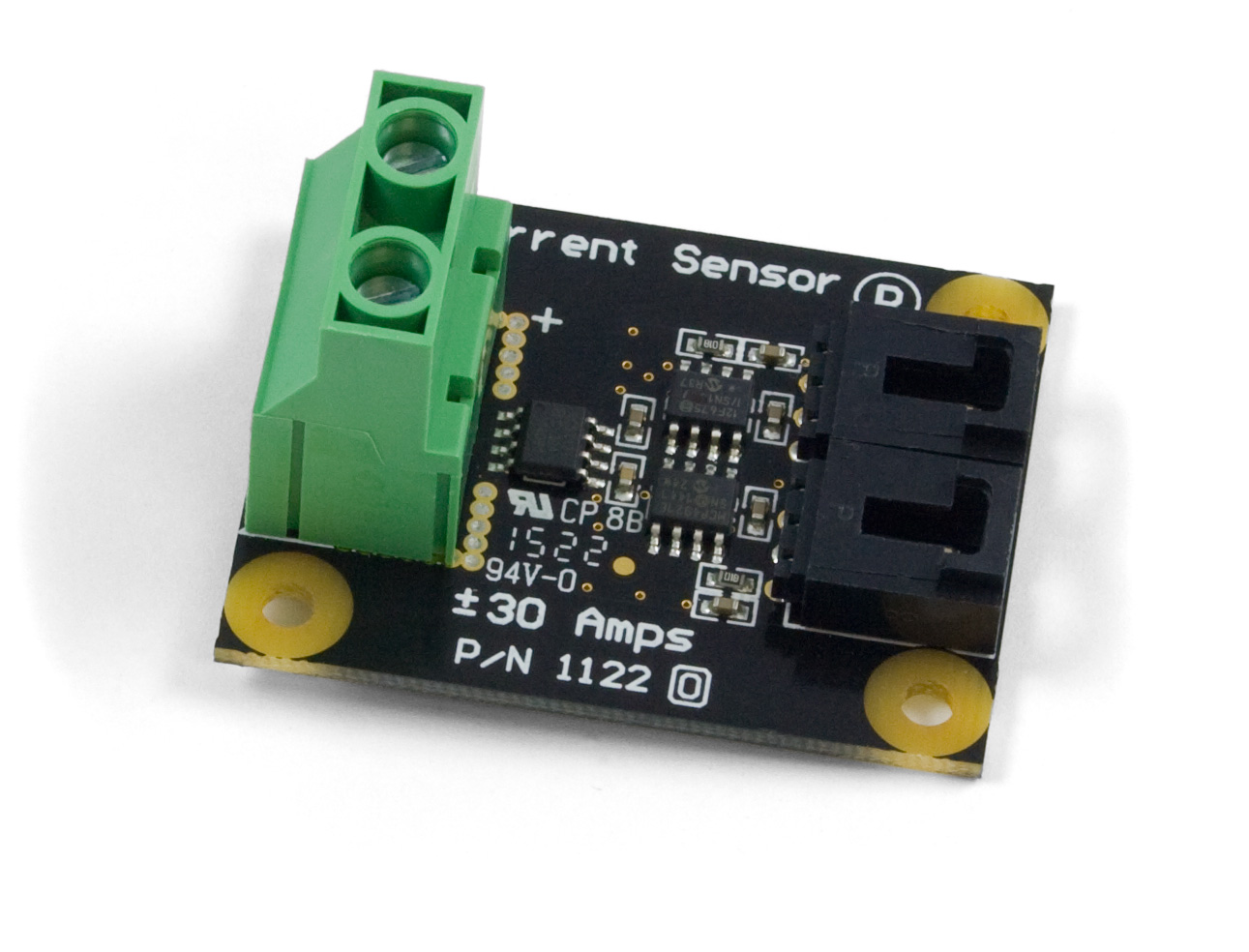

The 1122 measures AC current up to 30 Amps and DC Current from -30Amps to +30Amps. Dual outputs allow the user to measure both the AC and DC components of complex current waveforms separately.
Product Specifications
Sensor Properties
| Sensor Type | Current (AC/DC In-Line) |
| Sensor Output Type | Ratiometric |
| Input Current Min | ± 75 mA |
| Input Current Max | ± 30 A |
| Surge Current (Input) | 100 A |
| Measurement Error Max | 5 % |
| Sensor Response Time Max | 10 ms |
Electrical Properties
| Input Frequency | 10 kHz |
| Supply Voltage Min | 4.5 V DC |
| Supply Voltage Max | 5.5 V DC |
| Current Consumption Max | 10 mA |
| Output Impedance | 1 kΩ |
| Input Impedance | 1.5 mΩ |
| Output Voltage Min | 0 V DC |
| Output Voltage Max | 5 V DC |
Physical Properties
| Recommended Wire Size | 10 - 26 AWG |
| Operating Temperature Min | -40 °C |
| Operating Temperature Max | 85 °C |
