| 1118_0 - 50Amp Current Sensor AC/DC - Discontinued |
Product Features
Measure up to 50 amps DC or ±50 amps AC with this current sensor. Separate outputs for AC and DC components connect to an analog input.
Replaced by the:
3502 - i-Snail-VC-50 Current Sensor 50Amp (for AC only), or the 1122 - 30Amp Current Sensor AC/DC. (for AC or DC)
Product Description

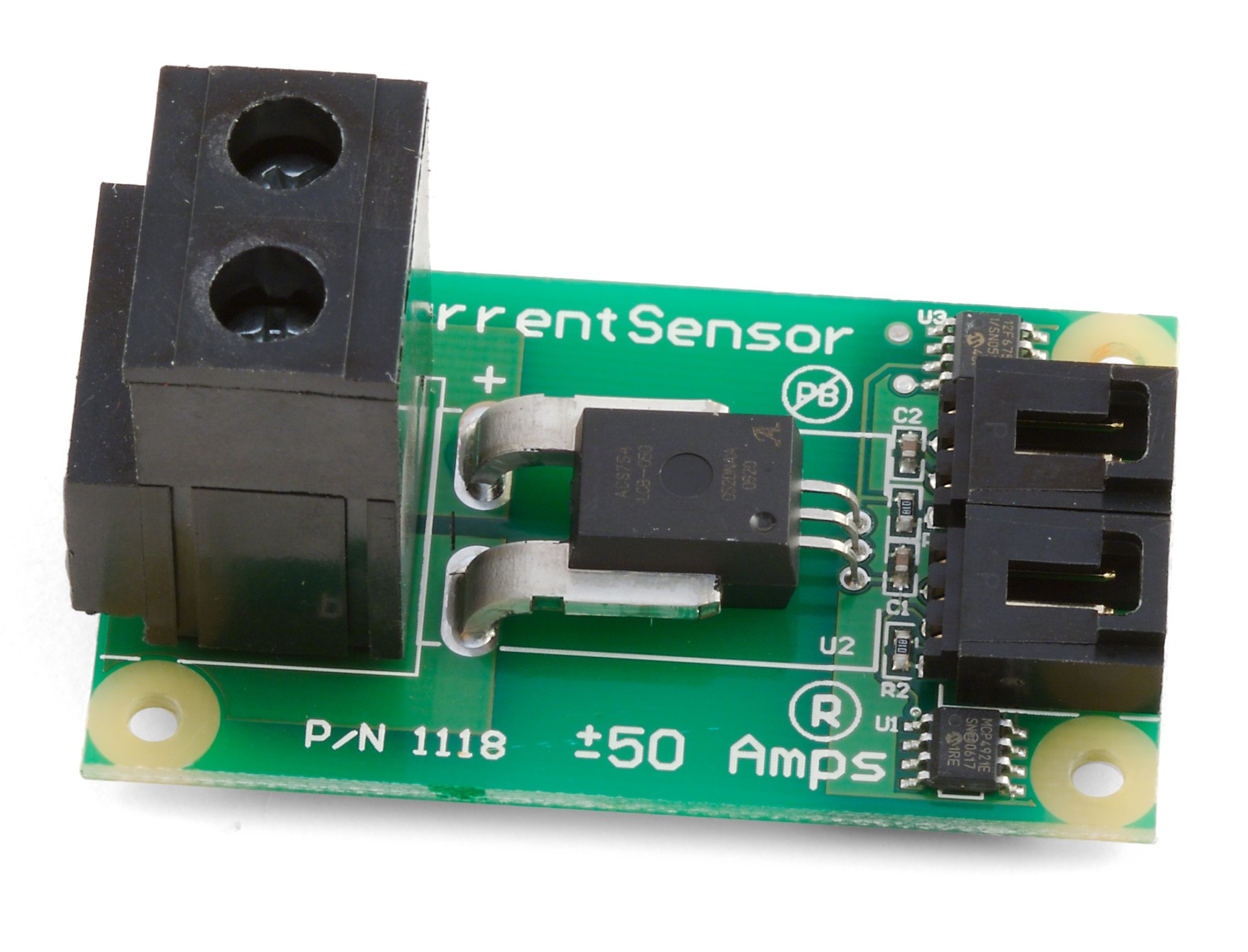

The 1118 measures AC current up to 50Amps and DC Current from -50Amps to +50Amps. Dual outputs allow the user to measure both the AC and DC components of complex current waveforms separately.
Product Specifications
| Active Current Consumption | 10mA |
| Output Impedance | 1k ohms |
| Supply Voltage | 4.5VDC to 5.5VDC |
| Maximum Working Voltage | 353VAC / 500VDC |
| Maximum Measurable AC Current | 50A |
| Maximum Measurable DC Current | ±50A |
| Maximum Measurable AC Frequency | 10kHz |
| Current Conductor Resistance | 100μΩ |
| Isolation - Current Loop to Sensor Output | 3kV RMS |
| Terminal Block Recommended Wire Size | 6 - 20 AWG |
| Wire Stripping Length | 10mm |
| Offset (no current flowing) | ±150mA Max @ 25°C |
| Total Output Error | ±6% Max between -40°C to +85°C |
| Total Output Error (typical) | ±1% @ 25°C Max |
