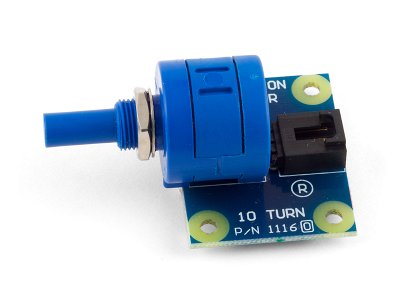

| 1116_0 - Multi-turn Rotation Sensor |
Product Features
- Measures 3600 degrees of rotation - 10 full turns.
- Typically used in Human Interface Applications such as control panels.
- Connects to any device with an Analog Input.
Product Description
The 1116 measures 3600 degrees of rotation - 10 full turns. It is typically used in Human Interface Applications such as control panels.
This sensor is designed to be 3.3V compatible and can interface with other products as an alternative. For example, the Java based Sentilla Perk includes side ports that are compatible with 3.3V Phidget sensors without any modifications.
Product Specifications
Sensor Properties
| Sensor Type | Input (Rotation) |
| Sensor Output Type | Ratiometric |
| Range of Rotation | 3600° |
Electrical Properties
| Current Consumption Max | 250 μA |
| Output Impedance | 20 kΩ |
| Supply Voltage Min | 3 V DC |
| Supply Voltage Max | 5.3 V DC |
Physical Properties
| Operating Temperature Min | -40 °C |
| Operating Temperature Max | 105 °C |
