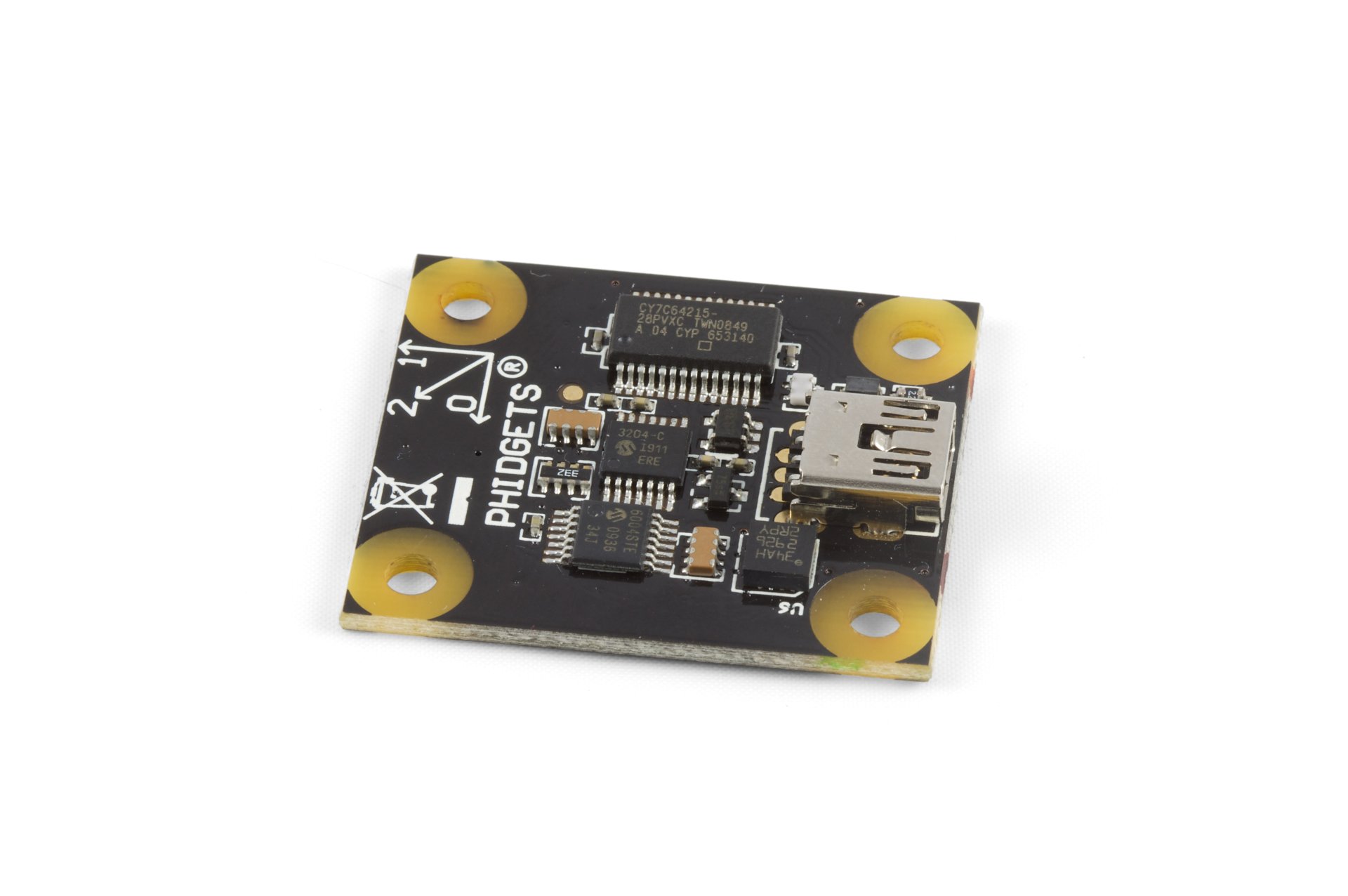

| 1049_0 - PhidgetSpatial 0/0/3 - Discontinued |
Product Features
- 3-Axis, 5g Accelerometer
- Internally calibrated at factory
- High Sampling speed of up to 1000 samples per second
- Connects directly to a computer's USB Port
Replaced by the 1043 - PhidgetSpatial 0/0/3 High Resolution.
Product Description
The 1049 - PhidgetSpatial 0/0/3 measures static and dynamic acceleration in 3 axes, up to 5g, and provides a high sampling speed of up to 1000 samples per second.
Each accelerometer axis is calibrated at the factory for cross-axis misalignment, sensitivity to positive and negative acceleration, and offset.
The 1049 can be used to:
- Sense tilt in remotely operated vehicles.
- Capture motion input for gaming or for Human Interface Research.
- Capture long term vibration data to help with the analysis of machinery performance.
- Detect movement or presence by measuring structural vibration.
Product Specifications
Accelerometer
| Acceleration Measurement Resolution | 3.7 mg |
| Acceleration Bandwidth | 110 Hz |
| Acceleration Measurement Max | ± 5 g |
| Axis 0 Noise Level (X-Axis) | 2 mg |
| Axis 1 Noise Level (Y-Axis) | 2 mg |
| Axis 2 Noise Level (Z-Axis) | 2 mg |
Board
| Sampling Speed Min | 1 s/sample |
| Sampling Speed Max | 1 ms/sample |
| Sampling Speed Min (Webservice) | 1 s/sample |
| Sampling Speed Max (Webservice) | 16 ms/sample |
| USB Voltage Min | 4.4 V DC |
| USB Voltage Max | 5.3 V DC |
| Current Consumption Max | 22 mA |
| USB Speed | Full Speed |
| Operating Temperature Min | 0 °C |
| Operating Temperature Max | 70 °C |
Related Products
If you need an accelerometer with higher resolution and lower noise have a look at:
The 1056 PhidgetSpatial 3/3/3 provides 16 times better resolution on the acceleration data, but is limited to 250 samples per second.
Comes packaged with
- A 3018 - Mini-USB Cable 180cm
- A Hardware mounting kit (4 nuts and bolts, 4 plastic spacers)
Resources
Enclosure
You can protect your board by purchasing the 3811 - Acrylic Enclosure for the 1049.
