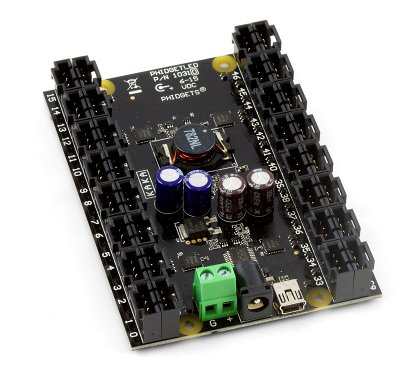

PhidgetLED-64 Advanced

ID: 1031_0

This Phidget controls the brightness of up to 64 LEDs.

Replaced by 1032_0B

Replaced by the 1032 - PhidgetLED-64 Advanced.

The PhidgetLED 64 allows you to independently control 64 Light Emitting Diodes. Each LED can be turned on and off, and its brightness controlled.

Most standard LEDs with colors such as red, amber, orange, yellow, and green have forward voltages below 2.75 Volts, and can be used with the PhidgetLED by simply soldering them to a connector-wire and inserting the wire into any PhidgetLED board connector. The forward voltage will default to 2.75V, and the maximum current defaults to 20mA.

The 1031 is capable of adjusting the forward voltage supplied to the LEDs with 1.7, 2.75, 3.9 and 5 volts settings allowing you to properly drive blue, white, violet, ultra violet and purple LEDs.

Bi-color LEDs, tri-color LEDs, seven-segment displays, bar LEDs, and other array-style arrangements of LEDs can also be used with the 1031.

The maximum current can be set to 20, 40, 60 or 80mA, and applies to all LEDs. The API allows the brightness control of individual LEDs.


Comes packaged with

Note: Cut the Double Ended cables in half and solder the cut end to the LED. Check the Getting Started section of the User Guide for more detailed information.

Product Specifications

Physical Properties
API Object Name LED
Number of LED Outputs 64
Recommended Wire Size 12 - 24 AWG
Power Jack Hole Diameter 5.5 mm
Power Jack Pin Diameter 2.1 mm
Power Jack Polarity Center Positive
Operating Temperature Min 0 °C
Operating Temperature Max 70 °C
Electrical Properties
USB Voltage Min 4.5 V DC
USB Voltage Max 5.3 V DC
Current Consumption Min 195 mA
Supply Voltage Min 6 V DC
Supply Voltage Max 15 V DC
Selectable Output Voltage Levels 1.7 VDC, 2.75 VDC, 3.0 VDC, 5.0 VDC
Selectable Output Current Levels 20 mA, 40 mA, 60 mA, 80 mA
USB Speed Full Speed
Customs Information
Canadian HS Export Code 8471.80.00
American HTS Import Code 8471.80.40.00
Country of Origin CN (China)

Software Objects

Device Object Name Channel
LED Output DigitalOutput 0 - 63

Documents

Code Samples

Language:

APIDetailLanguageOS
DigitalOutput Visual Studio GUI C# Windows Download
DigitalOutput JavaScript Browser Download
DigitalOutput Multi-Channel Example JavaScript Browser Download
DigitalOutput Objective-C macOS Download
DigitalOutput Swift macOS Download
DigitalOutput Swift iOS Download
DigitalOutput Visual Basic .NET Windows Download
DigitalOutput Max/MSP Multiple Download

Product History

Date Board Revision Device Version Comment
March 20100100Product Release
May 20110A101getLabelString fix for labels > 7 characters
January 2013 Product Discontinued. Succeeded by the 1032 - PhidgetLED Advanced. The main improvement of the 1032 is the ability to set the current limit of each channel separately.


Getting Started

Welcome to the 1031 user guide! In order to get started, make sure you have the following hardware on hand:


Next, you will need to connect the pieces:

1031 0 Connecting The Hardware.jpg
  1. Connect the power supply to the barrel jack. If your power supply does not have a jack, you can connect the wires to the power terminal beside it, making sure the polarity is correct.
  2. Connect LEDs to the PhidgetLED's outputs. You can slide the pins of an LED into the connector (short end to a black wire, and the long end to the red wire beside it), or you can cut the LED cable in half and solder the LED on.
  3. Connect the PhidgetLED to your computer using the USB cable.


Now that you have everything together, let's start using the 1031!


Using the 1031

Phidget Control Panel

In order to demonstrate the functionality of the 1031, the Phidget Control Panel running on a Windows machine will be used.


The Phidget Control Panel is available for use on both macOS and Windows machines.

Windows

To open the Phidget Control Panel on Windows, find the Ph.jpg icon in the taskbar. If it is not there, open up the start menu and search for Phidget Control Panel

Windows PhidgetTaskbar.PNG

macOS

To open the Phidget Control Panel on macOS, open Finder and navigate to the Phidget Control Panel in the Applications list. Double click on the Ph.jpg icon to bring up the Phidget Control Panel.


For more information, take a look at the getting started guide for your operating system:


Linux users can follow the getting started with Linux guide and continue reading here for more information about the 1031.

First Look

After plugging the 1031 into your computer and opening the Phidget Control Panel, you will see something like this:

1031 Panel.jpg


The Phidget Control Panel will list all connected Phidgets and associated objects, as well as the following information:

  • Serial number: allows you to differentiate between similar Phidgets.
  • Channel: allows you to differentiate between similar objects on a Phidget.
  • Version number: corresponds to the firmware version your Phidget is running. If your Phidget is listed in red, your firmware is out of date. Update the firmware by double-clicking the entry.


The Phidget Control Panel can also be used to test your device. Double-clicking on an object will open an example.

Digital Output (LED)

Double-click on a Digital Output object, labelled LED Driver, in order to run the example:

1031 DigitalOutputLED Example.jpg


General information about the selected object will be displayed at the top of the window. You can also experiment with the following functionality:

  • From the Forward Voltage drop-down menu, select the appropriate voltage for your LED. It is recommended to set the forward voltage to the first setting above the maximum voltage specified by your LED's datasheet.
  • Use the Current Limit slider to set an appropriate limit for your LED. The current limit will be specified in your LED's datasheet.
  • Use the large button to toggle power to the LED.
  • Use the Duty Cycle slider to precisely control the amount of power supplied to the LED.


Finding The Addressing Information

Before you can access the device in your own code, and from our examples, you'll need to take note of the addressing parameters for your Phidget. These will indicate how the Phidget is physically connected to your application. For simplicity, these parameters can be found by clicking the button at the top of the Control Panel example for that Phidget.

The locate Phidget button is found in the device information box

In the Addressing Information window, the section above the line displays information you will need to connect to your Phidget from any application. In particular, note the Channel Class field as this will be the API you will need to use with your Phidget, and the type of example you should use to get started with it. The section below the line provides information about the network the Phidget is connected on if it is attached remotely. Keep track of these parameters moving forward, as you will need them once you start running our examples or your own code.

All the information you need to address your Phidget

Using Your Own Program

You are now ready to start writing your own code for the device. The best way to do that is to start from our Code Samples.

Select your programming language of choice from the drop-down list to get an example for your device. You can use the options provided to further customize the example to best suit your needs.

Code Sample Choose Language.png


Once you have your example, you will need to follow the instructions on the page for your programming language to get it running. To find these instructions, select your programming language from the Programming Languages page.

Technical Details

General

The 1031 uses four controller chips that allow you to vary the current and voltage supplied to each channel. It does not use pulse-width modulation, another common control method for LEDs.

Multiple LEDs on a Single Channel

You can have multiple LEDs hooked up to a single channel on the 1031, (for example, a short string of LEDs) to reduce the amount of wiring, although keep in mind that you'll lose control of the individual lights, and can only toggle or dim the entire string. When using multiple LEDs on a single channel, you'll need to increase the voltage limit for that channel. If the LEDs are too dim at the maximum voltage, you should spread them out to other channels.

High-Current Considerations

If you're using high-current LEDs, you should spread your load evenly across the board to avoid having one of the controller chips overheat. There are four controller chips, each controlling the channels on a quarter of the board.

Controller Channels
1 0, 1, 2, 3, 4, 5, 6, 7, 24, 25, 26, 27, 28, 29, 30, 31
2 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23
3 32, 33, 34, 35, 36, 37, 38, 39, 56, 57, 58, 59, 60, 61, 62, 63
4 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53, 54, 55

Board Connector Diagram

1031 0 Connector Drawing.jpg


The connector used on the 1031 LED board is a Molex 70543-0003. The mating connector used on our LED cables is the Molex 50-57-9404.

Further Reading

For more information, take a look at the LED Guide.

What to do Next

  • Programming Languages - Find your preferred programming language here and learn how to write your own code with Phidgets!
  • Phidget Programming Basics - Once you have set up Phidgets to work with your programming environment, we recommend you read our page on to learn the fundamentals of programming with Phidgets.


Software Objects

Channel NameAPIChannel
LED Driver DigitalOutput 0 - 63

API
