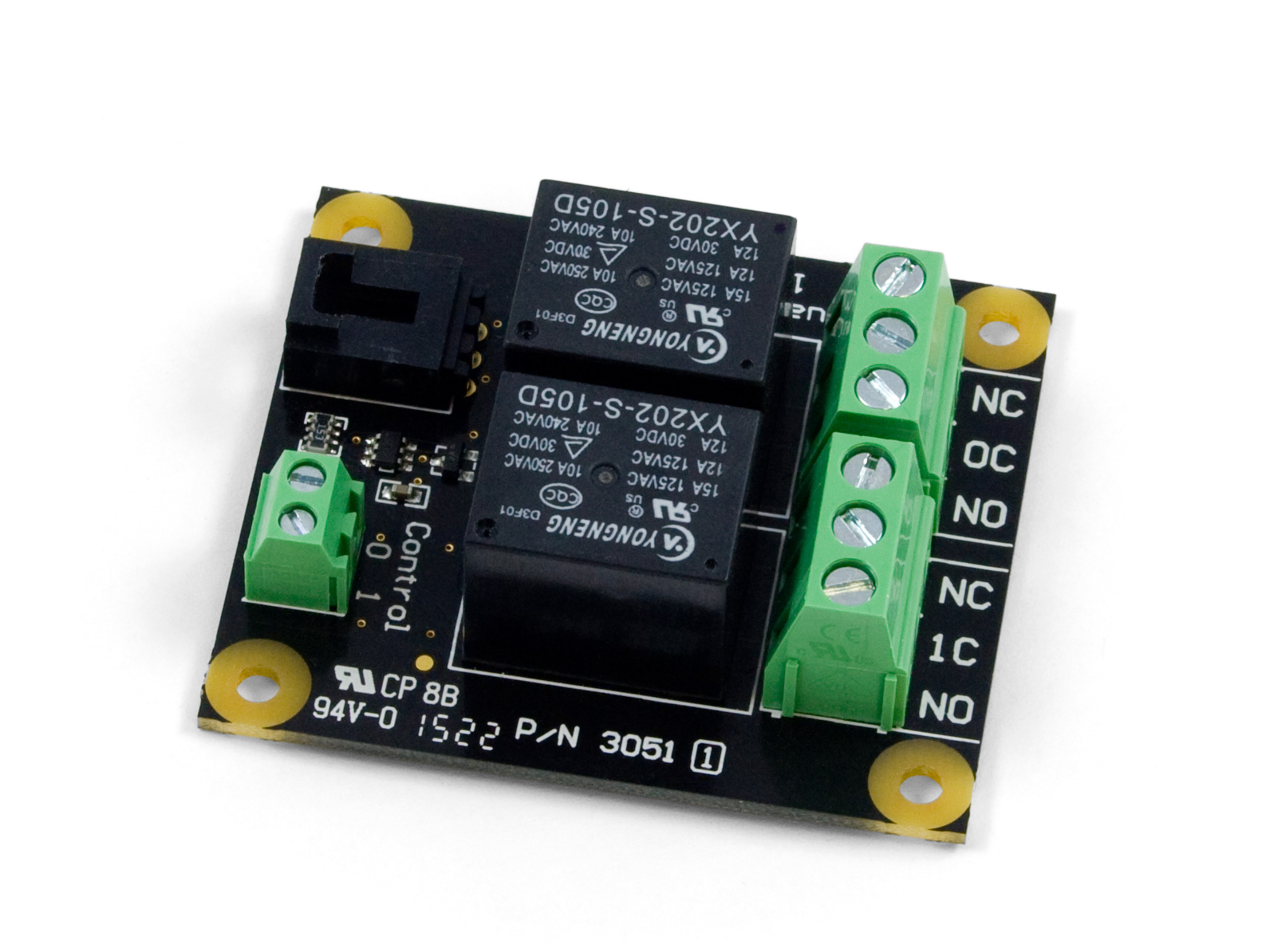

| 3051_1 - Dual Relay Board |
Product Features
- The 3051 contains 2 relays for switching AC or DC power.
- The relays are Single Pole Double Throw (SPDT)
- The relays can switch up to 240 V AC at 10 Amps and 100 V DC at 5 Amps.
- Powered by any device with an Analog Input.
- Controlled by any device with a Digital Output.
The Dual Relay Board allows you to control larger loads and devices like AC or DC motors, electromagnets, solenoids, and incandescent light bulbs.
Physical Properties
| Switch Type | SPDT |
| Switching Speed Max | 20 cpm |
| Recommended Wire Size (Control) | 16 - 26 AWG |
| Recommended Wire Size (Load) | 12 - 24 AWG |
| Operating Temperature Min | 0 °C |
| Operating Temperature Max | 70 °C |
Electrical Properties
| Dielectric Strength | 1.5 kV AC |
| Contact Resistance Max | 100 mΩ |
| Load Voltage Max (DC) | 100 V DC |
| Load Voltage Max (AC) | 240 V AC |
| Load Current Min | 100 mA |
| Load Current Max (DC) | 5 A |
| Load Current Max (AC) | 10 A |
| Turn-on Time Max | 10 ms |
| Turn-off Time Max | 10 ms |
Board
| Current Consumption Min | 14 mA |
| Current Consumption Max | 180 mA |
| Supply Voltage Min | 3.3 V DC |
| Supply Voltage Max | 12 V DC |

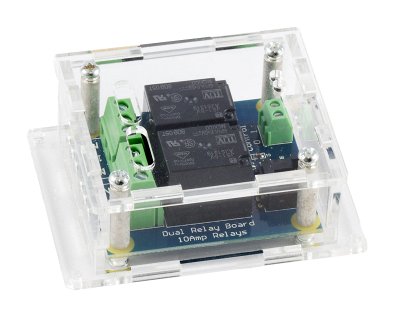

You can protect your board by purchasing the 3820 - Acrylic Enclosure for the 3051.
Note: All relay contacts will slowly oxidize over time, depending on their construction. When the relay is switched, a certain amount of electricity is required to break through the oxide layer. The relays on the 0/0/4 have a minimum switching current of 100mA @ 5VDC, and therefore are not suitable for switching signals.
If you are looking for a product to do signal switching see 1017 PhidgetInterfaceKit 0/0/8.
We also have a 4-Relay board that can plug directly into your PC. See the 1014 – PhidgetInterfaceKit 0/0/4.
