|1014_2 - PhidgetInterfaceKit 0/0/4|
- 4 Relay Outputs for switching AC or DC power
- Rated at 250VAC, 10 Amps or 100VDC, 5 Amps
- Connects directly to a computer’s USB port

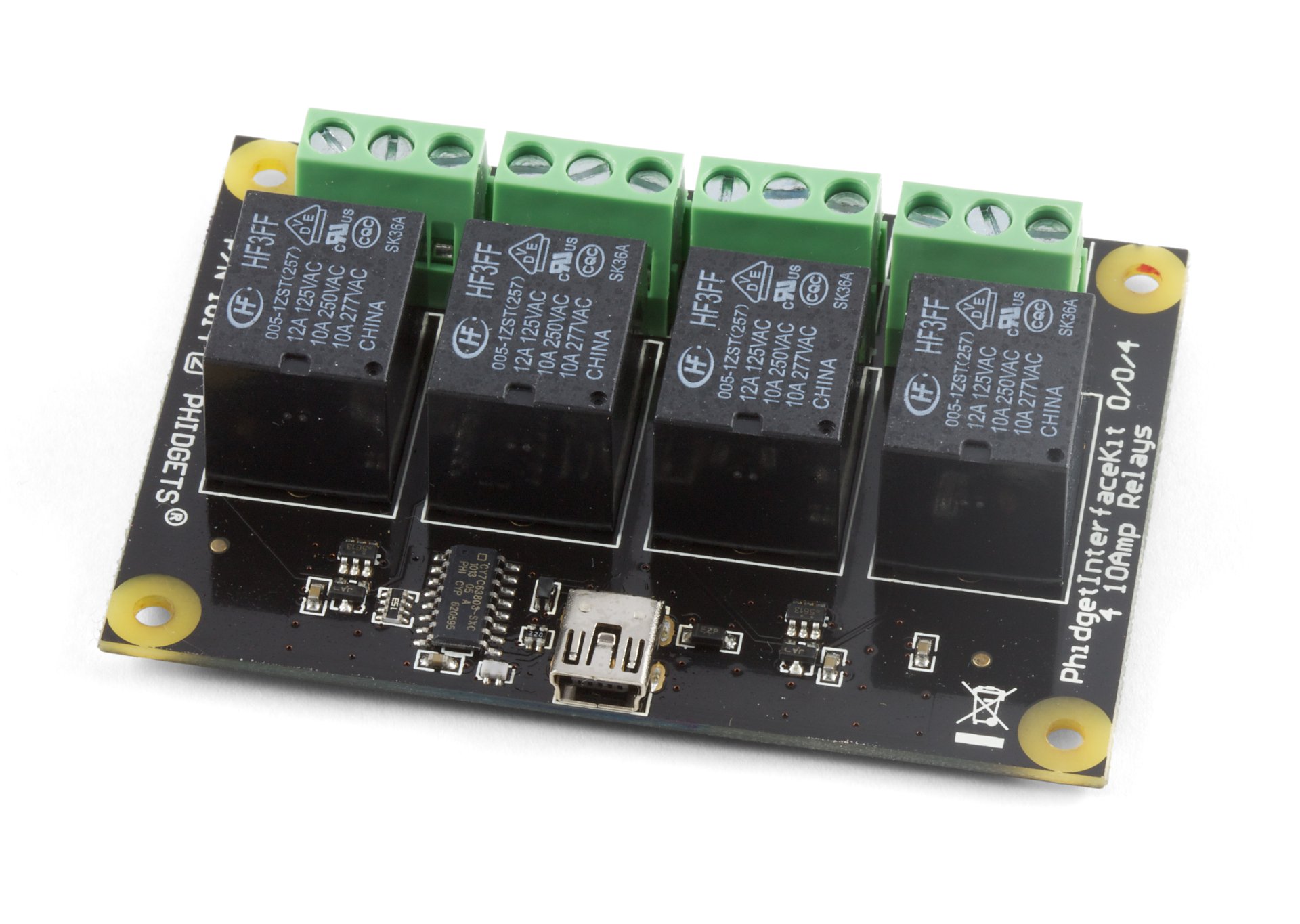

The PhidgetInterfaceKit 0/0/4 Provides a convenient way to interface your PC with various higher-voltage devices such as incandescent bulbs, high-power relays, and motors
The 1014 contains 4 Relay Outputs for switching AC or DC power; the relays are Single Pole Double Throw (SPDT).
|Switching Speed Max||20 cpm|
|Recommended Wire Size||12 - 24 AWG|
|Operating Temperature Min||0 °C|
|Operating Temperature Max||70 °C|
|Dielectric Strength||1.5 kV AC|
|Contact Resistance Max||120 mΩ|
|Load Voltage Max (DC)||100 V DC|
|Load Voltage Max (AC)||250 V AC|
|Load Current Min||100 mA|
|Load Current Max (DC)||5 A|
|Load Current Max (AC)||10 A|
|Turn-on Time Max||10 ms|
|Turn-off Time Max||10 ms|
|Current Consumption Min||14 mA|
|Current Consumption Max||300 mA|
|USB Speed||Low Speed|

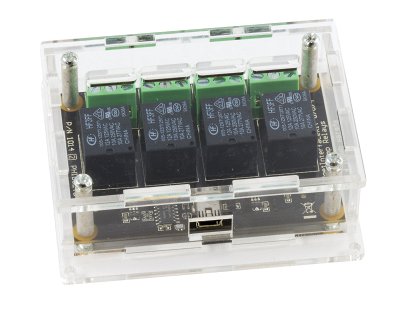

You can protect your board by using the 3802 - Acrylic Enclosure for the 1014 .
|All relay contacts will slowly oxidize over time, depending on their construction. When the relay is switched, a certain amount of electricity is required to break through the oxide layer. The relays on the 0/0/4 have a minimum switching current of 100mA @ 5VDC, and therefore are not suitable for switching signals.|
If you are looking for a product to do signal switching see the 1017 - PhidgetInterfaceKit 0/0/8.
If you already have a 1018 – PhidgetInterfaceKit 8/8/8 you might want to have a look at the 3051 – Dual Relay Board and save yourself some money.
- A 3018 - Mini-USB cable 180cm
- A Hardware mounting kit (4 nuts and bolts, 4 plastic spacers)
- 1014_0 - PhidgetInterfaceKit 0/0/4 Board Revision 0
- 1014_1 - PhidgetInterfaceKit 0/0/4 Board Revision 1
