3509_0 - CE-VZ02-32MS2-0.5 DC Voltage Sensor 0-200V
Quantity Price
1$115.00
5$110.40
10$106.95
25$103.50
100$100.05
In Stock
Qty: 2
ROHS

Product Features

Product Description

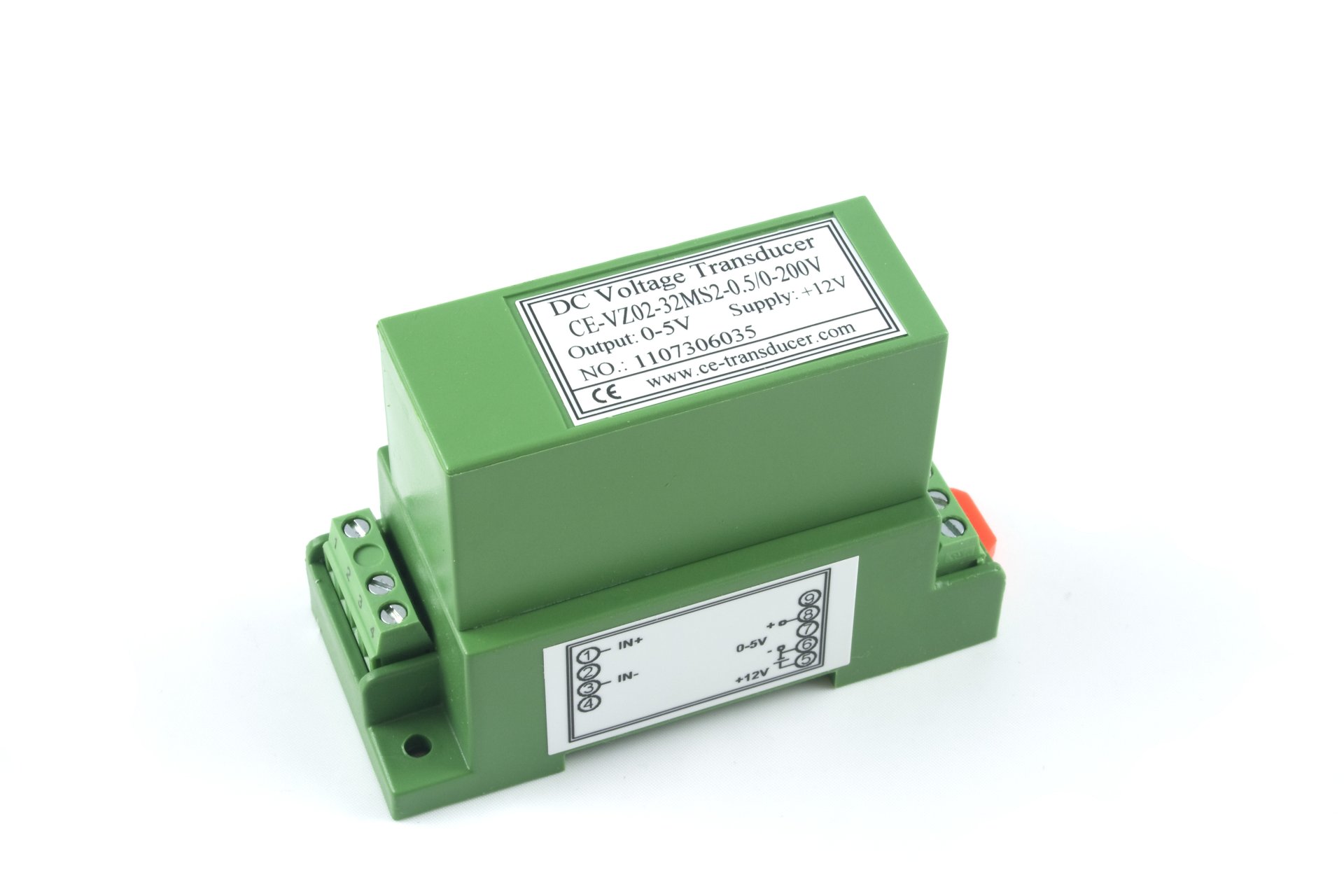

This DC Voltage sensor measures DC voltage up to 200V. Powered by an external 12VDC power supply, the DC Voltage Sensor provides a 0 to 5VDC analog signal that is linearly proportional to the voltage measured at the terminal blocks.

The DC Voltage Sensor can easily be mounted using the screw holes, or on a 35mm wide DIN rail for quick installation. The terminal blocks accommodate conductors of up to AWG #16.

The voltage sensor connects to an analog input on Phidgets I/O boards. The formula to translate the SensorValue into Voltage is:

V = SensorValue * 0.2


Product Specifications

Sensor Properties

Sensor TypeVoltage (DC)
Sensor Output TypeNon-Ratiometric
Input Voltage Min (DC)0 V DC
Input Voltage Max (DC)200 V DC
Measurement Error Max0.5 %
Sensor Response Time Max400 ms

Electrical Properties

Supply Voltage Min12 V DC
Supply Voltage Max12 V DC
Current Consumption Max4.2 mA
Isolation Voltage (DC)2.5 kV DC
Output Voltage Min0 V DC
Output Voltage Max5 V DC

Physical Properties

Recommended Wire Size12 - 24 AWG
Operating Temperature Min0 °C
Operating Temperature Max50 °C


Recommended Power Supplies


In order to use one of these power supplies with this sensor, you must cut the small plug from the end of the power supply and connect the wires directly into the sensor. You can also use a 3031 – Female Pigtail.



Resources

Connection

This sensor connects to any device with an Analog Input.

You can use the 3002 - Sensor Cable 60cm or the 3004 - Sensor Cable 350cm to connect the DC Voltage Sensor to your Phidget. Just snip off the connector from one end of the sensor cable and connect the white wire to the terminal marked with an 8, and the black wire to the terminal marked with a 6. The red wire is not used. You can also use a 3031 – Female Pigtail.

This is how you connect the 3509 to a Phidget Board that does not have 12V power supply, such as the 1018 or 1203, using a Sensor Cable.

  • Connect the Power Supply +12V wire (the wire with the white line) to the voltage sensor terminal 5 (+12V).
  • Connect the Power Supply Ground wire and the Analog Sensor Cable Black wire to the voltage sensor terminal 6 (-).
  • Connect the sensor cable white wire to the voltage sensor terminal 8 (+).
  • Connect the positive wire from your voltage source to the voltage sensor terminal 1 (IN+).
  • Connect the ground wire from your voltage source to the voltage sensor terminal 3 (IN-).
Connecting
Connecting

For boards that have power input, such as the 1019 or the 1072, if the supplied power is 12V, then the + terminal block on the Phidget Board can be connected to the voltage sensor terminal 5 (+12V), and the G terminal block on the Phidget Board can be connected to the sensor terminal 6 (-).
