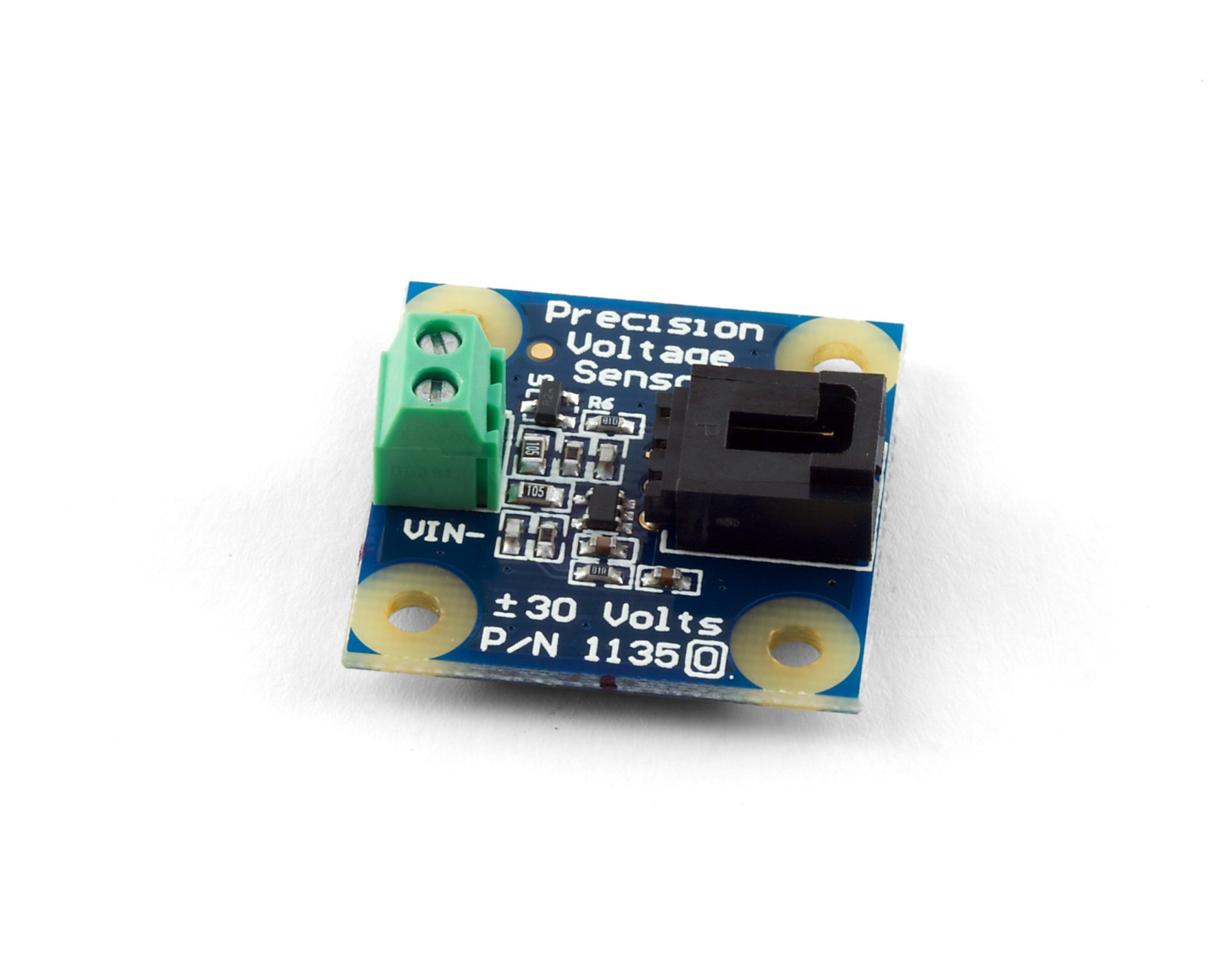

1135_0 - Precision Voltage Sensor
Quantity Price
1$19.00
5$18.25
10$17.70
25$17.10
100$16.55
In Stock
Qty: 1000+
ROHS

Product Features


This voltage sensor measures ±30V DC and connects to an analog input.
Product Description

The Voltage Sensor measures the differential voltage between the input terminals and outputs the difference proportionally. The maximum differential voltage that can be measured accurately is ±30V.



Product Specifications

Sensor Properties

Sensor TypeVoltage (DC)
Sensor Output TypeNon-Ratiometric
Voltage Difference Max± 30 V DC
Relative Input Voltage Max± 40 V DC
Voltage Resolution73 mV DC
Measurement Error Max2 %
Sensor Response Time Max10 ms
Voltage Offset Max± 100 mV DC

Electrical Properties

Supply Voltage5 V DC
Current Consumption Max3.6 mA
Sensor Input Impedance1 MΩ
Output Voltage Min0 V DC
Output Voltage Max5 V DC

Physical Properties

Recommended Wire Size16 - 26 AWG
Operating Temperature Min-40 °C
Operating Temperature Max85 °C

Code Samples For This Product

View Live DownloadC# (Windows)
