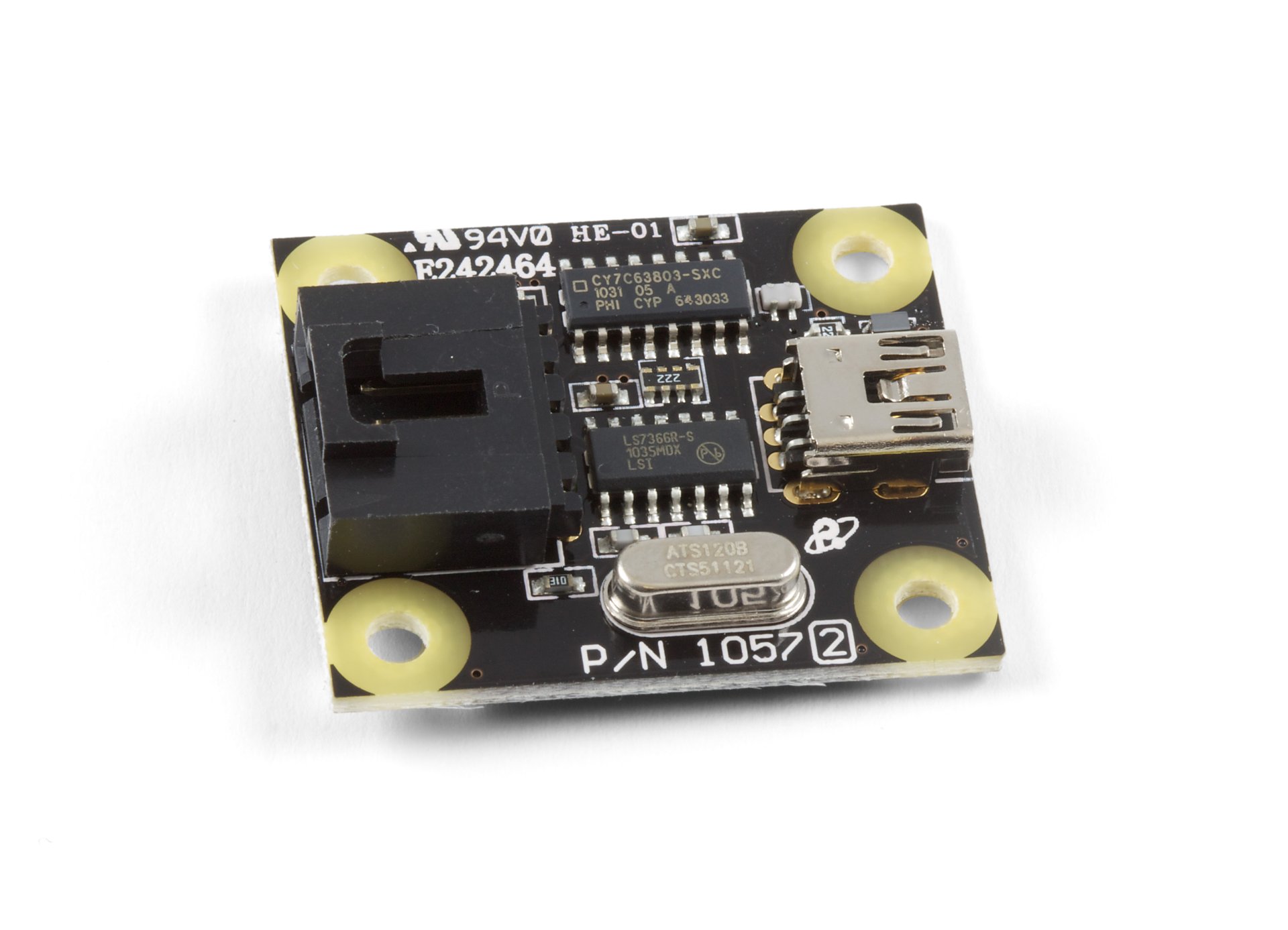

| 1057_2 - PhidgetEncoder HighSpeed |
Product Features
- Connects to any typical two-bit optical encoder.
- Returns up to 2,000,000 pulses per second.
- Can be used as an accurate human input device.
- Connects directly to a computer’s USB port.
Product Description
The PhidgetEncoder HighSpeed connects to any typical two-bit optical encoder and can return up to 2,000,000 pulses (that is, 500,000 full quadrature cycles) per second. Specifically it reads a standard incremental non-differential TTL encoder.
The 1057 can be used to measure shaft speed or as a very accurate human input device. If you just need a simple human input device have a look at the 1052- PhidgetEncoder.
With it you can:
- Detect changes in incremental position
- Easily track changes with respect to time
Related Products
If you need an encoder have a look at our:
Resources
Previous Versions of the 1057
Product Specifications
Encoder Interface
| Number of Encoder Inputs | 1 |
| Count Rate Max | 2E+06 pulses/s |
| Encoder Interface Resolution | x4 |
| Update Rate | 125 samples/s |
| Time Resolution | 1 ms |
| Encoder Input Low Voltage Max | 800 mV DC |
| Encoder Input High Voltage Min | 3.6 V DC |
| Encoder Pull-up Resistance | 2.2 kΩ |
| USB Speed | Low Speed |
Electrical Properties
| Current Consumption Max | 100 mA |
| Current Consumption Min | 20 mA |
| USB Voltage Min | 4.8 V DC |
| USB Voltage Max | 5.3 V DC |
Physical Properties
| Operating Temperature Min | 0 °C |
| Operating Temperature Max | 70 °C |
Comes packaged with
- A 3018 - Mini-USB Cable 180cm
- A 3019 - HighSpeed Encoder Cable 50cm
- A Hardware mounting kit (4 nuts and bolts, 4 plastic spacers)
Enclosure
You can protect your board by purchasing the 3815 - Acrylic Enclosure for the 1057.
