TRM4312_0 - Jaw Coupling Half 0.25" Series 12
Quantity Price
1$2.80
5$2.70
10$2.60
25$2.50
100$2.45
In Stock
Qty: 53
ROHS

Product Features


This aluminium jaw coupling fits a 0.25" shaft and connects to another half coupling with a spider.
Product Description

This jaw type half-coupling can be used to connect a 0.25" shaft to another shaft. It is held in place by two set screws, and fits together with another series 12 jaw coupling of any shaft size with a hard elastomer spider in between. Jaw type couplings are ideal for high-torque applications and applications where shafts of two different sizes need to be coupled. This series of couplers are rated for torques as high as 35 kg·cm and speeds of up to 12000 rpm. If you're having trouble with slipping, you can file a groove into the shaft where the set screws hold it in place. You can also use a Loctite adhesive on the set screws to ensure that they remain in place.

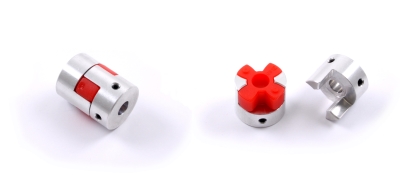

Assembly

This jaw type half-coupling connects to any other series 12 half-coupling with a coupling spider pressed in between. The other half and the spider are both sold separately.

Connection
Product Specifications

Physical Properties

MaterialAluminum
Coupling Rated Torque35.7 kg·cm
Coupling Rated Speed12000 RPM
