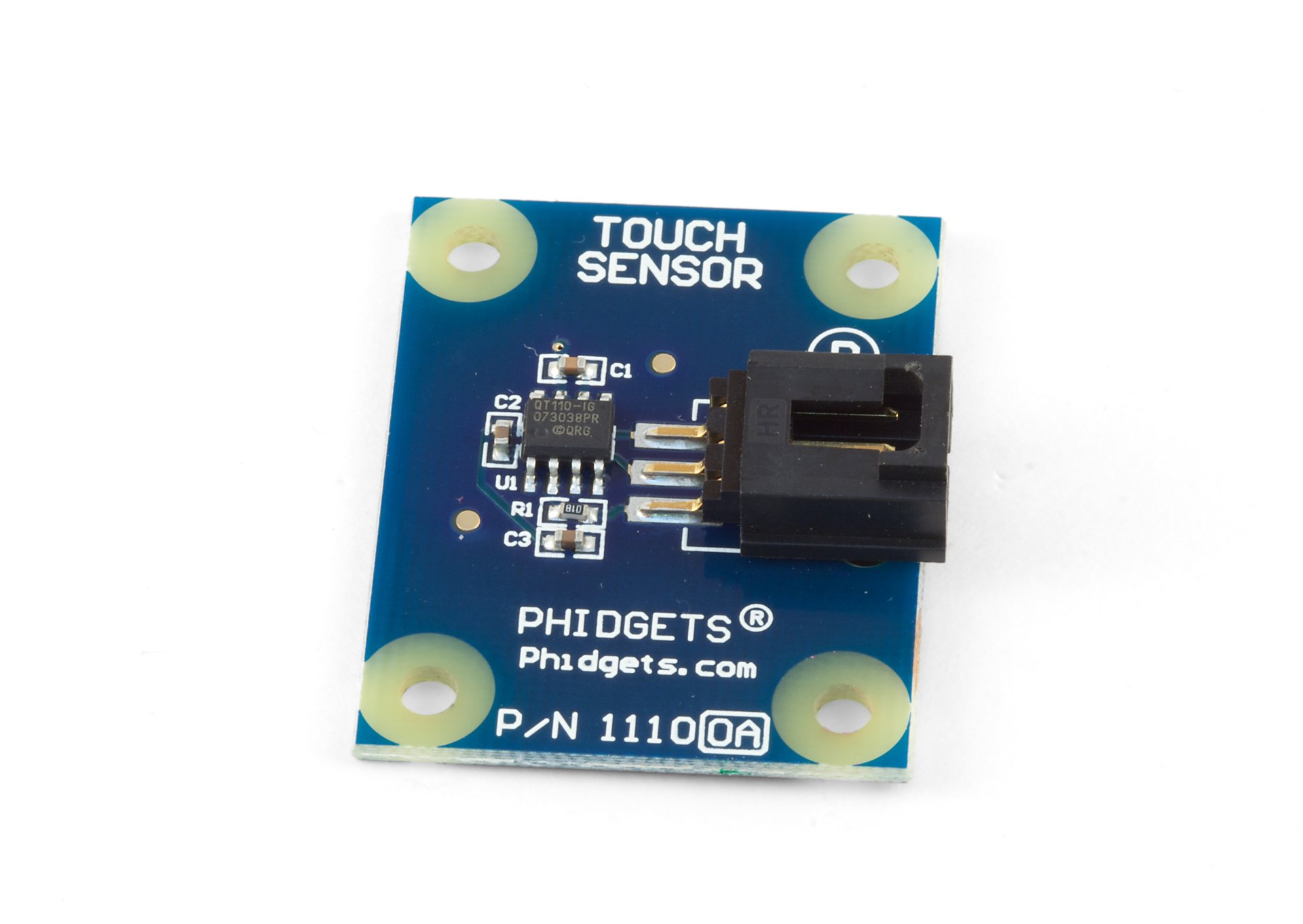

|1110_0 - Touch Sensor - Discontinued|
- Capacitive touch sensor that can detect a touch through plastic, glass, or paper.
- We recommend a material thickness of no more than 1/8”.
- The sensor is Ratiometric.
The 1110 has been replaced by the 1129 – Touch Sensor but is still included in the following kits: 2004, 2006, and 42001.
Please note that the 1129 has significant differences from the 1110. Please refer to the table below for more information.
The 1110 is a capacitive touch sensor and can detect a touch through plastic, glass, or paper. We recommend a material thickness of 1/8”.
This sensor is designed to be 3.3V compatible and can interface with other products as an alternative. For example, the Java based Sentilla Perk includes side ports that are compatible with 3.3V Phidget sensors without any modifications.
|Output Impedance||10K ohms|
|Supply Voltage||3.0VDC to 5.25VDC|
and the 1129 - Touch Sensor
|Sensitivity (Thickness of Material)||1/8"||1/2"|
|Sensor value when Touching||0 (0V)||1000 (5V)|
|Extended Touch Area||YES||YES|
Comes packaged with
This sensor connects to an Analog Input on the:
