| 3819_0 - Acrylic Enclosure for the 1204 |
Product Features
- Fits Board Revision 0
- Protects your board
- Easy to Assemble
- Material: Clear Acrylic
- All you need is a small Phillips screwdriver
Product Description

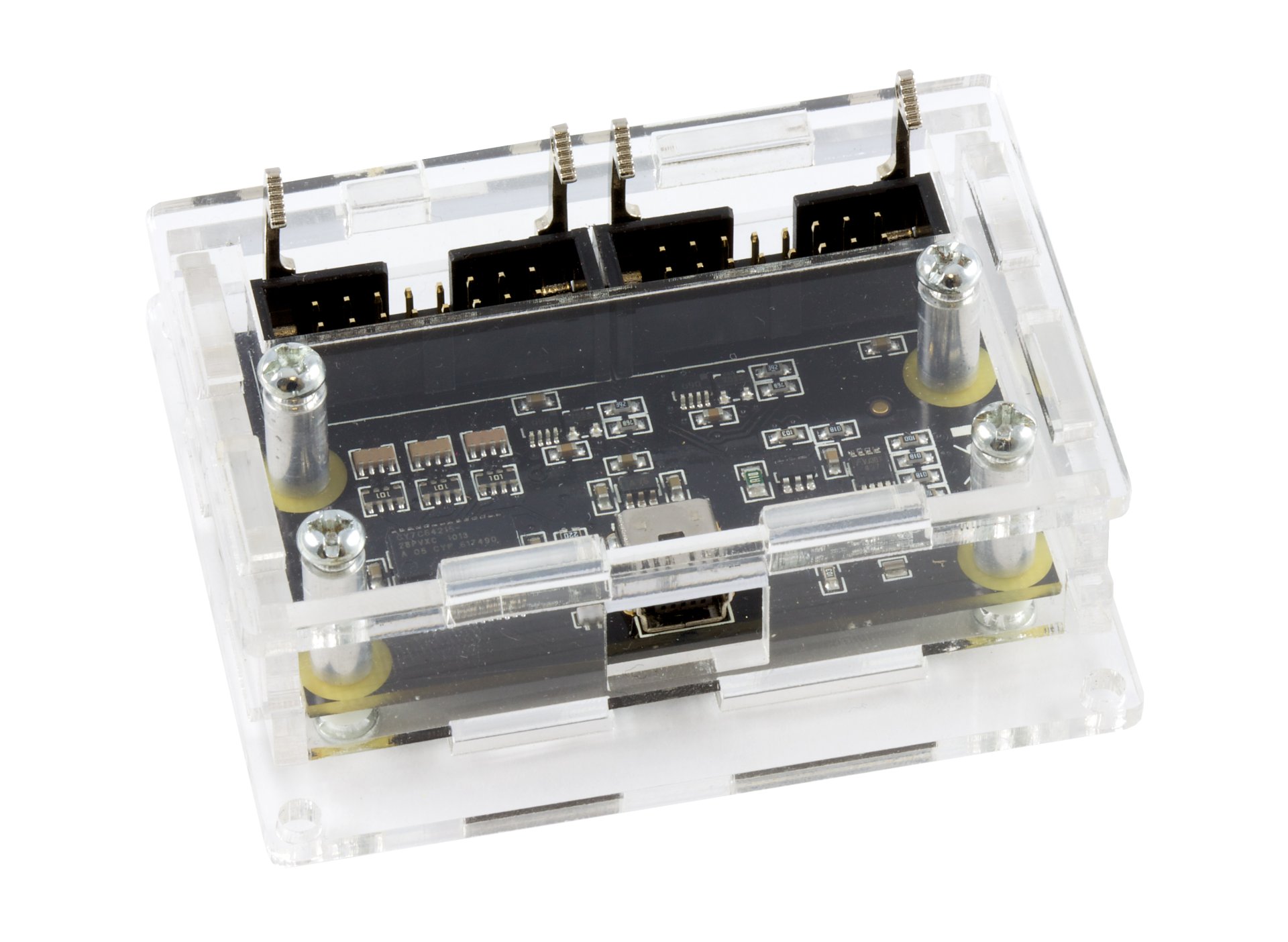

The 3819 Enclosure is designed to protect the Rev 0 version of the 1204 – PhidgetTextLCD Adapter while giving you access to all terminals and connectors through openings in the enclosure.
You can plug and unplug the USB cable, without having to open the enclosure and connect the LCD Cables. You have to disassemble the enclosure, though, to unplug the LCD cables.
Note: The Phidget board is not included with the enclosure and must be purchased separately.
Product Specifications
Physical Properties
| Fits Board Revision | 0 |
| Material | Clear Acrylic |
| Thickness | 3.2 mm |
| IP Rating | 20 |
Package Includes
- 6 clear acrylic pieces
- Mounting Hardware (Nuts, bolts, spacers)
Required Tools
- Small Phillips screwdriver
Resources
Warning
|
Be careful when tightening the mounting screws as too much tension could crack the acrylic. |
