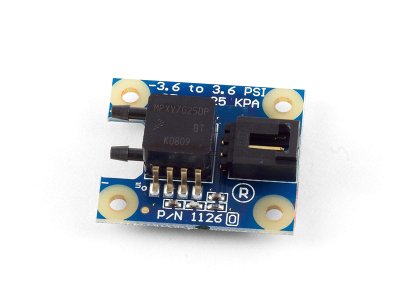

| 1126_0 - Differential Gas Pressure Sensor ± 25kPa |
Product Features
- Measures the pressure difference between two pressure intakes
- Measures both negative and positive pressures
- Pressure range: -3.6 psi (-25 kPa) to +3.6 psi (+25kPa)
- Connects to any device with an Analog Input.
Product Description
The Differential Pressure Sensor is a dual ported gas pressure sensor that measures the pressure difference between the two ports. It can measure both positive and negative pressure from –25kPa to +25 kPa.
Product Specifications
Sensor Properties
| Sensor Type | Gas Pressure (Differential) |
| Sensor Output Type | Ratiometric |
| Pressure Min | -25 kPa |
| Pressure Max | 25 kPa |
| Case Pressure Max | 200 kPa |
| Measurement Error Max | ± 5 % |
| Response Time Max | 1 ms |
Electrical Properties
| Supply Voltage Min | 4.8 V DC |
| Supply Voltage Max | 5.3 V DC |
| Current Consumption Max | 10 mA |
| Output Impedance | 1 kΩ |
| Output Voltage Min | 250 mV DC |
| Output Voltage Max | 4.8 V DC |
Physical Properties
| Operating Temperature Min | 0 °C |
| Operating Temperature Max | 85 °C |
| Recommended Tubing Size | 3 mm |
Comes packaged with
Resources
Warning
|
This sensor is designed to measure the pressure of clean, non-condensing air. Contact with moist air (i.e, human breath), dusty air, or other gases can damage the sensor. |
