| 3616_0 - Flexible LED Strip White (5m) |
Product Features
- 5 meter White LED Strip
- Can be cut in multiples of 3-LED sections
- Self-adhesive backing
- Requires 12V power supply
Product Description

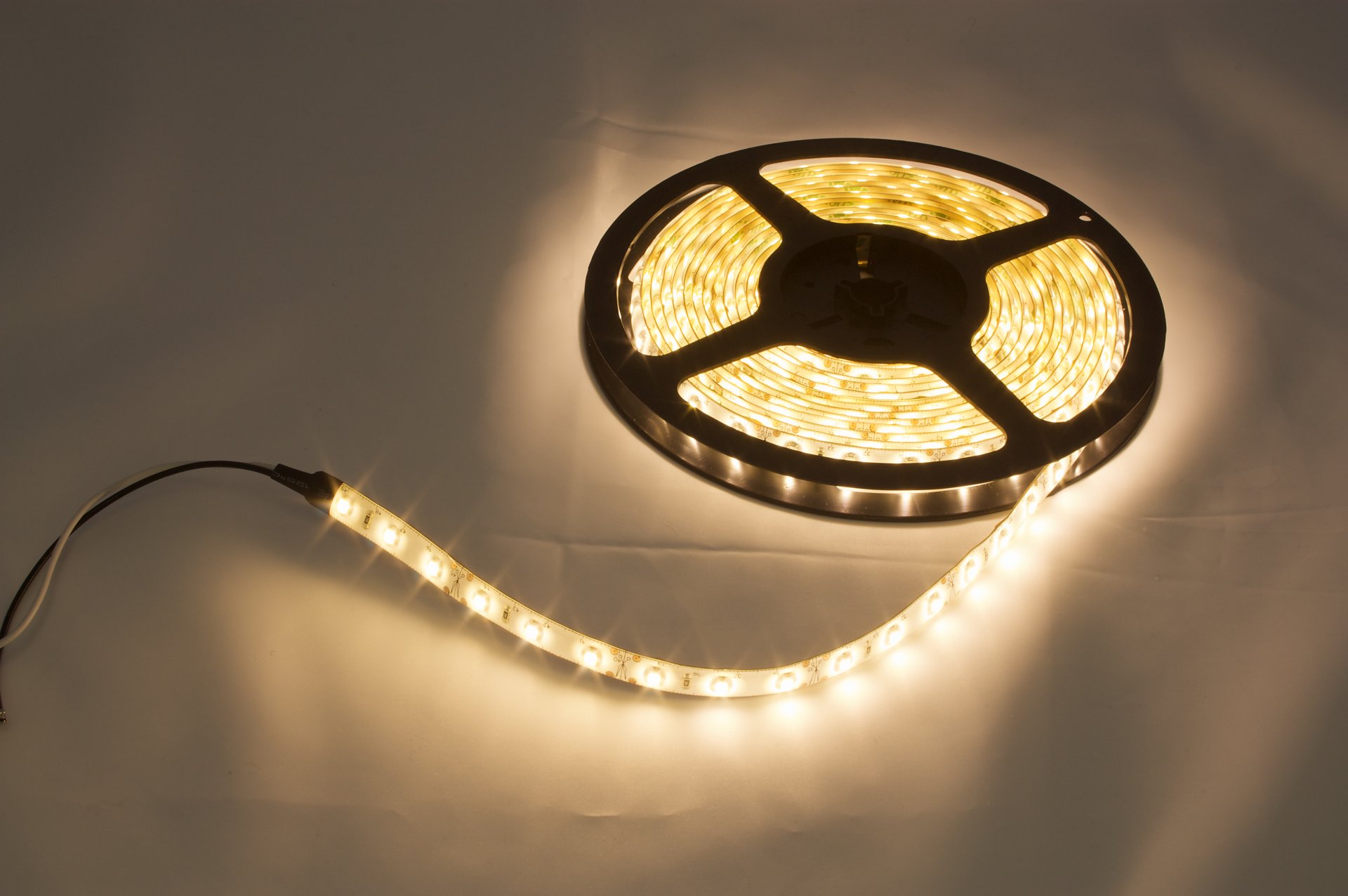

The 3616 is a 5 meter long, 8 mm wide, flexible LED strip which can be cut in multiples of 3-LED sections. The strip contains 300 white LEDs with a light beam of 120°.
The strip requires between 9 to 12 Volts DC and consumes 1.45A when running at 12V and 338mA when running at 9V.
Caution: Running the strip at more than 12V can damage the LEDs.
Product Specifications
Light Properties
| Emitting Color | White |
| Luminous Intensity | 1.5 cd |
| Beam Angle | 120° |
Electrical Properties
| Supply Voltage Min | 9 V DC |
| Supply Voltage Max | 12 V DC |
| Current Consumption Min | 340 mA |
| Current Consumption Max | 1.5 A |
Physical Properties
| Strip Length | 5 m |
| LEDs per Reel | 300 |
Packaging
Comes in an Antistatic pouch containing one 5 meter LED strip.
Connection
The LED strip can be attached to:
- 1012 - PhidgetInterfaceKit 0/16/16
- 1014 - PhidgetInterfaceKit 0/0/4
- 1017 - PhidgetInterfaceKit 0/0/8
- 3051 - Dual Relay Board
- 3052 - SSR Relay Board
- 3053 - Dual SSR Relay Board
For Detailed instructions on how to connect your LED strip to Phidgets, look at the User Guide.
For more information on LEDs, visit the LED Primer.
