| 3612_0 - 5mm Diffused Yellow/Green (Bag of 30) |
Product Features

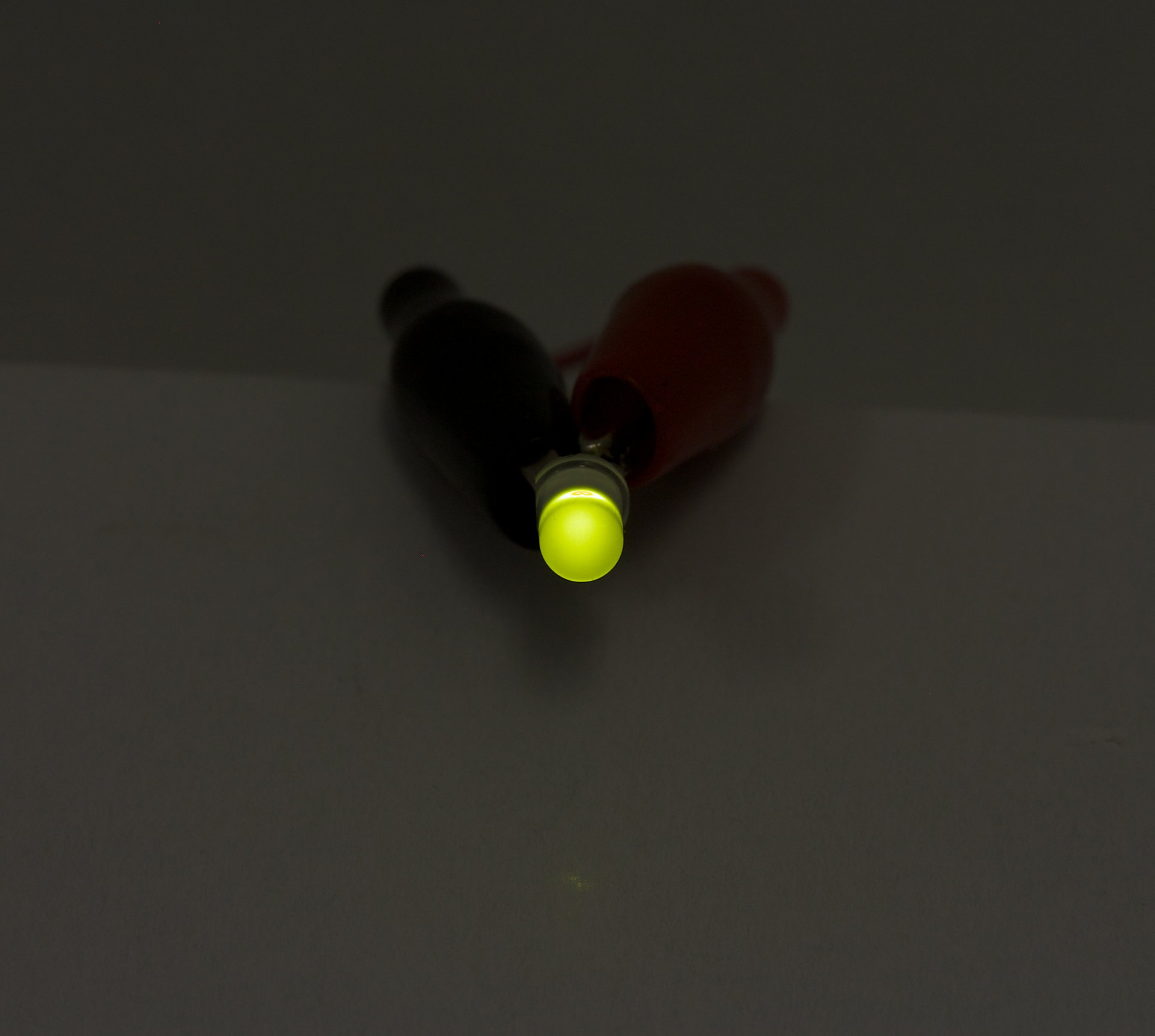

- 5mm Diffused Round Yellow/Green LED
- Great for indicators
- Wide Beam of 40°
- Low light intensity
Product Description
The 3612 is a small LED that has a wide light beam and a pleasant low intensity glow. It's the ideal LED to use for indicators.
Product Specifications
Light Properties
| Emitting Color | Yellow/Green |
| Dominant Wavelength | 570 nm |
| Luminous Intensity | 80 mcd |
| Beam Angle | 40° |
Electrical Properties
| Forward Voltage Min | 1.7 V DC |
| Forward Voltage Max | 2.6 V DC |
| Forward Current | 25 mA |
Packaging
Comes in an Antistatic pouch containing 30 LEDs
Related Products
You can control up to 64 LEDs with:
You can also connect your LEDs to any of the Digital Outputs of:
- 1018 - PhidgetInterfaceKit 8/8/8
- 1019 - PhidgetInterfaceKit 8/8/8 w/6 Port Hub
- 1070 - PhidgetSBC
- 1203 - PhidgetTextLCD
Connection
When connecting to a 1032, use the LED cable and connect the anode (long wire) to the red wire and the cathode (short wire) to the black wire.
When connecting to Digital Outputs, connect the anode (long wire) to the Digital Output and the cathode (short wire) to Ground.
For more information on LEDs, visit the LED Primer.
