| 3610_0 - 5mm RBG Super Flux (Bag of 5) |
Product Features
- 5mm RGB Super Flux LED
- Very bright
- Wide Beam of 90°

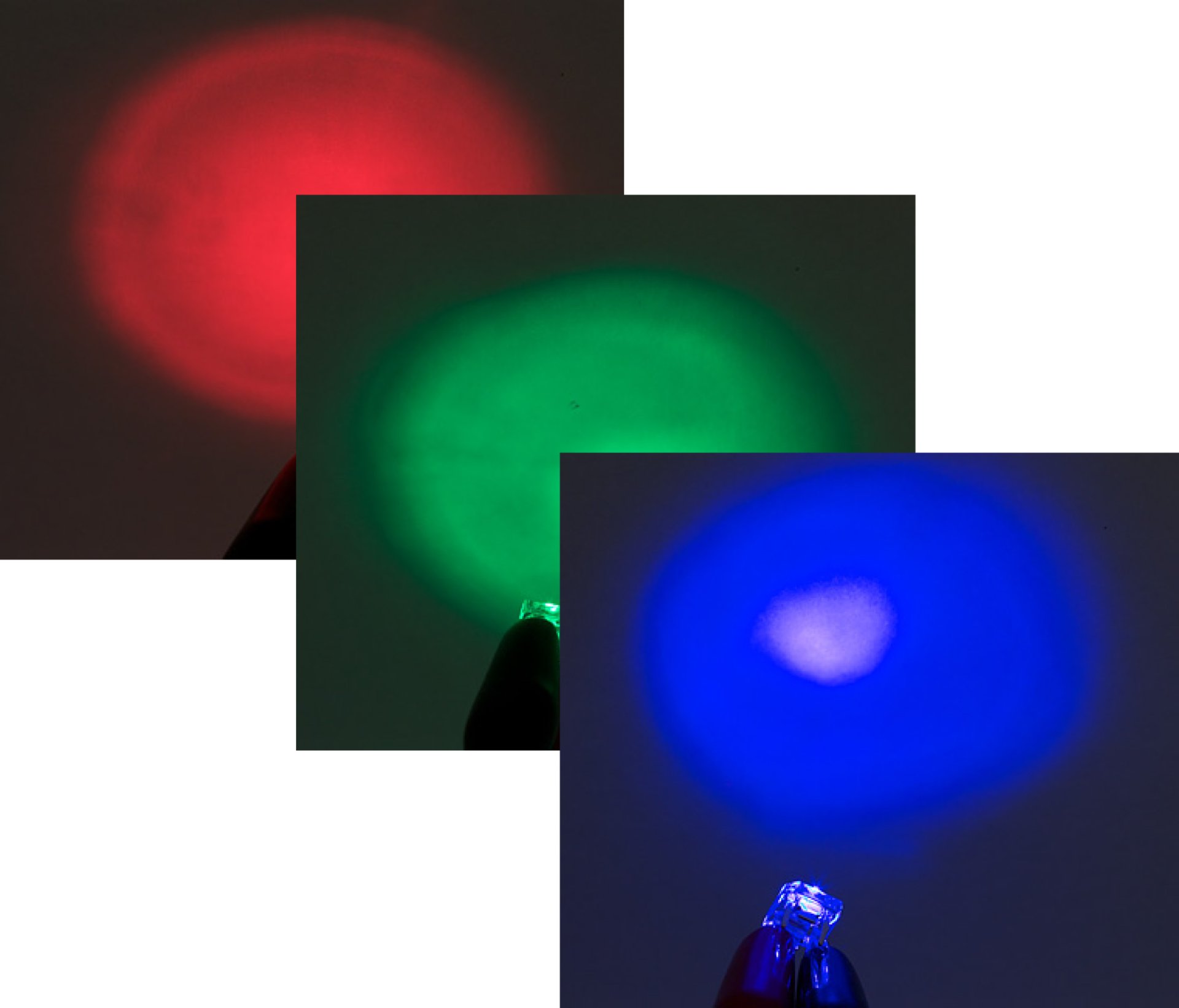

The 3610 LED is a square of brightness with four times the capacity of a regular LED and has a very wide light beam of 90°. Because of its brightness it is not recommended as an indicator light.
Light Properties (Red LED)
| Emitting Color | Red |
| Dominant Wavelength | 625 nm |
| Luminous Intensity | 1.3 cd |
| Forward Voltage Min | 2 V DC |
| Forward Voltage Max | 2.2 V DC |
| Beam Angle | 90° |
Light Properties (Green LED)
| Emitting Color | Green |
| Dominant Wavelength | 520 m |
| Luminous Intensity | 2.5 cd |
| Forward Voltage Min | 3 V DC |
| Forward Voltage Max | 3.2 V DC |
| Beam Angle | 90° |
Light Properties (Blue LED)
| Emitting Color | Blue |
| Dominant Wavelength | 467 m |
| Luminous Intensity | 1.1 cd |
| Forward Voltage Min | 3 V DC |
| Forward Voltage Max | 3.2 V DC |
| Beam Angle | 90° |
Electrical Properties
| Forward Current | (Per color) 20 mA |
Comes in an Antistatic pouch containing 5 LEDs
You can control up to 64 LEDs with:
You can also connect your LEDs to any of the Digital Outputs of:

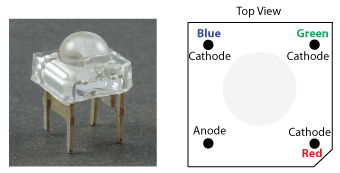

When connecting to a 1032, use the LED cables and connect the anode to the red wire and the three cathodes to three black wires.
When connecting to Digital Outputs, connect the anode to the 5V and the three cathodes to three Digital Outputs.
For more information on LEDs, visit the LED Primer.
Note: When connecting to Digital Outputs, the LED will turn on when the Digital Output is OFF. To turn off the LED you must turn ON the Digital Output.
