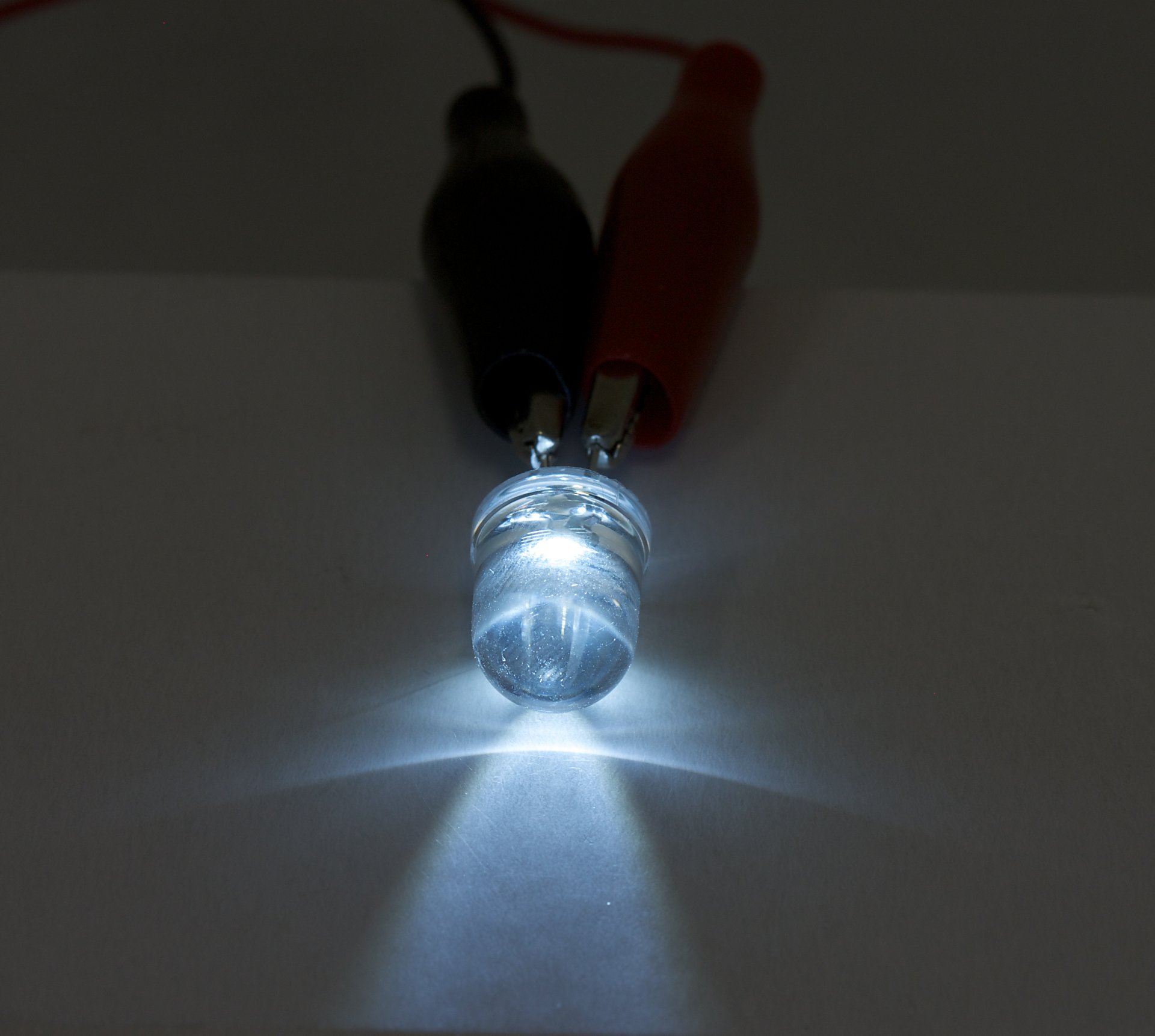

The 3604 is a bright general purpose White LED with a narrow beam. Because of its brightness and narrow beam it is not recommended as an indicator light.
|Luminous Intensity||17.5 cd|
|Color Temperature||8000 K|
|Forward Voltage Min||3 V DC|
|Forward Voltage Max||3.4 V DC|
|Forward Current||20 mA|
Comes in an Antistatic pouch containing 10 LEDs
You can control up to 64 LEDs with:
You can also connect your LEDs to any of the Digital Outputs of:
- 1018 - PhidgetInterfaceKit 8/8/8
- 1019 - PhidgetInterfaceKit 8/8/8 w/6 Port Hub
- 1070 - PhidgetSBC
- 1203 - PhidgetTextLCD
When connecting to a 1032, use the LED cable and connect the anode (long wire) to the red wire and the cathode (short wire) to the black wire.
When connecting to Digital Outputs, connect the anode (long wire) to the Digital Output and the cathode (short wire) to Ground.For more information on LEDs, visit the LED Primer.
