| 3601_0 - 10mm Green LED (Bag of 10) |
Product Features
- 10mm Green LED
- General Purpose LED
- 25° Beam
Product Description

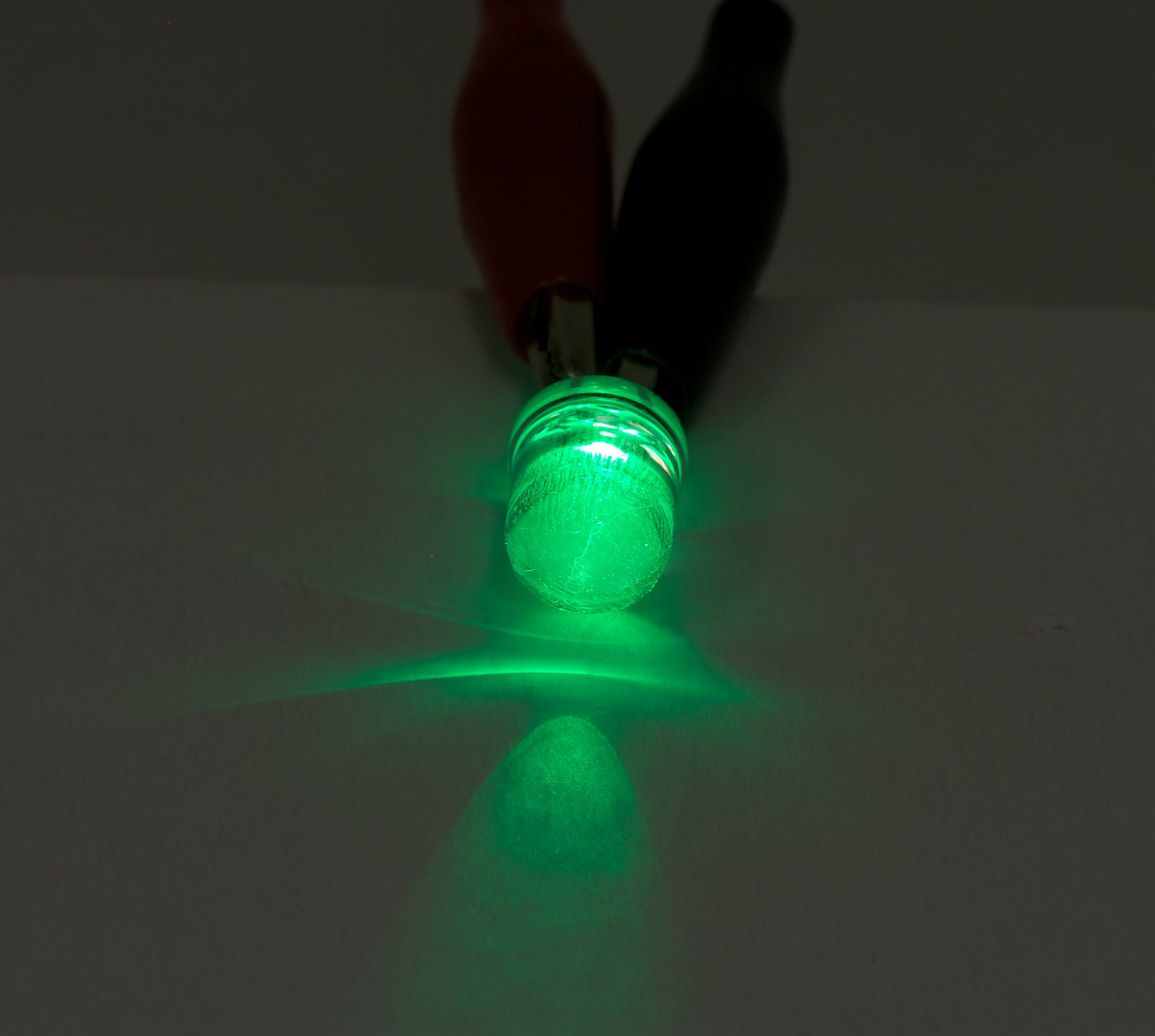

The 3601 is a bright general purpose Green LED with a narrow beam. Because of its brightness and narrow beam it is not recommended as an indicator light.
Product Specifications
Light Properties
| Emitting Color | Green |
| Dominant Wavelength | 520 nm |
| Luminous Intensity | 17.5 cd |
| Beam Angle | 25° |
Electrical Properties
| Forward Voltage Min | 3 V DC |
| Forward Voltage Max | 3.4 V DC |
| Forward Current | 20 mA |
Packaging
Comes in an Antistatic pouch containing 10 LEDs
Related Products
You can control up to 64 LEDs with:
You can also connect your LEDs to any of the Digital Outputs of:
- 1018 - PhidgetInterfaceKit 8/8/8
- 1019 - PhidgetInterfaceKit 8/8/8 w/6 Port Hub
- 1070 - PhidgetSBC
- 1203 - PhidgetTextLCD
Connection
When connecting to a 1032, use the LED cable and connect the anode (long wire) to the red wire and the cathode (short wire) to the black wire.
When connecting to Digital Outputs, connect the anode (long wire) to the Digital Output and the cathode (short wire) to Ground.
For more information on LEDs, visit the LED Primer.
