3600_0 - 10mm Red LED (Bag of 20)
Quantity Price
1$3.00
5$2.90
10$2.80
25$2.70
100$2.65
In Stock
Qty: 123
ROHS

Product Features


Product Description

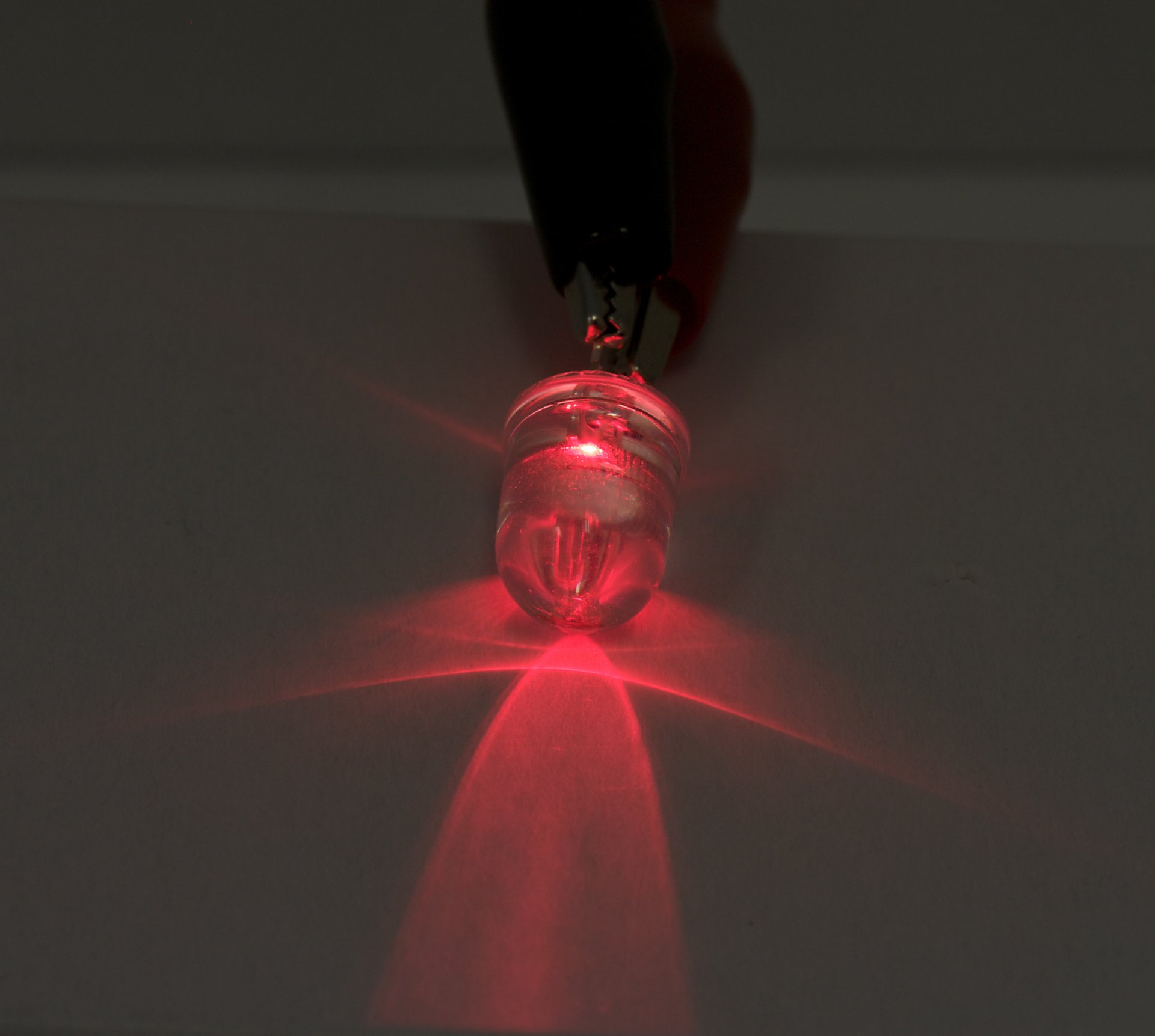

The 3600 is a bright general purpose Red LED with a narrow beam. Because of its brightness and narrow beam it is not recommended as an indicator light.



Product Specifications

Light Properties

Emitting ColorRed
Dominant Wavelength625 nm
Luminous Intensity3.5 cd
Beam Angle25°

Electrical Properties

Forward Voltage Min2 V DC
Forward Voltage Max2.2 V DC
Forward Current20 mA


Packaging

Comes in an Antistatic pouch containing 20 LEDs


Related Products

You can control up to 64 LEDs with:

You can also connect your LEDs to any device with a Digital Output.



Connection

When connecting to a 1032, use the LED cable and connect the anode (long wire) to the red wire and the cathode (short wire) to the black wire.

When connecting to Digital Outputs, connect the anode (long wire) to the Digital Output and the cathode (short wire) to Ground.

For more information on LEDs, visit the LED Primer.
