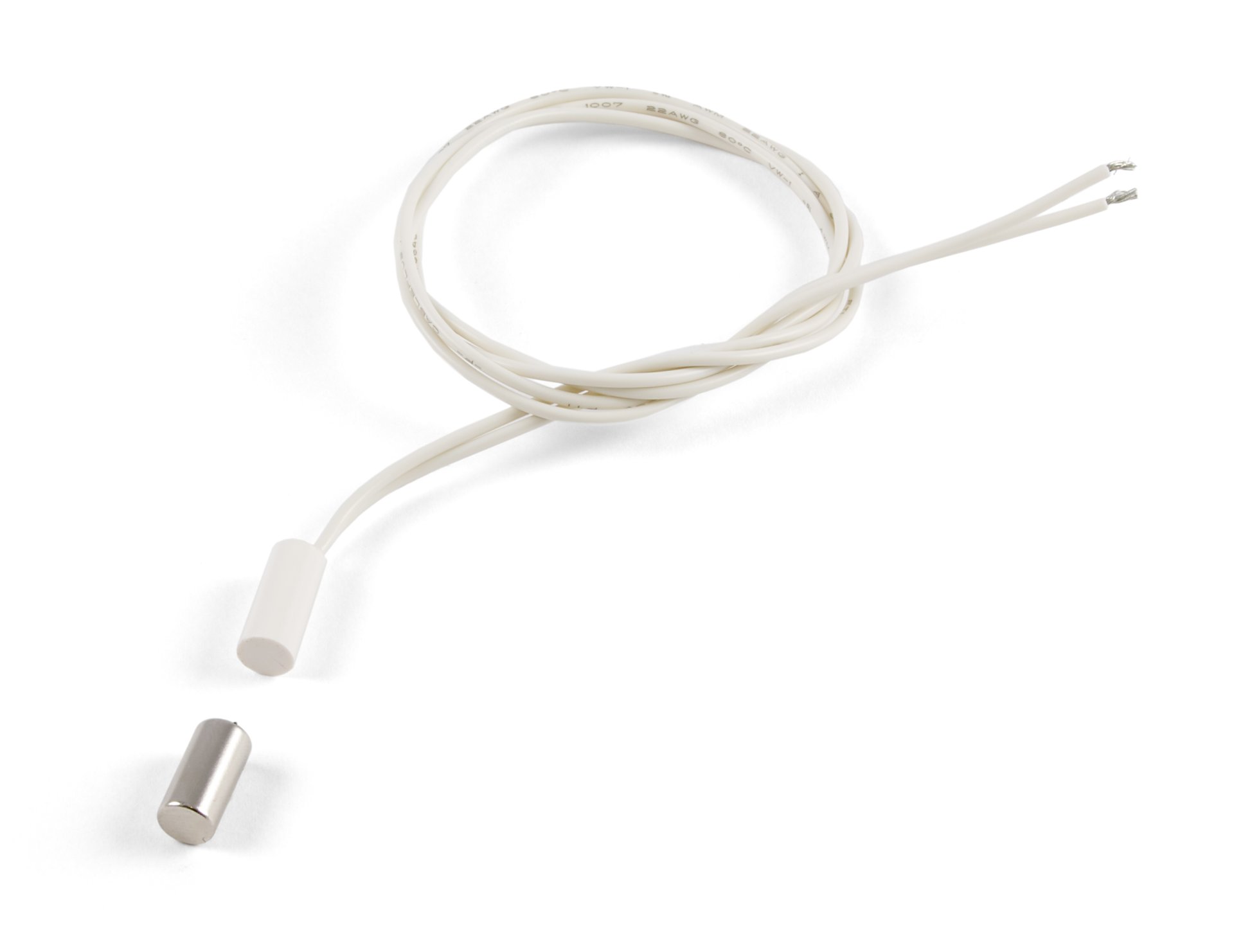

| 3560_0 - Magnetic Contact Switch BR-1014 |
Product Features
- Flush or countersink installation
- Wide Gap, up to 3/4 inch
- 45cm (18") white 22AWG cable
- Comes with a 1/2" rare earth magnet
- Connects to any device with a Digital Input.
Product Description
The 3560 magnetic contact switch is nice and small and is designed for flush or countersink installations.
The switch handles gaps of up to 3/4 inch between the magnet and the switch. The switch will turn the digital input "on" when the magnet is within 3/4" (19 mm) of the switch, and will turn it "off" when the contact is broken by moving the magnet more than 1" away.
Product Specifications
Sensor Properties
| Sensor Type | Proximity (Magnetic) |
| Detecting Distance Max | 19 mm |
| Detection Hysteresis Max | 21 % |
| Sensor Output Switch Type | Normally Open |
Physical Properties
| Cable Length | 450 mm |
| Cable Gauge | 22 AWG |
Electrical Properties
| Switching Current Max | 500 mA |
| Switching Voltage Max (AC) | 100 V AC |
| Switching Voltage Max (DC) | 100 V DC |
Comes packaged with
- 1 Magnet
