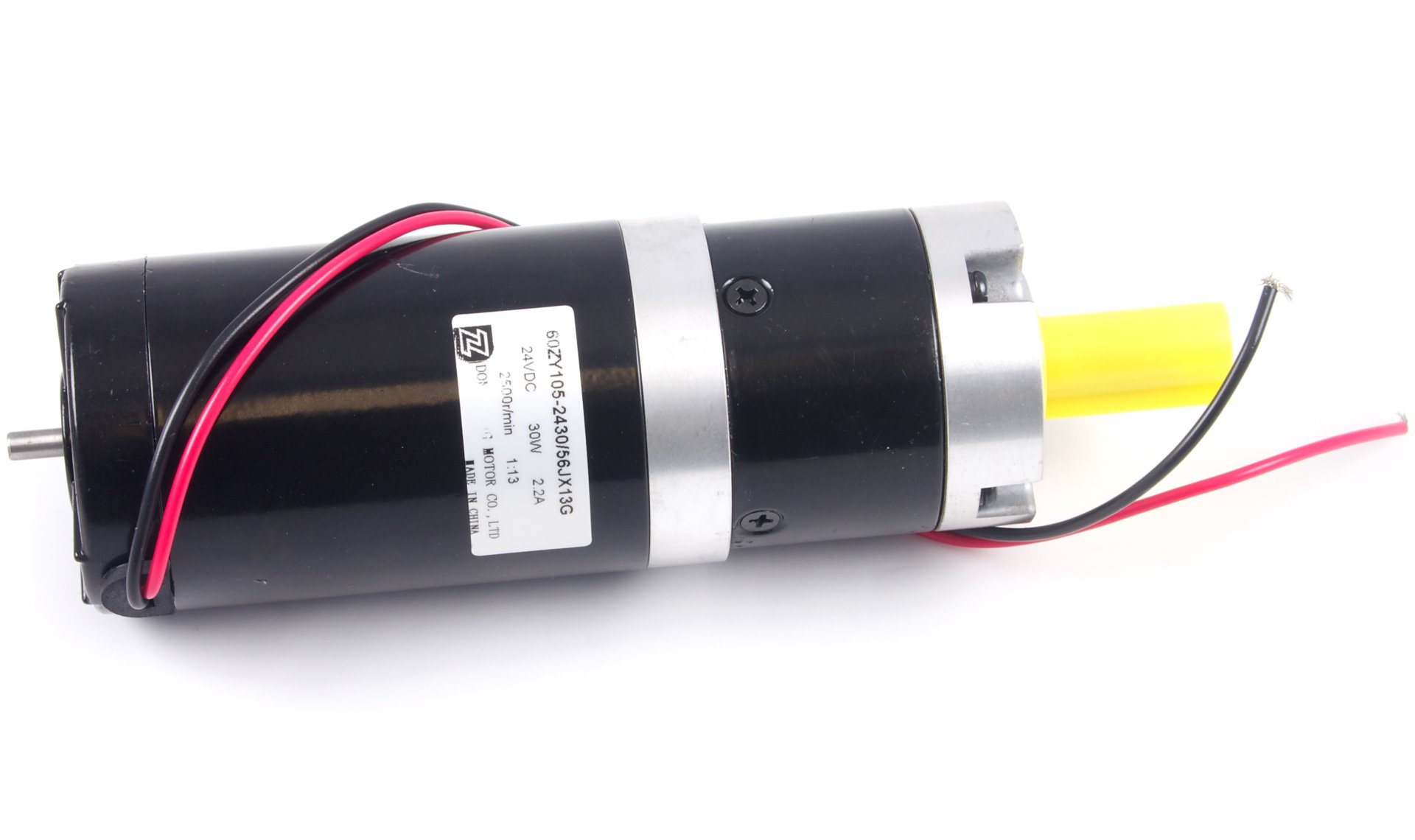

| 3270_0 - 24V/14.2Kg-cm/192RPM 13:1 DC Gear Motor |
Product Features
- High Torque, Good Speed
- Shaft Diameter: 12mm
- 12 24/25 : 1 Gear Reduction
- Rated speed: 192RPM
- Rated Torque: 14.3 Kg-cm
Product Description
The 3270 is a 24 volt gear motor, generating 14.3 Kg-cm of torque at 192 RPM. It's a large motor that provides lots of torque, even at higher speeds.
The planetary gearbox on this motor is more sophisticated than a typical spur gearbox and will provide greater efficiency, higher torque, and quieter motor operation.
Motor Controller and Connection
The 3270 DC motor connects the 1065 - PhidgetMotorControl 1-Motor .
Related Products
- 3270E - 24V/14.2Kg-cm/192RPM 13:1 DC Gear Motor w/ Encoder
- 3269 - 24V/5.1Kg-cm/588RPM 4.25:1 DC Gear Motor
- 3271 - 24V/20.3Kg-cm/139RPM 18:1 DC Gear Motor
- 3272 - 24V/50.9Kg-cm/53RPM 47:1 DC Gear Motor
- 3273 - 24V/82.6Kg-cm/33RPM 76:1 DC Gear Motor
- 3274 - 24V/173.3Kg-cm/15RPM 168:1 DC Gear Motor
Resources
Product Specifications
Motor Properties
| Motor Type | DC Motor |
| Output Power (Mechanical) | 30 W |
| Maximum Speed at Rated Voltage | 192 RPM |
| Rated Torque | 14.3 kg·cm |
| Stall Torque | 95.5 kg·cm |
Electrical Properties
| Rated Voltage | 24 V DC |
| Rated Current | 2.2 A |
| Stall Current | 10.8 A |
Physical Properties
| Shaft Diameter | 12 mm |
| Wire Length | 300 mm |
| Weight | 1.5 kg |
Gearbox Specifications
| Gearbox Type | Planetary |
| Gear Ratio | 12 24⁄25 : 1 |
| Number of Gear Trains | 2 |
| Maximum Strength of Gears | 153 kg·cm |
| Shaft Maximum Axial Load | 200 N |
| Shaft Maximum Radial Load | 100 N |
