| 3269_0 - 24V/5.1Kg-cm/588RPM 4.25:1 DC Gear Motor |
Product Features
- High Speed, Good Torque
- Shaft Diameter: 12mm
- 4 1/4 : 1 Gear Reduction
- Rated speed: 588RPM
- Rated Torque: 5.1 Kg-cm
Product Description

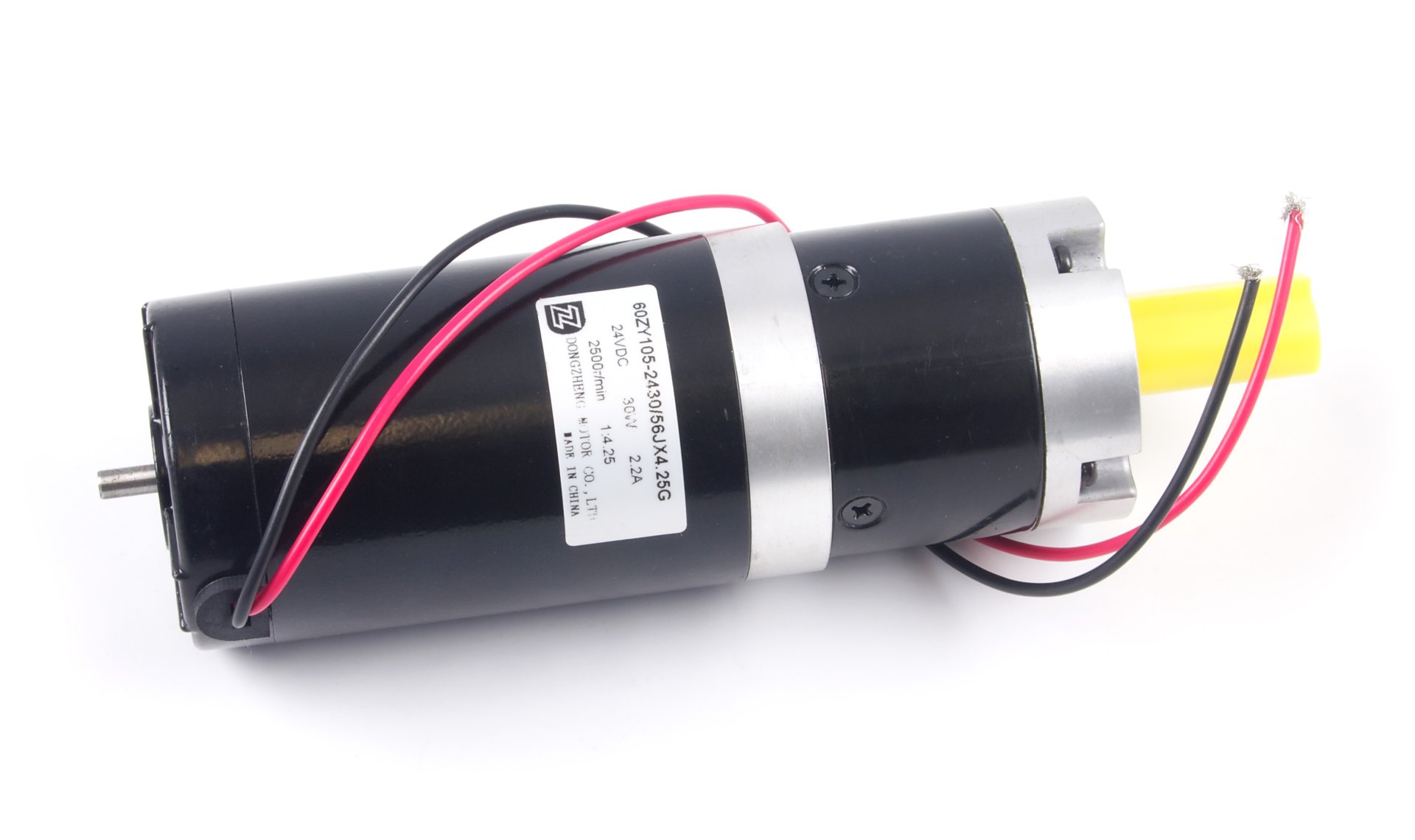

The 3269 is a 24 volt gear motor, generating 5.1 Kg-cm of torque at 588 RPM. It's a large motor that provides lots of torque, even at higher speeds.
The planetary gearbox on this motor is more sophisticated than a typical spur gearbox and will provide greater efficiency, higher torque, and quieter motor operation.
Motor Controller and Connection
The 3269 DC motor connects to the 1065 - PhidgetMotorControl 1-Motor
Related Products
- 3269E - 24V/5.1Kg-cm/588RPM 4.25:1 DC Gear Motor w/ Encoder
- 3270 - 24V/14.2Kg-cm/192RPM 13:1 DC Gear Motor
- 3271 - 24V/20.3Kg-cm/139RPM 18:1 DC Gear Motor
- 3272 - 24V/50.9Kg-cm/53RPM 47:1 DC Gear Motor
- 3273 - 24V/82.6Kg-cm/33RPM 76:1 DC Gear Motor
- 3274 - 24V/173.3Kg-cm/15RPM 168:1 DC Gear Motor
Resources
Product Specifications
Motor Properties
| Motor Type | DC Motor |
| Output Power (Mechanical) | 30 W |
| Maximum Speed at Rated Voltage | 588 RPM |
| Rated Torque | 5.1 kg·cm |
| Stall Torque | 31.2 kg·cm |
Electrical Properties
| Rated Voltage | 24 V DC |
| Rated Current | 2.2 A |
| Stall Current | 10.8 A |
Physical Properties
| Shaft Diameter | 12 mm |
| Wire Length | 300 mm |
| Weight | 1.5 kg |
Gearbox Specifications
| Gearbox Type | Planetary |
| Gear Ratio | 4 1⁄4 : 1 |
| Number of Gear Trains | 1 |
| Maximum Strength of Gears | 46 kg·cm |
| Shaft Maximum Axial Load | 200 N |
| Shaft Maximum Radial Load | 100 N |
