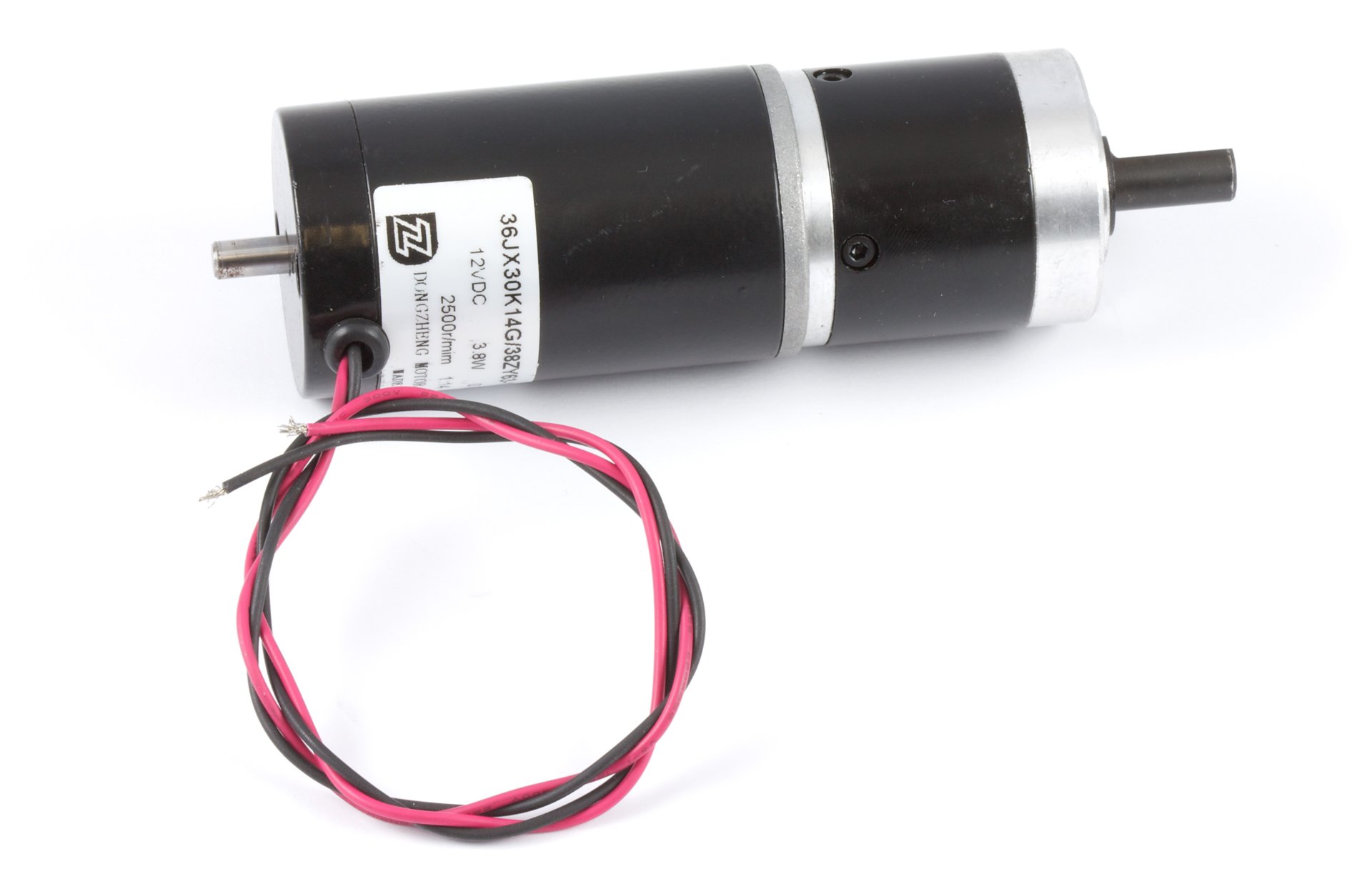

| 3266_0 - 12V/1.9Kg-cm/175RPM 14:1 DC Gear Motor |
Product Features
- Good Speed, Good Torque
- Shaft Diameter: 8mm
- 13 212/289 : 1 Gear Reduction
- Rated speed: 175RPM
- Rated Torque: 1.94 Kg-cm
Product Description
The 3266 is a 12 volt gear motor, generating 1.94 Kg-cm of torque at 175 RPM. Since this motor has a lower power output for its size, you can expect it to have a longer lifespan than other motors.
The planetary gearbox on this motor is more sophisticated than a typical spur gearbox and will provide greater efficiency, higher torque, and quieter motor operation.
Motor Controller and Connection
The 3266 DC motor connects to either of the following controllers:
Related Products
- 3266E - 12V/1.9Kg-cm/175RPM 14:1 DC Gear Motor w/ Encoder
- 3265 - 12V/0.5Kg-cm/670RPM 3.7:1 DC Gear Motor
- 3267 - 12V/6.6Kg-cm/49RPM 51:1 DC Gear Motor
- 3268 - 12V/17.3Kg-cm/18RPM 139:1 DC Gear Motor
Resources
Product Specifications
Motor Properties
| Motor Type | DC Motor |
| Output Power (Mechanical) | 3.8 W |
| Maximum Speed at Rated Voltage | 175 RPM |
| Rated Torque | 1.9 kg·cm |
| Stall Torque | 12.9 kg·cm |
Electrical Properties
| Rated Voltage | 12 V DC |
| Rated Current | 650 mA |
| Stall Current | 2.4 A |
Physical Properties
| Shaft Diameter | 8 mm |
| Wire Length | 350 mm |
| Weight | 464 g |
Gearbox Specifications
| Gearbox Type | Planetary |
| Gear Ratio | 13 212⁄289 : 1 |
| Number of Gear Trains | 2 |
| Maximum Strength of Gears | 30 kg·cm |
| Shaft Maximum Axial Load | 50 N |
| Shaft Maximum Radial Load | 35 N |
