| 3261_0 - 12V/0.2Kg-cm/1080RPM 3.7:1 DC Gear Motor |
Product Features
- Low Torque, High Speed
- Shaft Diameter: 6mm
- 3 12/17 : 1 Gear Reduction
- Rated speed: 1080RPM
- Rated Torque: 0.24 Kg-cm
Product Description

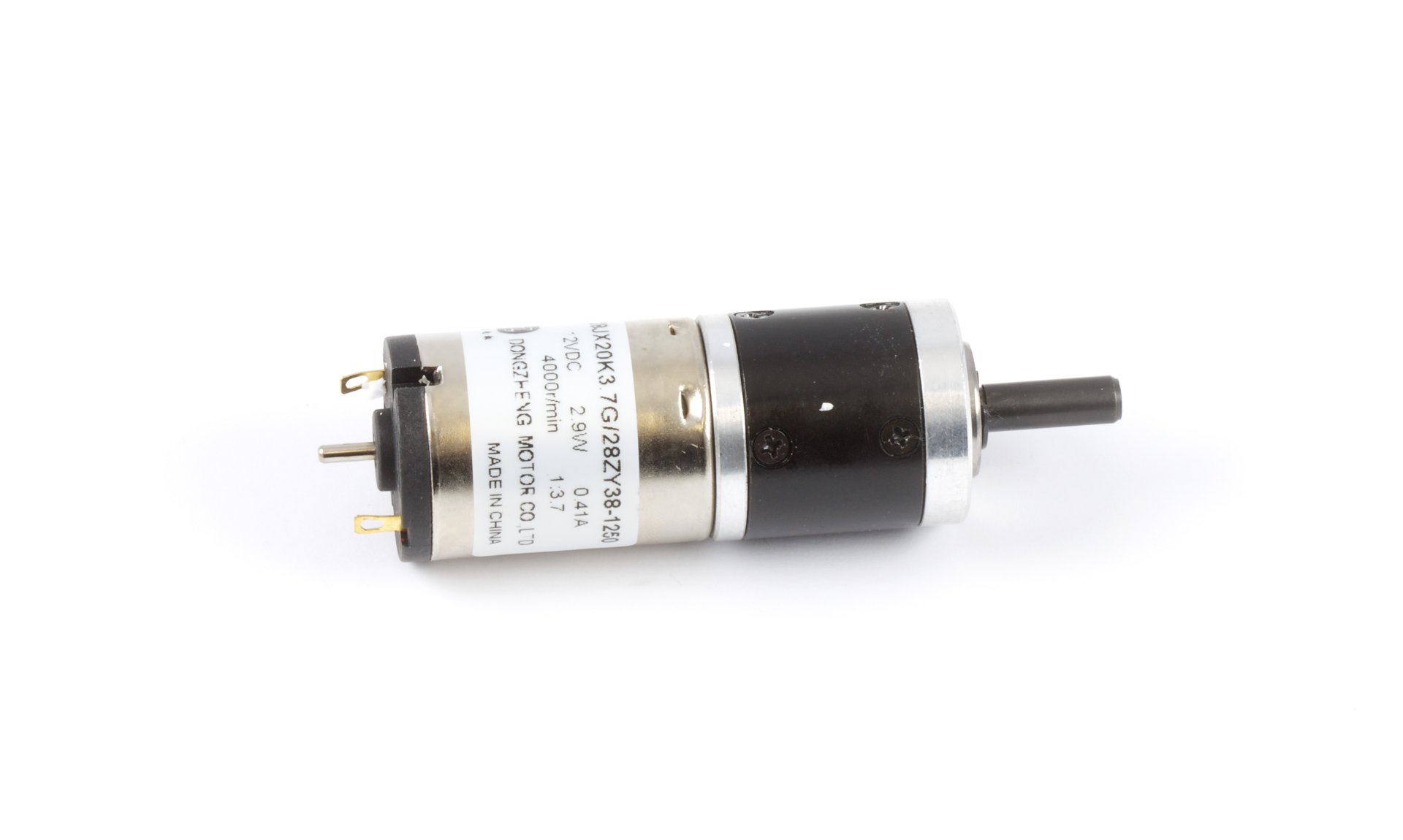

The 3261 is a 12 volt gear motor, generating 0.24 Kg-cm of torque at 1080 RPM. It's a small, inexpensive motor suitable for low torque, high speed applications. This motor is quite compact considering the amout of power it can output.
The planetary gearbox on this motor is more sophisticated than a typical spur gearbox and will provide greater efficiency, higher torque, and quieter motor operation.
Motor Controller and Connection
The 3261 DC motor connects to either of the following controllers:
You'll need to solder wires to the contacts of the motor in order to connect it to a controller.
Related Products
- 3261E - 12V/0.2Kg-cm/1080RPM 3.7:1 DC Gear Motor w/ Encoder
- 3262 - 12V/0.9Kg-cm/285RPM 14:1 DC Gear Motor
- 3263 - 12V/3.0Kg-cm/78RPM 51:1 DC Gear Motor
- 3264 - 12V/8.4Kg-cm/28RPM 139:1 DC Gear Motor
Resources
Product Specifications
Motor Properties
| Motor Type | DC Motor |
| Output Power (Mechanical) | 2.9 W |
| Maximum Speed at Rated Voltage | 1080 RPM |
| Rated Torque | 240 g·cm |
| Stall Torque | 1.3 kg·cm |
Electrical Properties
| Rated Voltage | 12 V DC |
| Rated Current | 410 mA |
| Stall Current | 1.5 A |
Physical Properties
| Shaft Diameter | 6 mm |
| Weight | 144 g |
| Recommended Wire Size (Motor) | 20 - 25 AWG |
Gearbox Specifications
| Gearbox Type | Planetary |
| Gear Ratio | 3 12⁄17 : 1 |
| Number of Gear Trains | 1 |
| Maximum Strength of Gears | 6 kg·cm |
| Shaft Maximum Axial Load | 35 N |
| Shaft Maximum Radial Load | 25 N |
