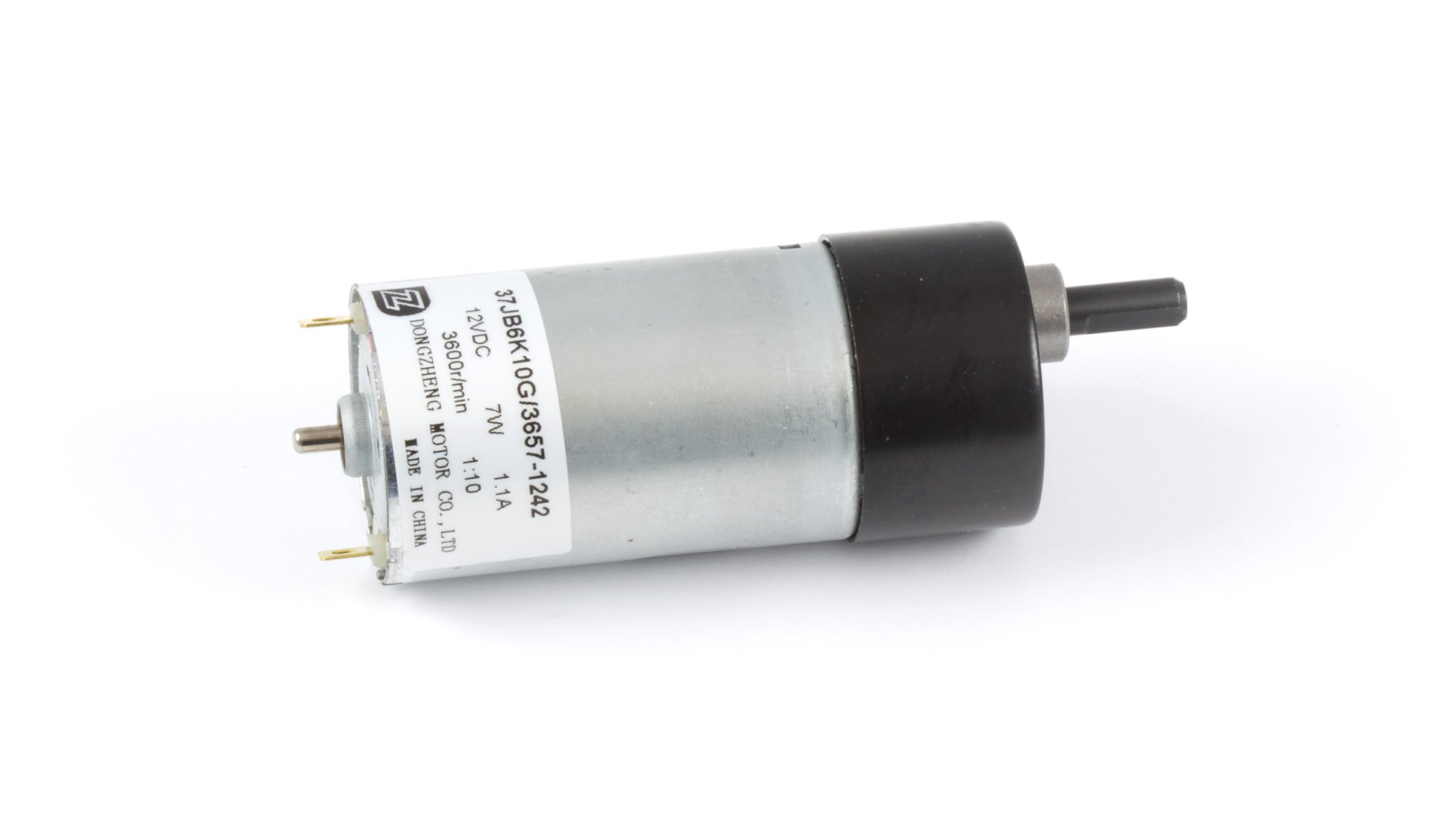

| 3258_0 - 12V/1.5Kg-cm/365RPM 10:1 DC Gear Motor |
Product Features
- Low Torque, Low Cost
- Shaft Diameter: 6mm
- 10:1 Gear Reduction
- Rated speed: 365RPM
- Rated Torque: 1.53 Kg-cm
Product Description
The 3258 is a 12 volt gear motor, generating 1.53 Kg-cm of torque at 365 RPM. While this motor is small and inexpensive, it is also aggressive- less efficient than the others, but very powerful for its size.
This family of motors (3258, 3259, 3260) have the same gearbox type and mounting metrics as the (3254, 3255, 3256, 3257) family of motors.
Motor Controller and Connection
The 3258 DC motor connects to either of the following controllers:
You'll need to solder wires to the contacts of the motor in order to connect it to a controller.
Related Products
- 3258E - 12V/1.5Kg-cm/365RPM 10:1 DC Gear Motor w/ Encoder
- 3259 - 12V/2.4Kg-cm/202RPM 18:1 DC Gear Motor
- 3260 - 12V/6.1Kg-cm/73RPM 50:1 DC Gear Motor
Resources
Warnings
|
The torque this motor produces when it stalls exceeds the rated strength of the gearbox. This means that stalling or very heavily loading this motor can cause serious damage to the gearbox. To avoid damage, avoid sudden loads or any load higher than the Maximum Strength of Gears spec. |
Product Specifications
Motor Properties
| Motor Type | DC Motor |
| Output Power (Mechanical) | 7 W |
| Maximum Speed at Rated Voltage | 365 RPM |
| Rated Torque | 1.5 kg·cm |
| Stall Torque | 14.1 kg·cm |
Electrical Properties
| Rated Voltage | 12 V DC |
| Rated Current | 2 A |
| Stall Current | 5 A |
Physical Properties
| Shaft Diameter | 6 mm |
| Weight | 270 g |
| Recommended Wire Size (Motor) | 16 - 18 AWG |
Gearbox Specifications
| Gearbox Type | Spur |
| Gear Ratio | 10 : 1 |
| Number of Gear Trains | 2 |
| Maximum Strength of Gears | 3 kg·cm |
| Shaft Maximum Axial Load | 35 N |
| Shaft Maximum Radial Load | 25 N |
