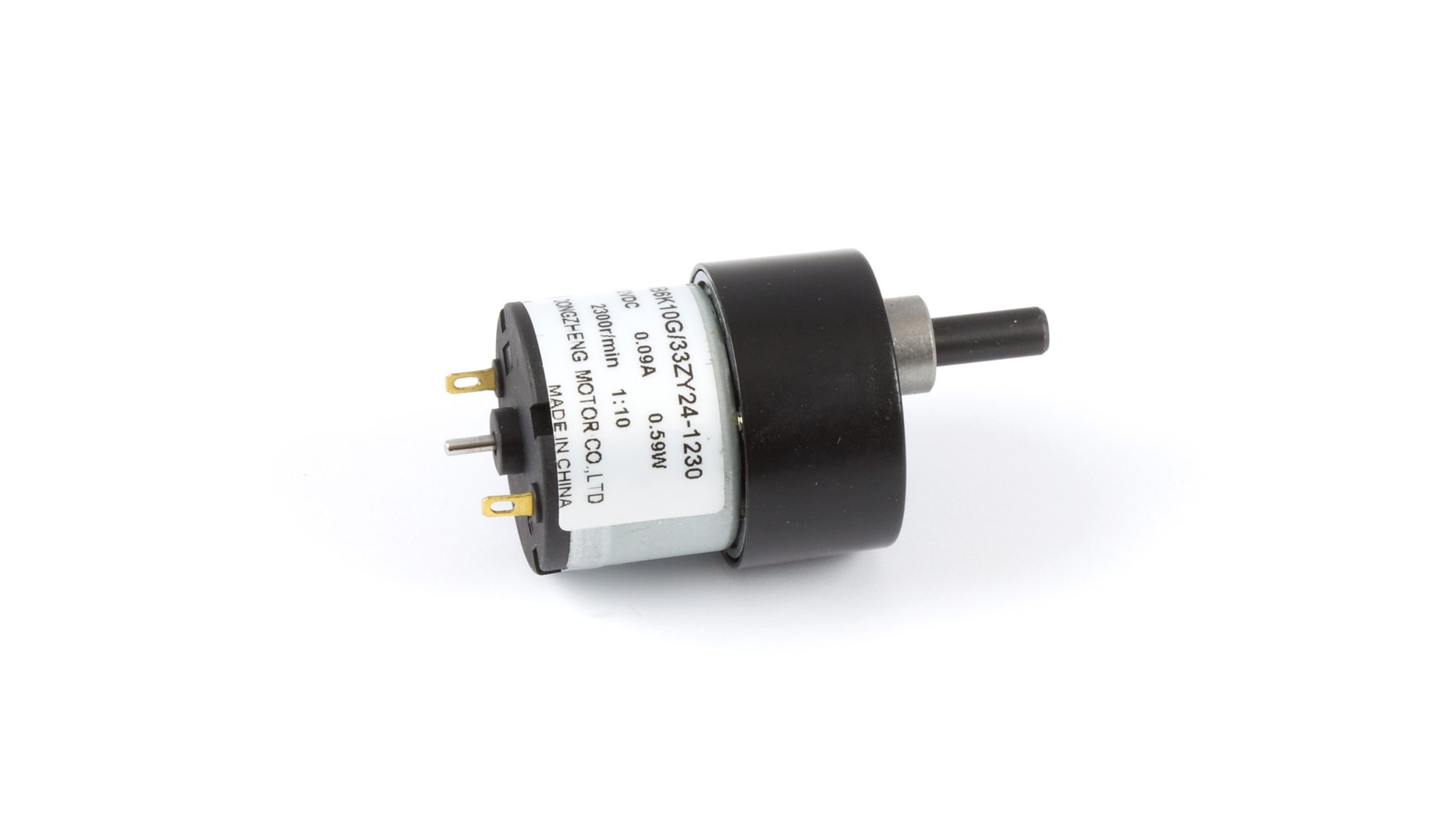

3254_0 - 12V/0.2Kg-cm/230RPM 10:1 DC Gear Motor
Quantity Price
1$10.00
5$9.60
10$9.30
25$9.00
100$8.70
In Stock
Qty: 163
ROHS

Product Features


This DC motor has a 10:1 gearbox, a rated speed of 230 RPM and rated torque of 0.2 Kg·cm.
Product Description

The 3254 is a 12 volt gear motor, generating 0.2 Kg-cm of torque at 230 RPM. It's a small, inexpensive motor that can output a small amount of power. It is very efficient for its size, so less power is lost in the form of heat.

This family of motors (3254, 3255, 3256, 3257) have the same gearbox type and mounting metrics as the (3258, 3259, 3260) family of motors.


Motor Controller and Connection

The 3254 DC motor connects to either of the following controllers:

You'll need to solder wires to the contacts of the motor in order to connect it to a controller.

Related Products


Resources




Product Specifications

Motor Properties

Motor TypeDC Motor
Output Power (Mechanical)590 mW
Maximum Speed at Rated Voltage230 RPM
Rated Torque200 g·cm
Stall Torque1 kg·cm

Electrical Properties

Rated Voltage12 V DC
Rated Current90 mA
Stall Current260 mA

Physical Properties

Shaft Diameter6 mm
Weight128 g
Recommended Wire Size (Motor)20 - 26 AWG

Gearbox Specifications

Gearbox TypeSpur
Gear Ratio10 : 1
Number of Gear Trains2
Maximum Strength of Gears3 kg·cm
Shaft Maximum Axial Load35 N
Shaft Maximum Radial Load25 N
