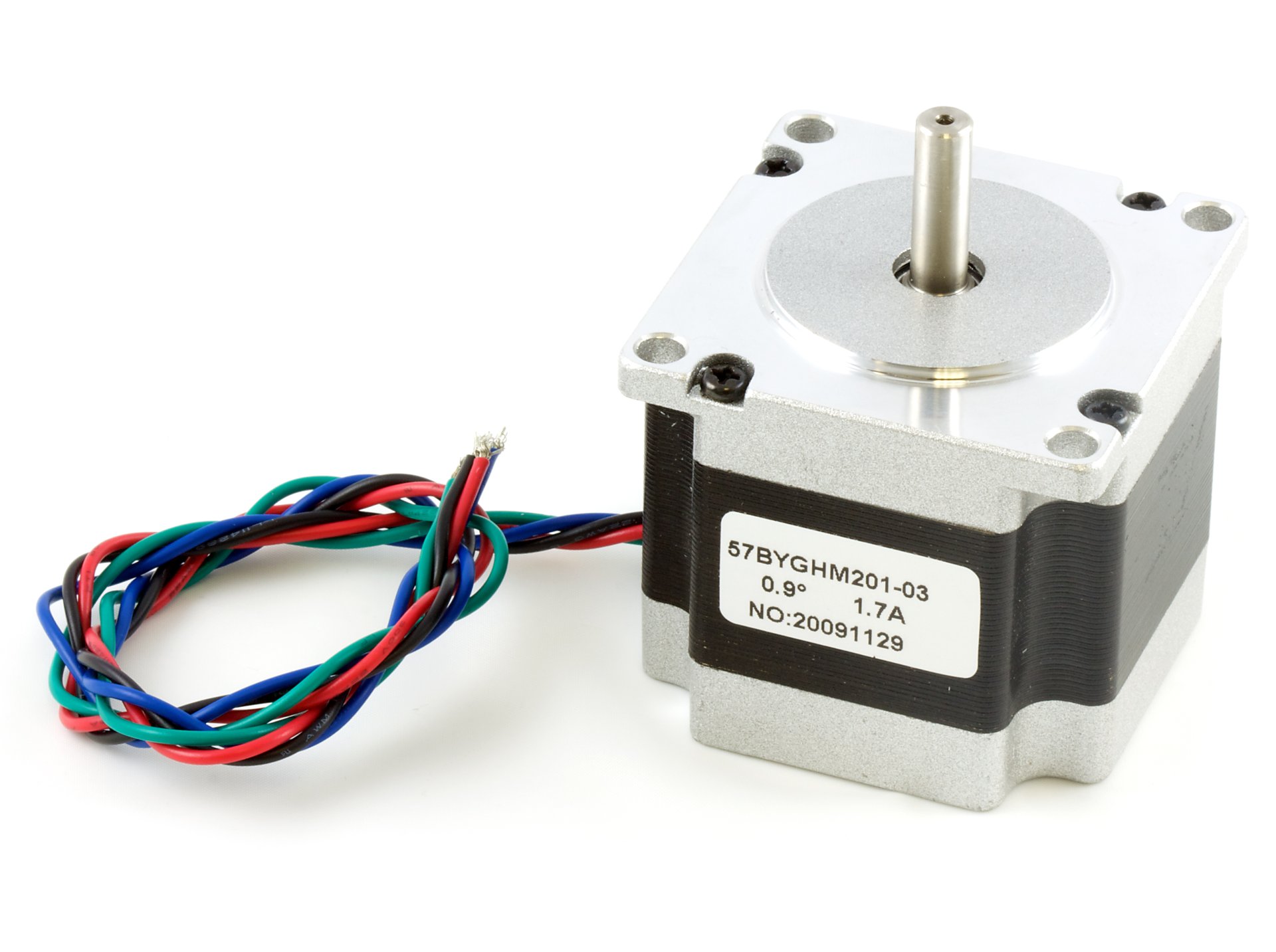

| 3308_0 - NEMA-23 Bipolar 50mm Stepper |
Product Features
- Fine Resolution and High Torque
- 0.9° Step Angle
- 9 kg-cm holding torque @ 1.7A
- 8.84 kg-cm low speed torque
- NEMA-23 Bipolar 4-wire
Product Description
This NEMA-23 stepper motor that has fine resolution and high torque.
Motor Controller and Connection
The 3308 stepper motor connects to a bipolar motor controller:
The following table shows how to connect the motor wires to the board connectors to produce a clockwise rotation in the stepper motor when increasing position. To wire for counter-clockwise rotation when increasing position, reverse the red and blue wires.
| Wire Color | Black | Green | Red | Blue |
| Board Connector | A | B | C | D |
Note: Make sure to unplug the power cord from the motor controller before switching wires around.
Warning
|
Connecting the motor directly to a power supply will destroy the motor and void the warranty. If you want to check your motor make sure it is connected to a constant current / chopper drive controller. |
Product Specifications
Motor Properties
| Motor Type | Bipolar Stepper |
| Manufacturer Part Number | 57BYGHM201 |
| Step Angle | 0.9° |
| Step Accuracy | 5 % |
| Holding Torque | 9 kg·cm |
| Rated Torque | 8.5 kg·cm |
| Maximum Speed (w/1063 Motor Controller) | 300 RPM |
| Maximum Speed (w/1067 Motor Controller) | 2344 RPM |
| Acceleration at Max Speed (w/1067 Motor Controller) | 1E+06 1/16 steps/sec² |
Electrical Properties
| Recommended Voltage | 24 V DC |
| Rated Current | 1.7 A |
| Coil Resistance | 4 Ω |
Physical Properties
| Shaft Diameter | 1⁄4″ |
| Mounting Plate Size | NEMA - 23 |
| Weight | 580 g |
| Number of Leads | 4 |
| Wire Length | 300 mm |
