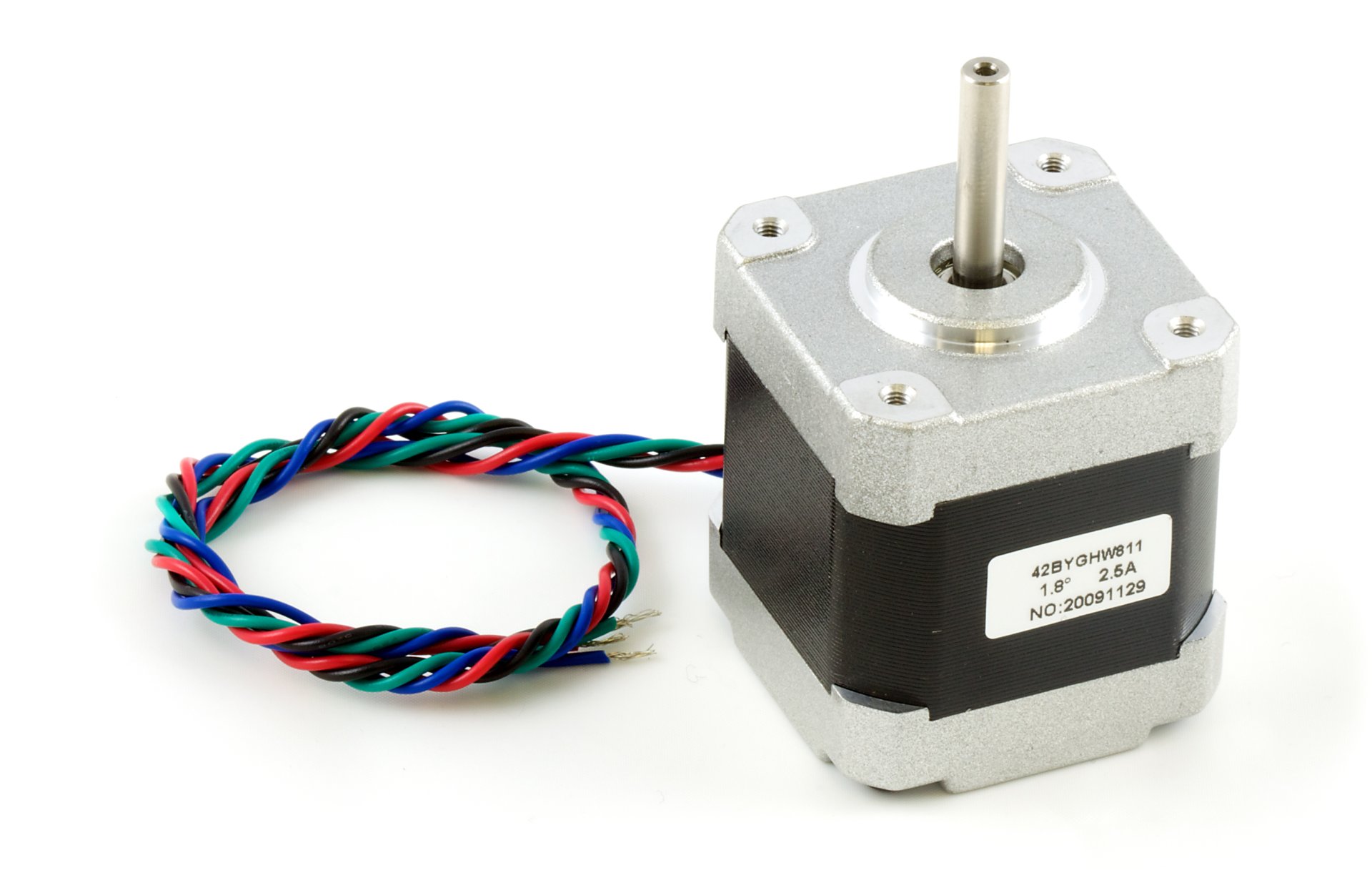

3303_0 - NEMA-17 Bipolar 48mm Stepper
Quantity Price
1$15.00
5$14.40
10$13.95
25$13.50
100$13.05
In Stock
Qty: 1000+
ROHS

Product Features


This affordable bipolar stepper has a 1.8° step angle and 4.24 kg·cm of torque at low speeds.
Product Description

This motor is a larger NEMA-17 motor that produces a whopping 4800g-cm of holding torque. The motor is also very efficient in converting current into torque and velocity.



Motor Controller and Connection

The 3303 stepper motor connects to a bipolar motor controller such as the 1067 - PhidgetStepper Bipolar HC.

The following diagram shows how to connect the motor wires to the board connectors to produce a clockwise rotation in the stepper motor when increasing position. To wire for counter-clockwise rotation when increasing position, reverse the red and blue wires.

Series

Note: Make sure to unplug the power cord from the motor controller before switching wires around.



Mounting Bracket

The mounting holes on this motor are compatible with the 3338 - Mounting Bracket (NEMA17).

Bracket
Warning

warning Connecting the motor directly to a power supply will destroy the motor and void the warranty. If you want to check your motor make sure it is connected to a constant current / chopper drive controller.
Product Specifications

Motor Properties

Motor TypeBipolar Stepper
Manufacturer Part Number42BYGHW811
Step Angle1.8°
Step Accuracy5 %
Holding Torque4.8 kg·cm
Rated Torque4.2 kg·cm
Maximum Speed (w/1063 Motor Controller)600 RPM
Maximum Speed (w/1067 Motor Controller)4688 RPM
Acceleration at Max Speed
(w/1067 Motor Controller)
1.4E+06 1/16 steps/sec²

Electrical Properties

Recommended Voltage12 V DC
Rated Current2.5 A
Coil Resistance1.3 Ω
Phase Inductance1.8 mH

Physical Properties

Shaft Diameter5 mm
Mounting Plate SizeNEMA - 17
Weight332 g
Number of Leads4
Wire Length300 mm
