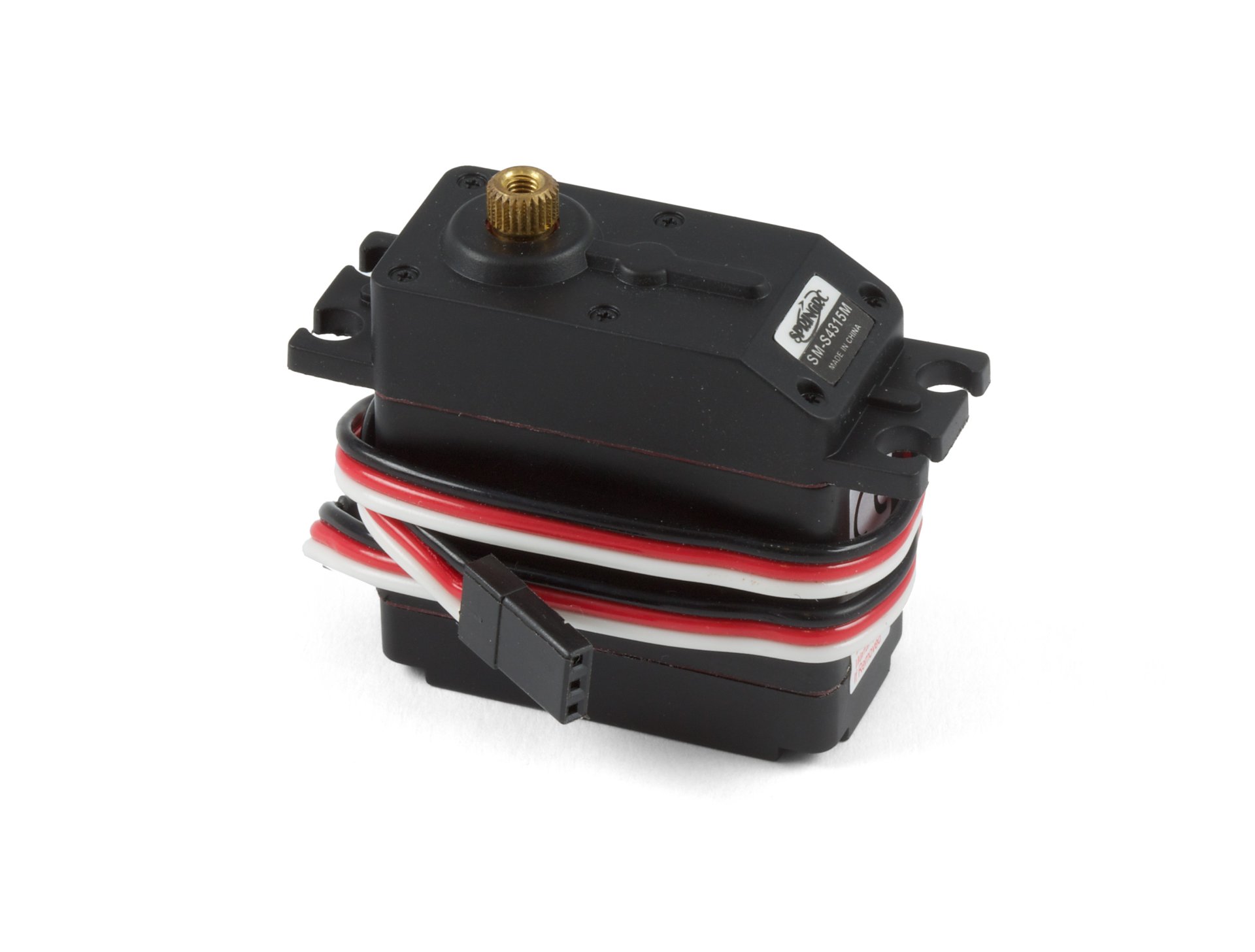

| 3208_0 - SpringRC Standard Servo - High Torque (SM-S4315M) |
Product Features
- Rotation Angle: 180°
- Regular Size
- Double Ball Bearing
Product Description
The 3208 is a regular size high torque RC servo with double ball bearing and produces 13 kg-cm of torque at 4.8V.
Accessories Bag
Mechanical Drawing
| A | B | C | D | E |
| 41.3mm | 20.7mm | 40.0mm | 50.3mm | 9.9mm |
Warning
|
RC servos are hobbyist remote control servos typically used in radio-controlled models, where they provide actuation for various mechanical systems such as the steering of a car, the flaps on a plane, or the rudder of a boat. These servos are not industrial grade and are not recommended for continuous heavy use. |
Product Specifications
Motor Properties
| Motor Type | Limited Rotation Servo |
| Range of Rotation | 180° |
| Maximum Speed at Rated Voltage | 285°/s |
| Rated Torque | 13 kg·cm |
Physical Properties
| Gear Train Material | Metal |
| Bearing Type | Double Ball Bearing |
| Motor Length | 40 mm |
| Motor Width | 41.3 mm |
| Motor Depth | 20.7 mm |
| Wire Length | 280 mm |
| Weight | 60 g |
Electrical Properties
| Rated Voltage | 5 V DC |
| Rated Current (on 1061 controller) | 350 mA |
| Rated Current (on 1066 controller) | 370 mA |
| Stall Current (on 1061 controller) | 1.8 A |
| Stall Current (on 1066 controller) | 450 mA |
Motor Controllers
This Servo can be used with the following Phidget motor controllers:
The 1061 will produce a little more torque than the 1066.
When connecting the servo motor to the motor controller, make sure that the cable wires line up with the proper colors as marked on the conroller board.
