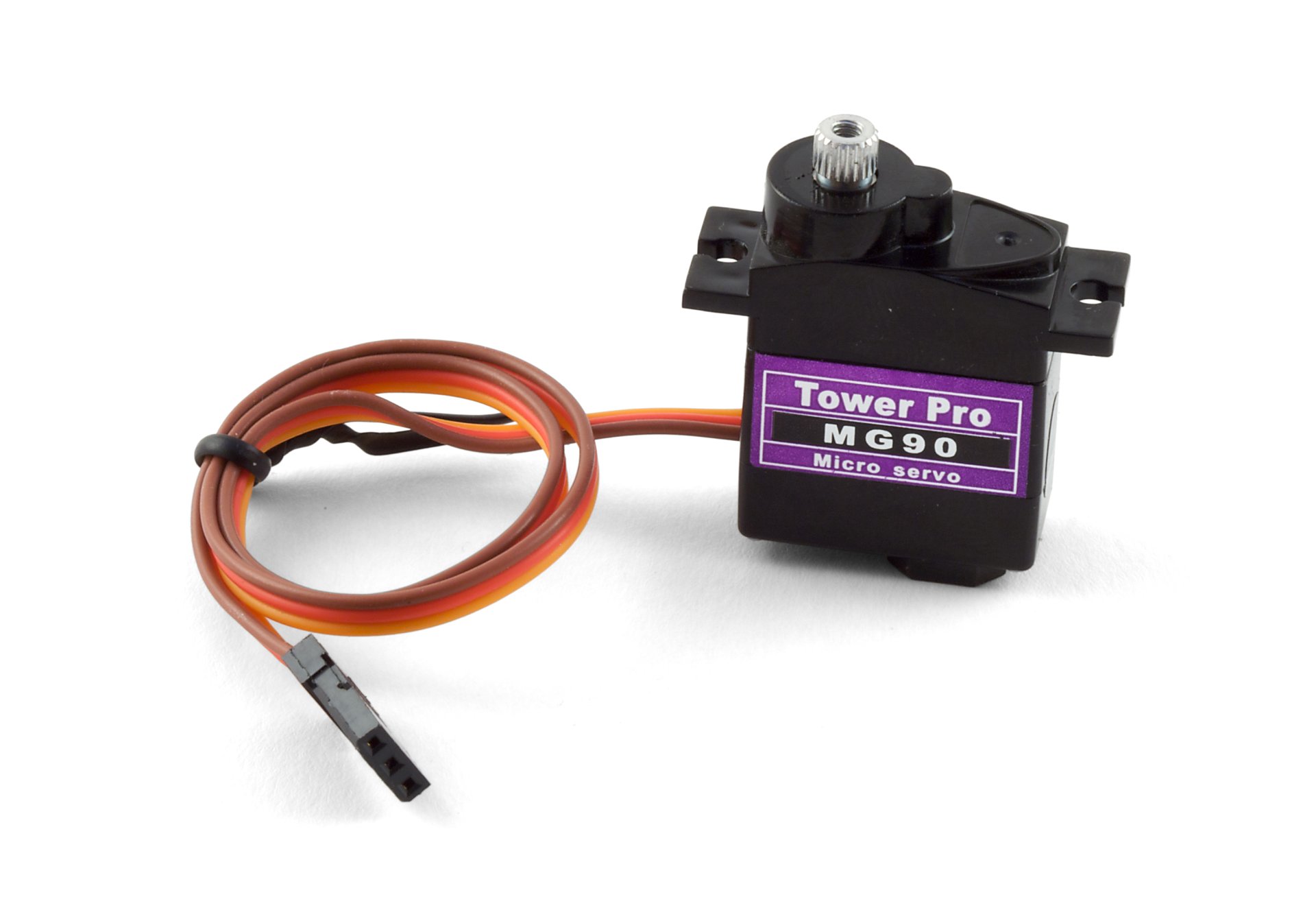

| 3205_0 - Towerpro MG90 Micro Servo |
Product Features
- 175° of travel
- Small
- Light weight high strength nylon casing
- Durable Metal gear with bearing
Accessories Bag
The MG90 comes with 3 servo rudder pieces and 1 set of screws.
Product Description
The MG90 is a nice small RC servo ideal for projects where size and weight are important.
RC servos are hobbyist remote control servos typically used in radio-controlled models, where they provide actuation for various mechanical systems such as the steering of a car, the flaps on a plane, or the rudder of a boat. These servos are not industrial grade and are not recommended for continuous heavy use.
Resources
Product Specifications
Motor Properties
| Motor Type | Limited Rotation Servo |
| Range of Rotation | 175° |
| Maximum Speed at Rated Voltage | 545°/s |
| Rated Torque | 2 kg·cm |
Physical Properties
| Gear Train Material | Metal |
| Bearing Type | Dual Ball Bearing |
| Motor Length | 29 mm |
| Motor Width | 23 mm |
| Motor Depth | 12.2 mm |
| Wire Length | 250 mm |
| Weight | 14 g |
Electrical Properties
| Rated Voltage | 5 V DC |
| Rated Current (on 1061 controller) | 90 mA |
| Rated Current (on 1066 controller) | 100 mA |
| Stall Current (on 1061 controller) | 480 mA |
| Stall Current (on 1066 controller) | 430 mA |
Motor Controllers
The 3205 - Micro Servo can be used with the following Phidget motor controllers:
The 1061 will produce a little more torque than 1066.
