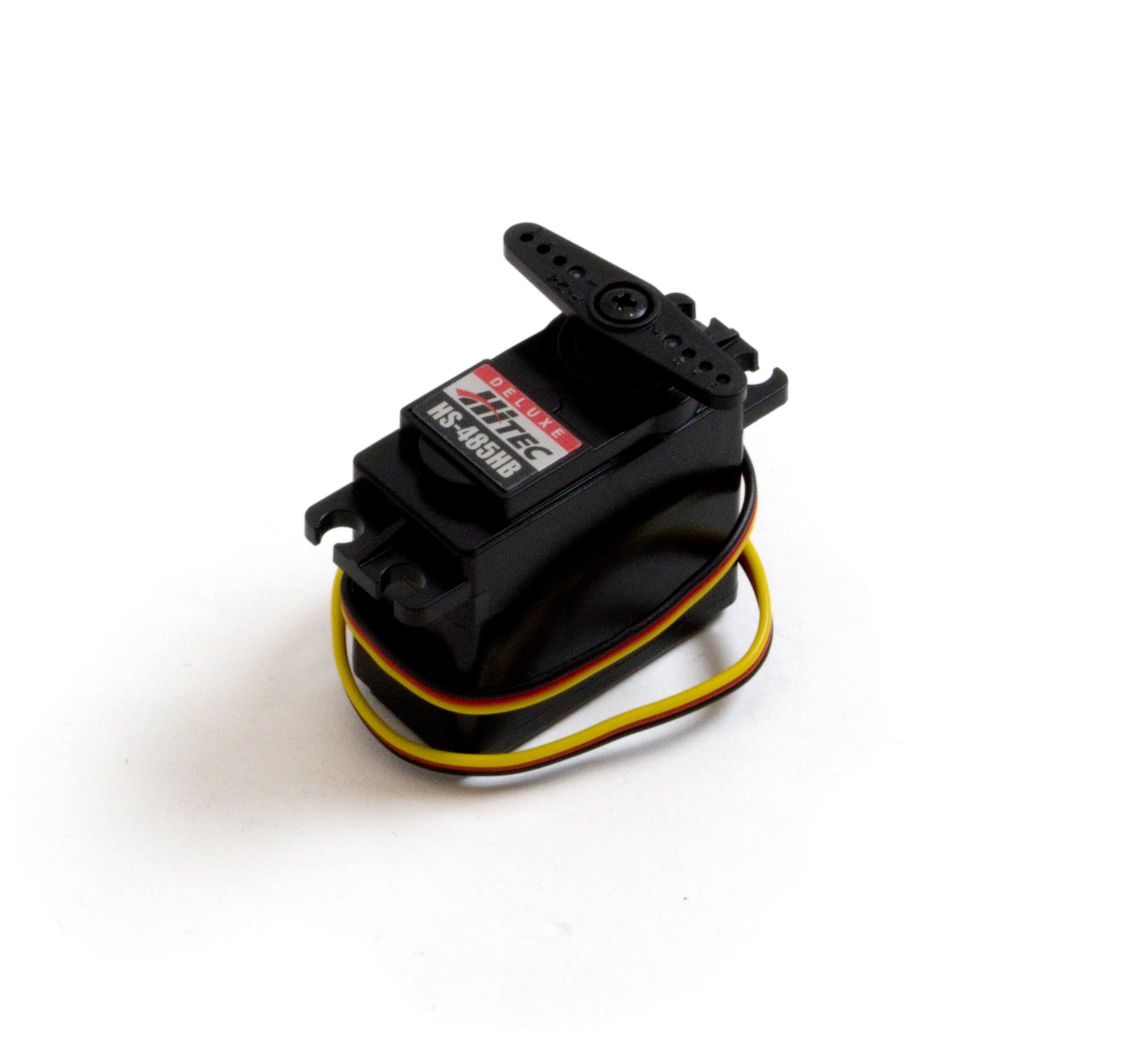

3203_0 - Hitec HS-485HB Deluxe Servo
Quantity Price
1$19.00
5$18.25
10$17.70
25$17.10
100$16.55
In Stock
Qty: 169
ROHS

Product Features


This servo motor has 180° of travel and reasonable torque for its size.
Accessories Bag

3203Accessories

Product Description

HS-485HB updates the very popular HS-475HB by adding more torque and greater speed. With a top ball bearing, heavy duty, high impact Karbonite™ gears and high performance circuitry, the HS-485HB offers lots of torque and features excellent centering and resolution.

RC servos are hobbyist remote control servos typically used in radio-controlled models, where they provide actuation for various mechanical systems such as the steering of a car, the flaps on a plane, or the rudder of a boat. These servos are not industrial grade and are not recommended for continuous heavy use.



Resources

Motor Controllers

The 3203 - Deluxe Servo can be used with the following Phidget motor controllers:

You must use the 1061 if you want to get the maximum torque out of your motor.



Product Specifications

Motor Properties

Motor TypeLimited Rotation Servo
Range of Rotation180°
Maximum Speed at Rated Voltage272°/s
Rated Torque4.8 kg·cm

Physical Properties

Gear Train MaterialMetal
Bearing TypeTop Ball Bearing
Motor Length38 mm
Motor Width39.8 mm
Motor Depth19.8 mm
Wire Length300 mm
Weight45 g

Electrical Properties

Rated Voltage5 V DC
Rated Current (on 1061 controller)150 mA
Rated Current (on 1066 controller)180 mA
Stall Current (on 1061 controller)750 mA
Stall Current (on 1066 controller)450 mA

These product specifications are based on our own tests using the HS-485 motor with the Phidgets 1061 and 1066 motor controllers.
