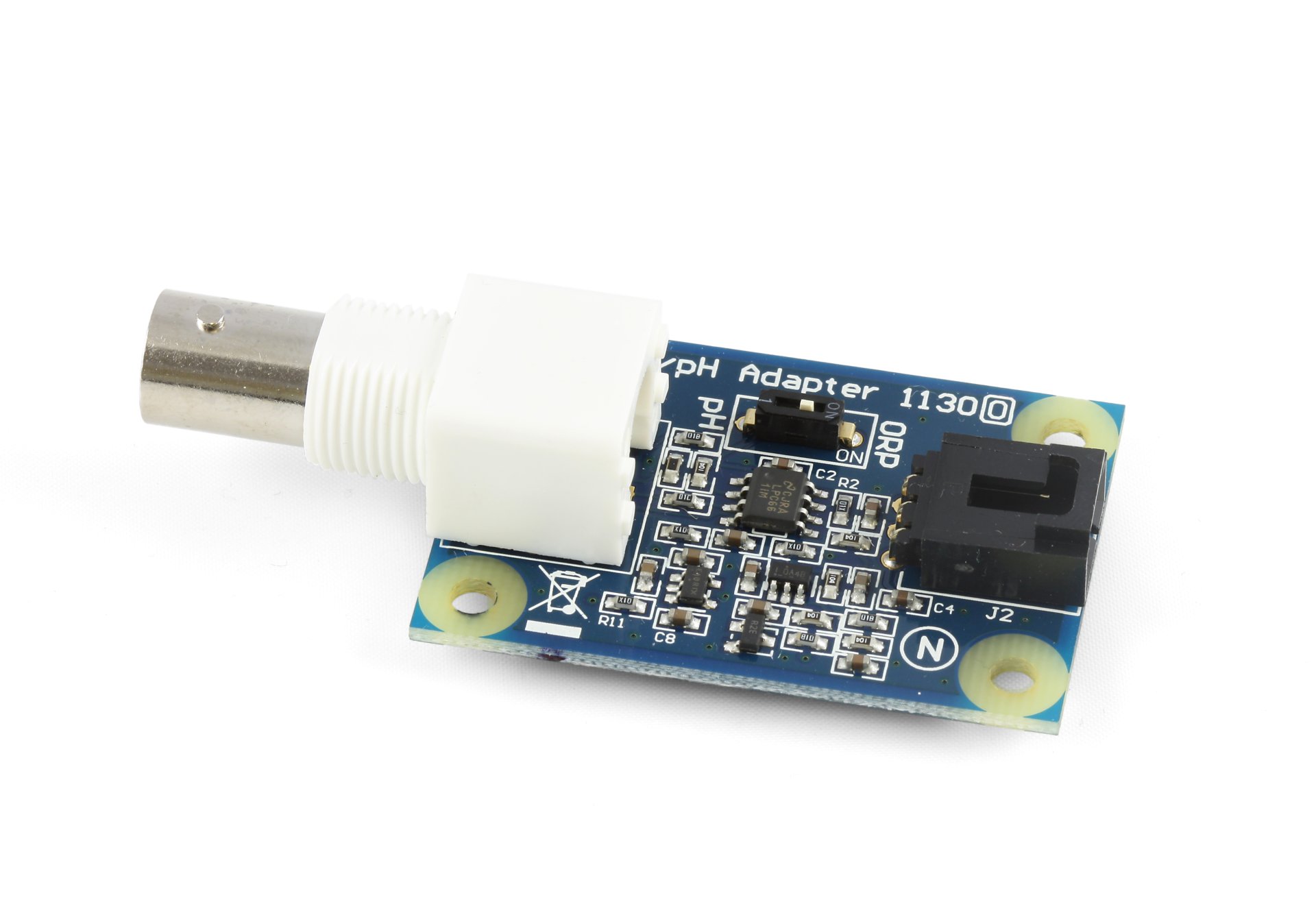

| 1130_0 - pH/ORP Adapter |
Product Features
- Interfaces to a glass electrode through a common BNC connection
- Measures the pH or ORP level of a substance
- Connects to any device with an Analog Input.
Product Description
The pH/ORP Adapter Interfaces to a pH or ORP glass electrode through a BNC connector and feeds the data to an Analog Input on a PhidgetInterface board.
With the pH/ORP Adapter you can:
- Measure pH
- Record Oxidation - Reduction Potential (ORP)
- Monitor ion and gas concentrations
Product Specifications
Sensor Properties
| Sensor Output Type | Non-Ratiometric |
pH Specifications
| pH Input Range | ± 400 mV DC |
| pH Resolution | 0.018 |
| pH Error Max | ± 0.09 |
ORP Specifications
| ORP Input Range | ± 2 V DC |
| ORP Resolution | 5 mV DC |
| ORP Error Max | ± 8 mV DC |
Board
| Current Consumption Max | 3 mA |
| Input Impedance | 1 TΩ |
| Supply Voltage Min | 4.5 V DC |
| Supply Voltage Max | 5.3 V DC |
| Connector Thread Size | ½-28UNEF-2A |
Comes packaged with
Resources
Related Products
If you need a pH or ORP electrode have a look at:
- 3550 – ASP200 pH Lab Electrode
- 3555 – ASR2803 ORP Lab Electrode
- 3551 – PC2121 pH Industrial Electrode
- 3556 – ASR2801 ORP Industrial Electrode
