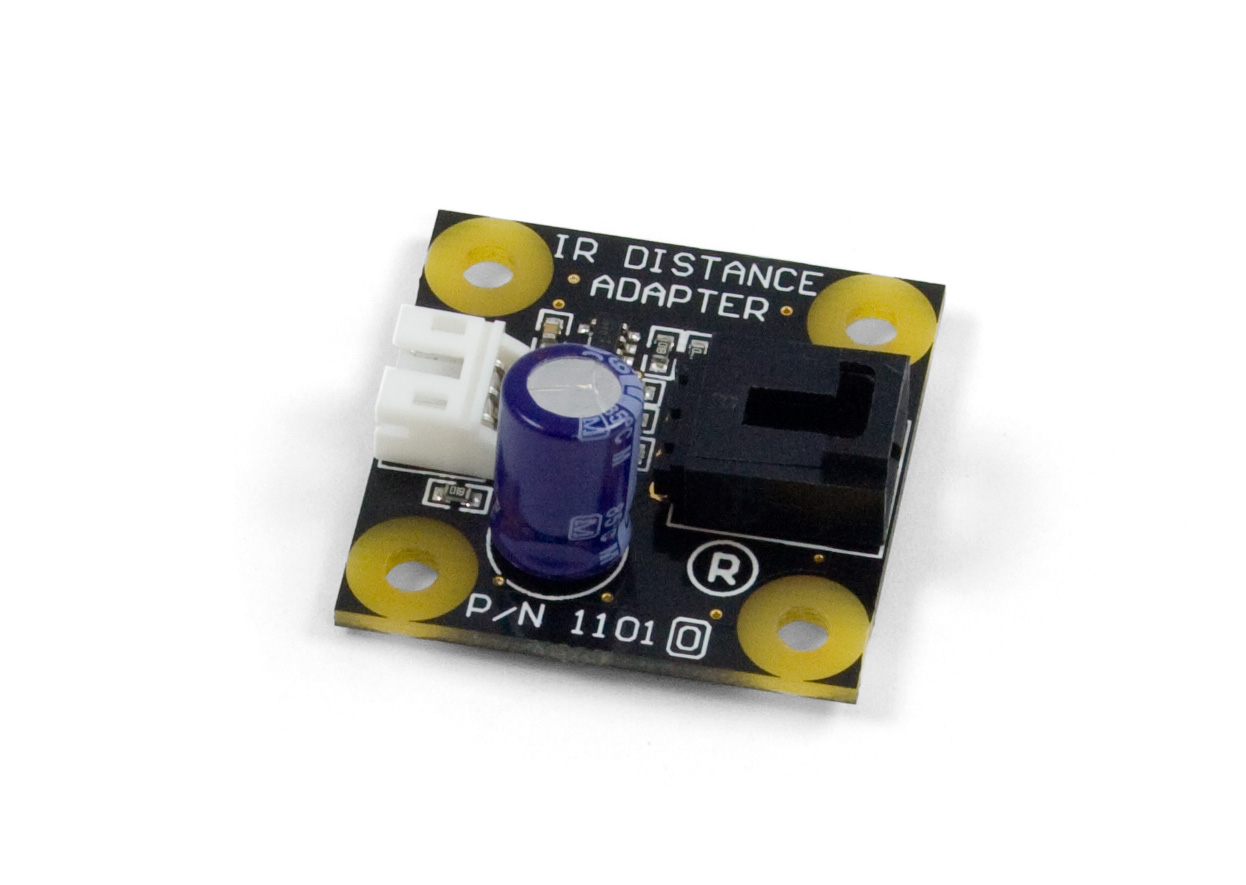

| 1101_0 - IR Distance Adapter |
Product Features
- Designed to interface the Sharp distance sensors to an analog input on PhidgetInterface boards.
- Connects to any device with an Analog Input.
Product Description
The IR Distance Adapter is designed to interface the following Sharp sensors to an analog input on a PhidgetInterface board.
| GP2D120XJ00F | 4-30cm Analog |
| GP2D120 | 4-30cm Analog (non-RoHS) |
| GP2Y0A21YK0F | 10-80cm Analog |
| GP2D12 | 10-80cm Analog (non-RoHS) |
| GP2Y0A21YK | 10-80cm Analog (non-RoHS) |
| GP2D150AJ00F | 15cm Digital |
| GP2D140A | 15cm Digital (non-RoHS) |
| GP2Y0A02YK0F | 20-150cm Analog |
| GP2Y0A02YK | 20-150cm Analog (non-RoHS) |
| GP2Y0D21YK0F | 24cm Digital |
| GP2Y0D21YK | 24cm Digital (non-RoHS) |
| GP2D14J0000F | 24cm Digital |
| GP2D15 | 24cm Digital (non-RoHS) |
| GP2Y0D02YK0F | 80cm Digital |
| GP2Y0D02YK | 80cm Digital (non-RoHS) |
Related Products
We carry the following Sharp Distance Sensors:
Product Specifications
Sensor Properties
| Sensor Output Type | Ratiometric |
Electrical Properties
| Supply Voltage Min | 4.8 V DC |
| Supply Voltage Max | 5.3 V DC |
| Current Consumption Max | 3 mA |
| Output Impedance | 1 kΩ |
Physical Properties
| Operating Temperature Min | -25 °C |
| Operating Temperature Max | 85 °C |
Comes packaged with
- 3002 – 60cm Sensor Cable
- A 30cm Sharp Sensor Interface Cable
