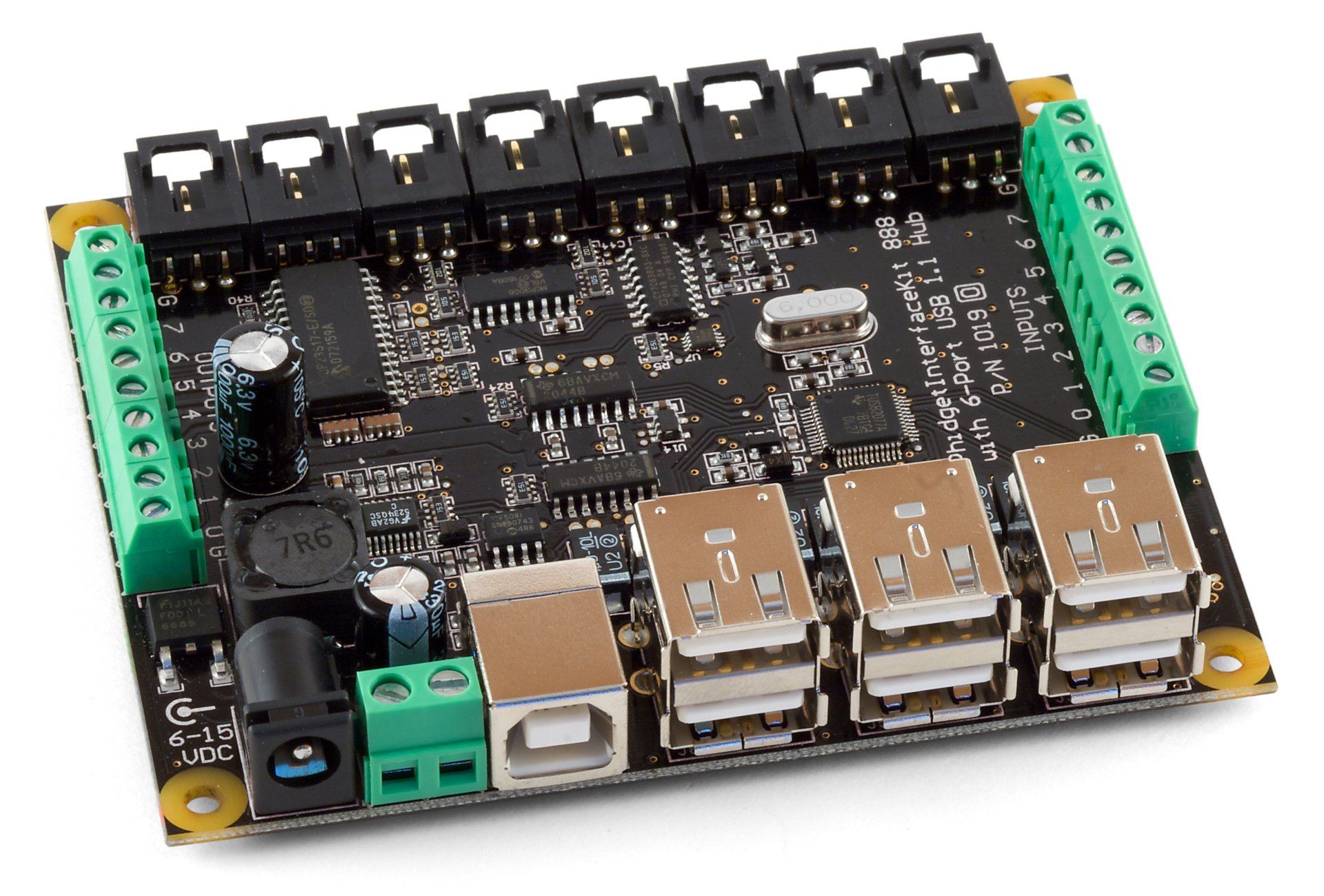

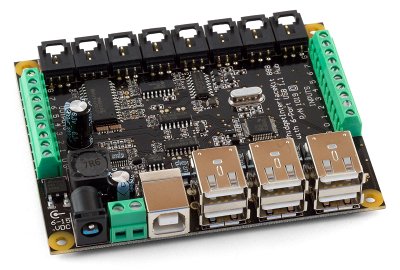

| 1019_0 - PhidgetInterfaceKit 8/8/8 w/6 Port Hub - Discontinued |
Product Features
- 8 Analog Inputs
- 8 Digital Inputs with hardware noise filtering
- 8 Digital Outputs
- On-board powered 6-port full-speed (12Mbit/s) USB hub
Replaced by the 1019 - PhidgetInterfaceKit 8/8/8 w/6 Port Hub.
Analog Inputs
The Analog Inputs are used to measure continuous quantities, such as temperature, humidity, position, pressure, etc. Phidgets offers a wide variety of sensors that can be plugged directly into the board using the cable included with the sensor.
Digital Inputs
The Digital Inputs have a Digital Input Hardware Filter to eliminate false triggering from electrical noise. They can be used to convey the state of devices such as push buttons, limit switches, relays, and logic levels.
Digital Outputs
The Digital Outputs can be used to drive LEDs, solid state relays (such as the 3052 SSR Relay Board), transistors; in fact, anything that will accept a CMOS signal.
USB Hub
Connecting additional USB devices to the 1019 is as easy as plugging them into the on-board 6-port hub. Each USB port on the hub has a maximum current supply of 500mA.
- A Power Supply 12VDC 2.0A – with a US, Australian, European, or UK Plug
- A 3001 - 180cm USB Cable
- A Hardware mounting kit (4 nuts and bolts, 4 plastic spacers)
| Analog Input Impedance | 900k ohms |
| Digital Output Series Resistance | 300 ohms |
| Digital Input Pull-Up Resistance | 15K ohms |
| Analog Input Update Rate | ~65 samples/second |
| Digital Output Update Rate | ~125 samples/second |
| Digital Input Update Rate | ~125 samples/second |
| Digital Input Recommended Wire Size | 16 - 26 AWG |
| Digital Output Recommended Wire Size | 16 - 26 AWG |
| Digital Input Wire Stripping | 5-6mm strip |
| USB-Power Current Consumption | Max 10mA |
| Min Power Supply Voltage | 6V |
| Max Power Supply Voltage | 15V |
| Current Available per USB Port | Max 500mA |
| Power Throughput (including 8/8/8) | Max 20W |
| Digital Input Maximum Voltage | ±15V |
| Operating Temperature | 0 - 70°C |
