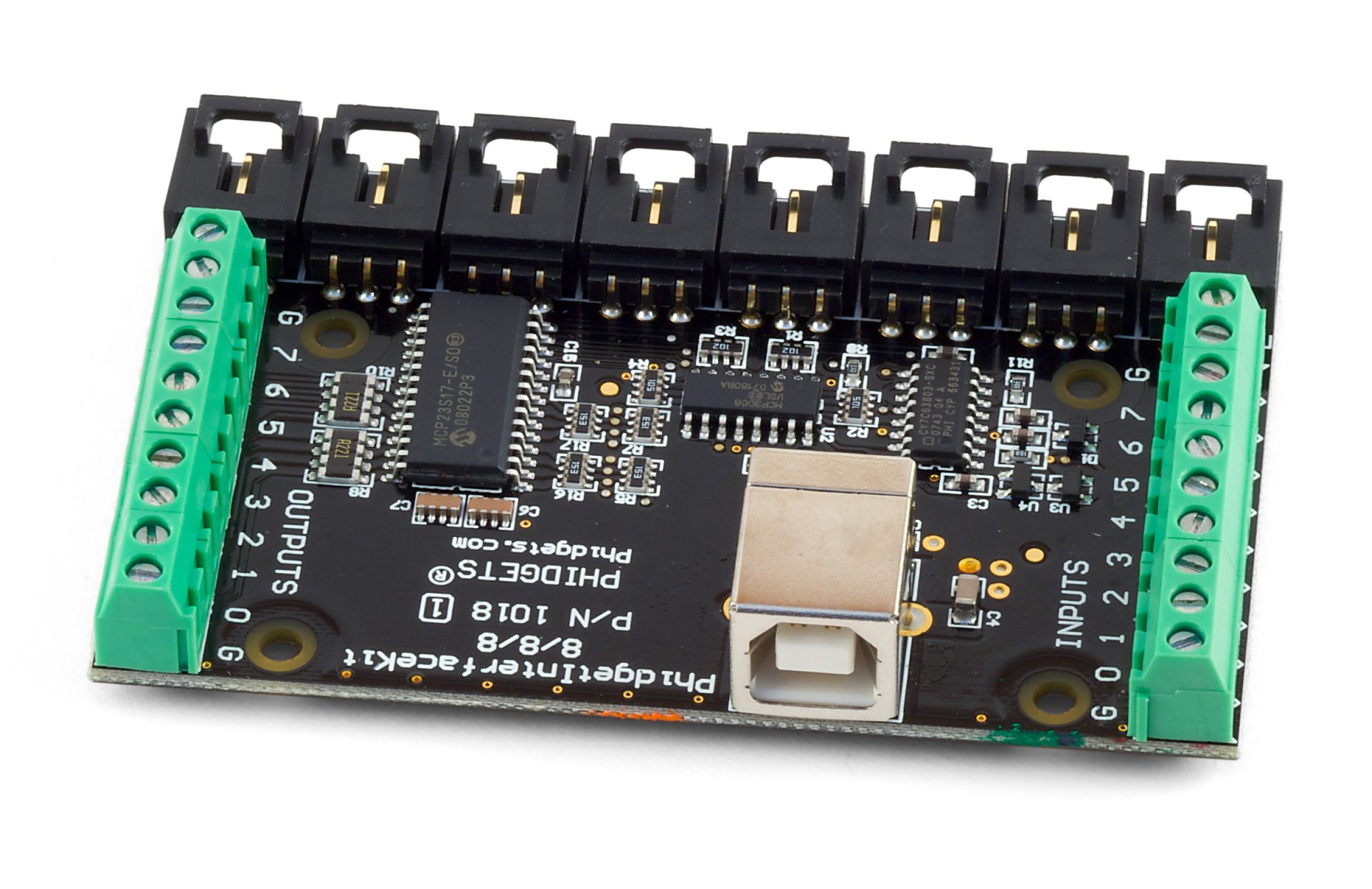

| 1018_1 - PhidgetInterfaceKit 8/8/8 - Discontinued |
Product Features
- 8 Analog Inputs
- 8 Digital Inputs with hardware noise filtering
- 8 Digital Outputs
- Connects directly to a computer’s USB port
Replaced by the 1018 - PhidgetInterfaceKit 8/8/8.
Analog Inputs
The Analog Inputs are used to measure continuous quantities, such as temperature, humidity, position, pressure, etc. Phidgets offers a wide variety of sensors that can be plugged directly into the board using the cable included with the sensor.
Digital Inputs
The Digital Inputs have a Digital Input Hardware Filter to eliminate false triggering from electrical noise. They can be used to convey the state of devices such as push buttons, limit switches, relays, and logic levels.
Digital Outputs
The Digital Outputs can be used to drive LEDs, solid state relays (such as the 3052 - SSR Relay Board), transistors; in fact, anything that will accept a CMOS signal.
Comes packaged with
- A 3001 - 180cm USB Cable
- A mounting hardware kit
Resources
Previous versions of the 1018
