| 1014_1 - PhidgetInterfaceKit 0/0/4 - Discontinued |
Product Features
- 4 Relay Outputs for switching AC or DC power
- Rated at 250VAC, 10 Amps or 100VDC, 5 Amps
- Connects directly to a computer’s USB port
Replaced by the 1014 - PhidgetInterfaceKit 0/0/4.

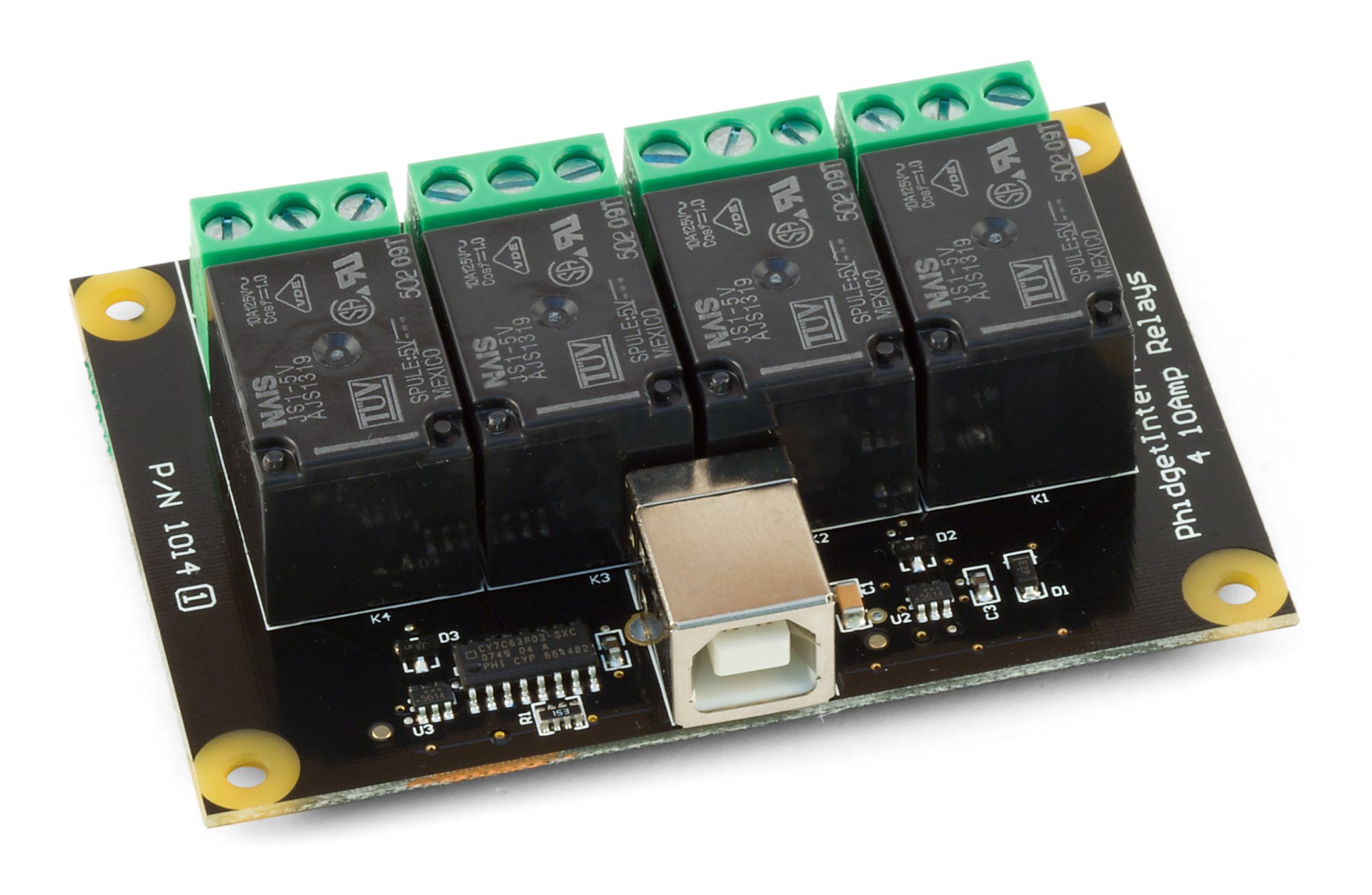

The PhidgetInterfaceKit 0/0/4 Provides a convenient way to interface your PC with various higher-voltage devices such as incandescent bulbs, high-power relays, and motors
The 1014 contains 4 Relay Outputs for switching AC or DC power; the relays are Single Pole Double Throw (SPDT).
Product Specifications
| Characteristic | Value |
|---|---|
| Type of Relay | Single Pole Double Throw (SPDT) |
| Contact Resistance (max) | 120mohms |
| Minimum switching Current (Wetting Current) | 100mA @ 5VDC |
| Maximum DC Switching Voltage | 100 VDC |
| Maximum DC Switching Current | 5 A |
| Maximum AC Switching Voltage | 250 VAC |
| Maximum AC Switching Current | 10 A |
| Operate Time | 10 ms |
| Switching Speed (Contacts per minute) | 20 cpm |
| Recommended Terminal Wire Size | 12 - 24 AWG |
| Terminal Wire Strip Length | 5 - 6mm (0.196" - 0.236") |
| Device Quiescent Current Consumption | 14mA |
| Device Active Current Consumption | 300mA max |
| Operating Temperature | 0 - 70°C |
Note: All relay contacts will slowly oxidize over time, depending on their construction. When the relay is switched, a certain amount of electricity is required to break through the oxide layer. The relays on the 0/0/4 have a minimum switching current of 100mA @ 5VDC, and therefore are not suitable for switching signals.
Related Products
If you are looking for a product to do signal switching see the 1017 - PhidgetInterfaceKit 0/0/8.
If you already have a 1018 – PhidgetInterfaceKit 8/8/8 you might want to have a look at the 3051 – Dual Relay Board and save yourself some money.
Comes packaged with
- A 3001 - 180cm USB Cable
- A Hardware mounting kit (4 nuts and bolts, 4 plastic spacers)
Resources
Previous versions of the 1014
