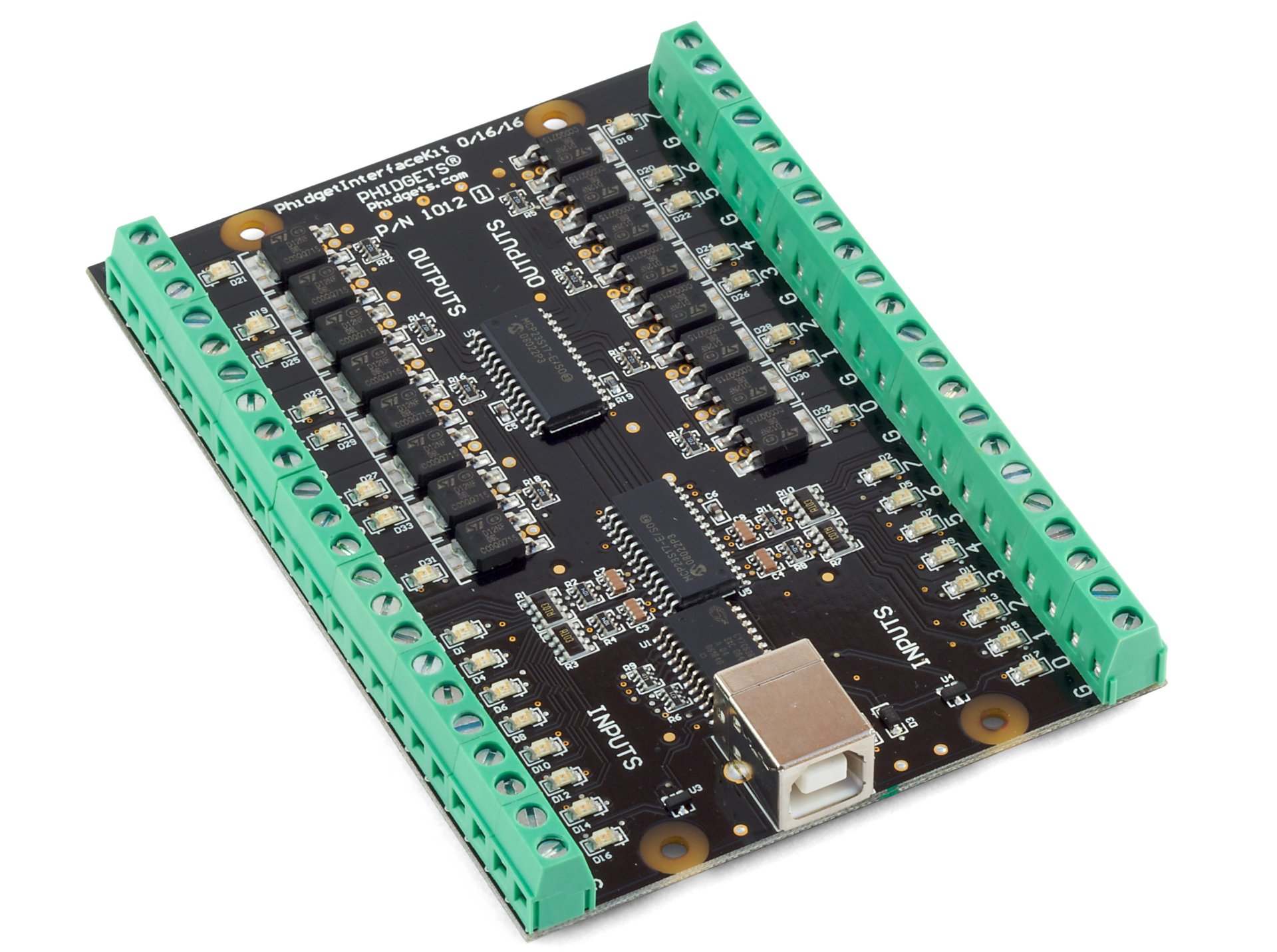

| 1012_1 - PhidgetInterfaceKit 0/16/16 - Discontinued |
Product Features
- 16 Digital Inputs - with hardware noise filtering - sensing up to 30VDC
- 16 Digital Outputs controlling up to 30VDC
- LED indicators on all I/O channels
Replaced by the 1012 - PhidgetInterfaceKit 0/16/16.
Digital Inputs
The Digital Inputs are activated by an external voltage source, triggering on a wide voltage range - 4 to 30VDC. They provide built-in filtering, to eliminate false triggering from electrical noise. They can be used to convey the state of on/off devices, such as push buttons, limit switches, relays.
Digital Outputs
The Digital Outputs can be used to directly control substantial devices, switching up to 30VDC at up to 2 Amps. The Output acts as a switch to ground, and is protected from transient voltages typical when switching inductive devices - relays, solenoids, motors. The Outputs can be used to directly control devices requiring substantial power such as incandescent lights, high power LEDs, relays, solenoids, motors.
Comes packaged with
- A 3001 - 180cm USB Cable
- A Hardware mounting kit (4 nuts and bolts, 4 plastic spacers)
Resources
Previous versions of the 1012:
Product Specifications
| Characteristic | Value |
|---|---|
| Digital Input Impedance (-0.5V to +5.5V) | 110KkΩ |
| Digital Input Impedance (>5.5V) | 10kΩ |
| Digital Output Impedance (on) | 0.2Ω |
| Digital Input Update Rate | 125 updates/second |
| Digital Input Minimum Event Detection Time | 3ms |
| Digital Output Update Rate | 125 updates/second |
| Digital Output Current Sinking (30V) | 2A max |
| Device Quiescent Current Consumption | 18mA |
| Device Active Current Consumption | 120mA max |
| Operating Temperature | 0 - 70°C |
