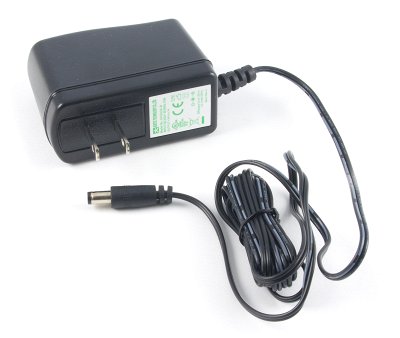

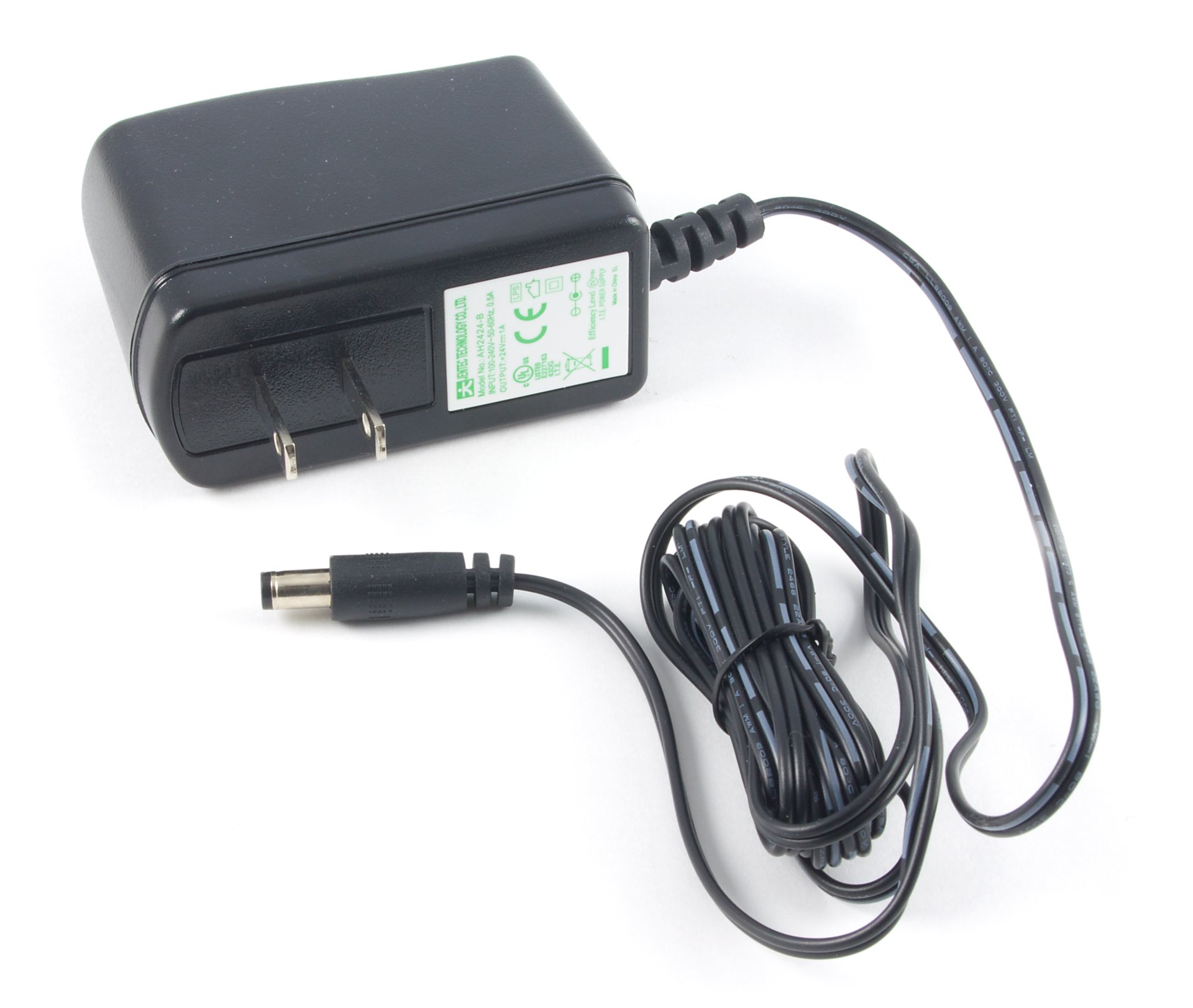

| 3086_0 - Power Supply 24VDC 1.0A - US |
Product Features
- General Purpose Power Supply
- Current - 1.0 Amp
- North American Style Plug
- Center Positive Polarity
Product Description
North American style plug.
The 3086 provides efficient power at 24VDC, 1.0 Amps, 24 Watts. It is protected against over-current, over-voltage, and short-circuits.
Product Specifications
Electrical Properties
| Power Supply Voltage Min | 22.8 V DC |
| Power Supply Voltage Max | 25.2 V DC |
| Power Supply Current | 1 A |
| Output Power | 24 W |
| AC Input Voltage Min | 100 V AC |
| AC Input Voltage Max | 240 V AC |
| AC Input Frequency Min | 50 Hz |
| AC Input Frequency Max | 60 Hz |
| Protection Circuitry | Over-Current, Over-Voltage, Short Circuit |
Physical Properties
| Wall Plug Style | North American |
| Power Jack Hole Diameter | 5.5 mm |
| Power Jack Pin Diameter | 2.1 mm |
| Power Jack Polarity | Center Positive |
| Operating Temperature Min | 0 °C |
| Operating Temperature Max | 40 °C |
Standards
- UL - file E227163
- CE - EN 55022/61000/55024
Recommended Use
The power supply can be used with all Phidgets that accept an external power supply, or for projects that need a power source.
This is the power supply we recommend to use with:
if you need higher voltage.
