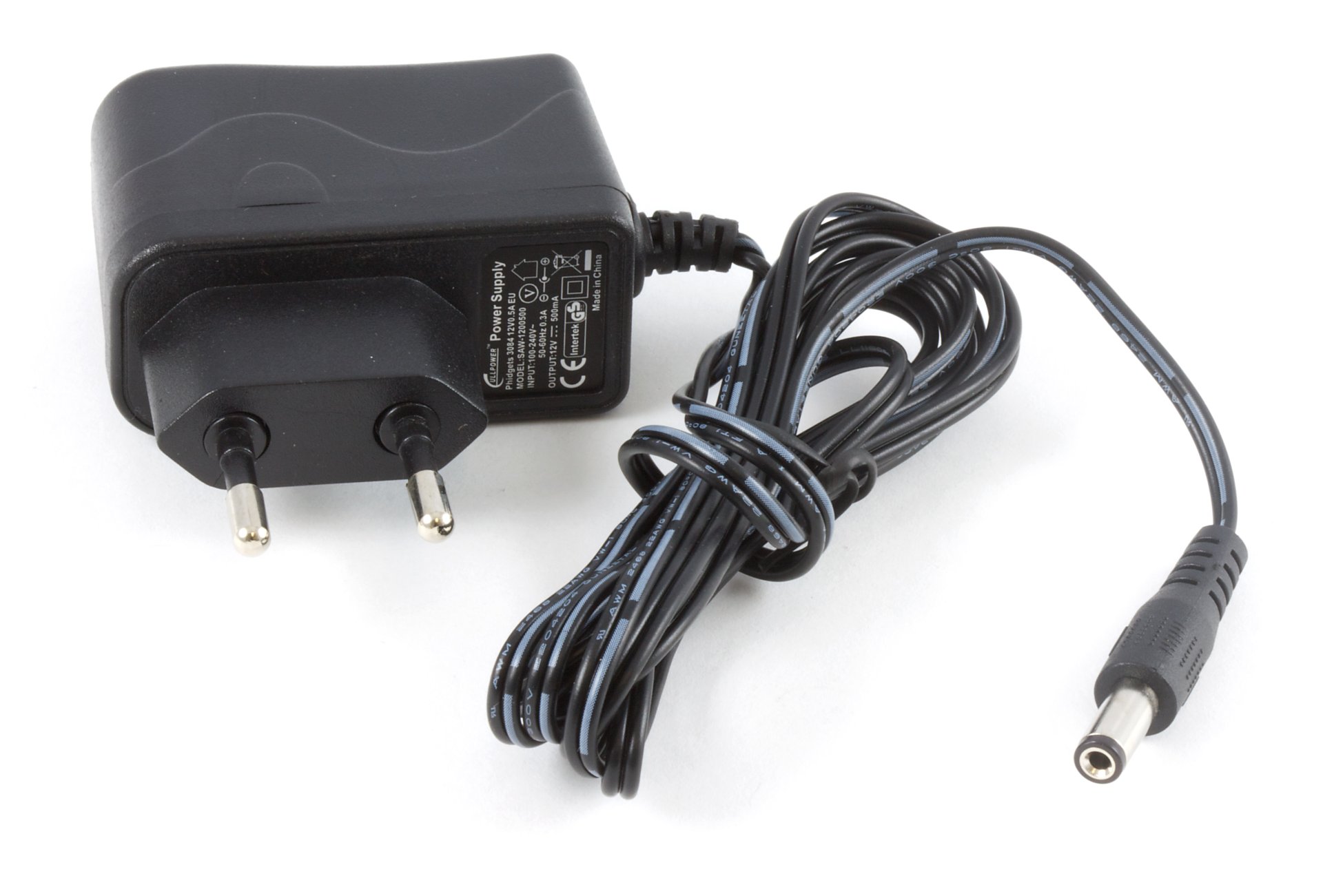

|3084_0 - Power Supply 12VDC 0.5A - EU|
- Small, General Purpose Power Supply
- Low Current - 0.5 Amp
- European Style Plug
- Center Positive Polarity
- Occupies a single slot on a power bar
European style plug.
The 3084 provides efficient power at 12VDC, 0.5 Amps, 6 Watts. It is protected against over-current.
It is a well priced, small power supply for projects that require a low-power external power supply.
|Power Supply Voltage Min||11.4 V DC|
|Power Supply Voltage Max||12.6 V DC|
|Power Supply Current||500 mA|
|Output Power||6 W|
|AC Input Voltage Min||100 V AC|
|AC Input Voltage Max||240 V AC|
|AC Input Frequency Min||50 Hz|
|AC Input Frequency Max||60 Hz|
|Protection Circuitry||Over-Current, Over-Voltage, Over-Temperature, Short Circuit|
|Wall Plug Style||European|
|Power Jack Hole Diameter||5.5 mm|
|Power Jack Pin Diameter||2.1 mm|
|Power Jack Polarity||Center Positive|
|Operating Temperature Min||-20 °C|
|Operating Temperature Max||40 °C|
- CE - Standard: EN60950/EN55022
This power supply can be used with all Phidgets that accept an external power supply, or for projects that need a power source.
If you are unsure about how much power your project demands, call us, or choose a larger power supply.
