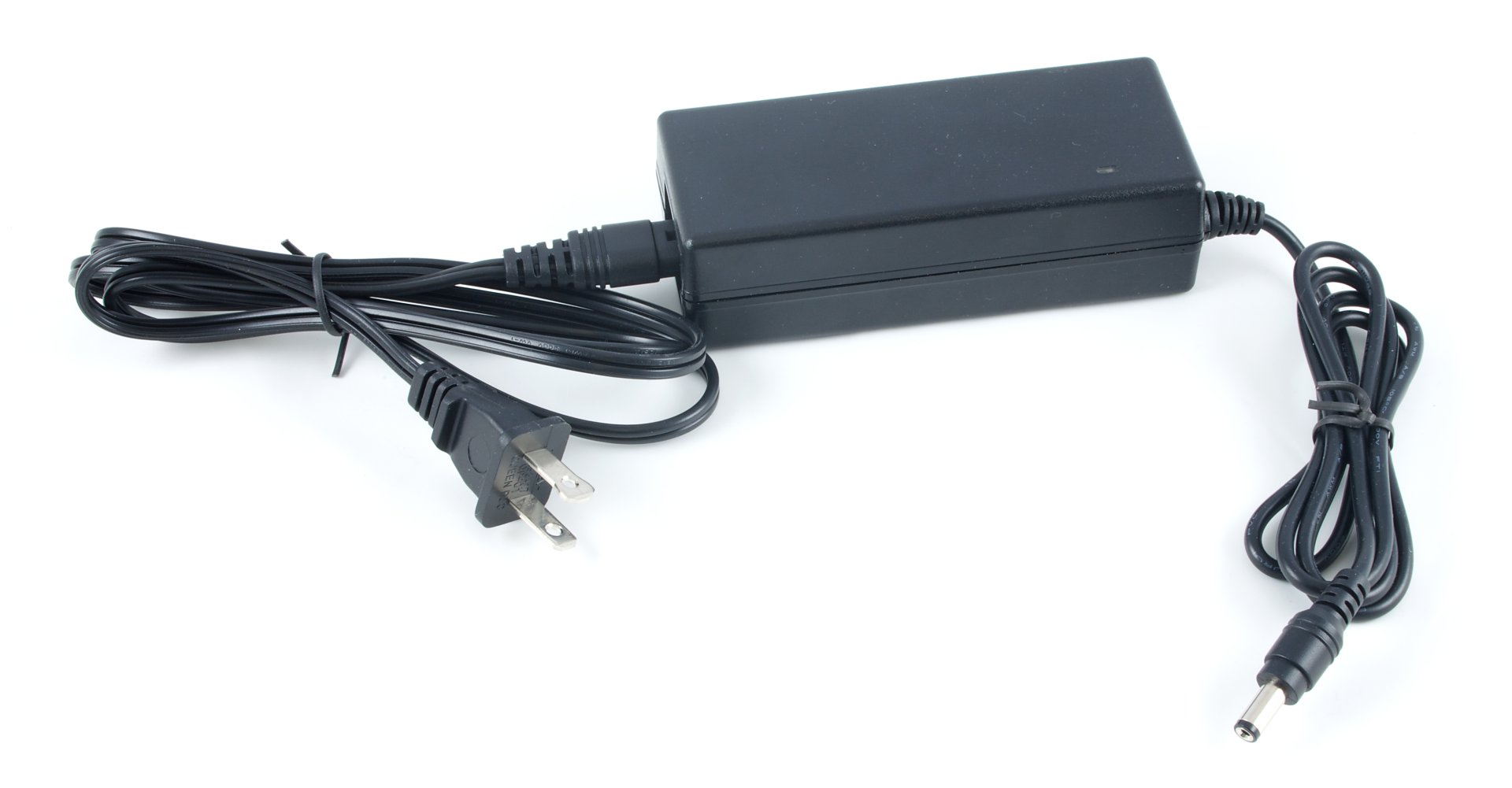

Power Supply 12VDC 5.0A - US

ID: 3082_0


Discontinued

This product has been split into the PSU4018 and PSU4100, sold separately.

Removable North American style wall plug.

The 3082 provides efficient power at 12DC, 5.0 Amps, 60 Watts. It is protected against over-current, over-voltage, short-circuits and over-temperature.

This power supply can be used with Phidgets that accept an external power supply, or for projects that need a power source.

This is the largest power supply we offer and should be used , for example, with the stepper and dc motor controllers that require a larger amount of current and power to meet your project's motor speed and torque requirements.

If you are unsure about how much power your project demands, call us.

Standards


  • CE - EN60950/EN55022
  • FCC - FCC part 15

Power Supply Accessories

Here are some handy products that are compatible with this power supply:

Product Physical Properties
Part Number Price Connector A Connector B Cable Length Cable Gauge
CBL4209_1
Female Pigtail 5.5x2.1mm
$2.75 Power Jack 5.5 x 2.1mm (Female) 2 Loose Wires 250 mm 20 AWG

Product Specifications

Electrical Properties
Power Supply Voltage Min 11.4 V DC
Output Voltage 12 V
Power Supply Voltage Max 12.6 V DC
Power Supply Current 5 A
Output Power 60 W
AC Input Voltage Min 100 V AC
AC Input Voltage Max 240 V AC
AC Input Frequency Min 50 Hz
AC Input Frequency Max 60 Hz
Protection Circuitry Over-Current, Over-Voltage, Over-Temperature, Short Circuit
Physical Properties
Wall Plug Style North American
Power Jack Hole Diameter 5.5 mm
Power Jack Pin Diameter 2.1 mm
Power Jack Polarity Center Positive
Operating Temperature Min -20 °C
Operating Temperature Max 40 °C
Customs Information
Canadian HS Export Code 8504.40.00
American HTS Import Code 8504.40.70.07
Country of Origin CN (China)
