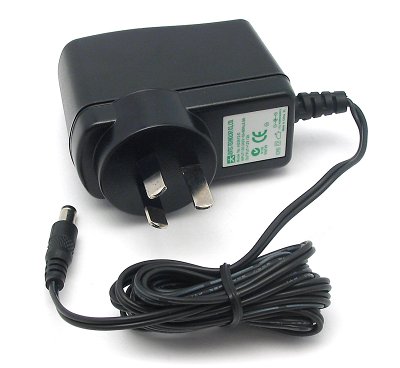

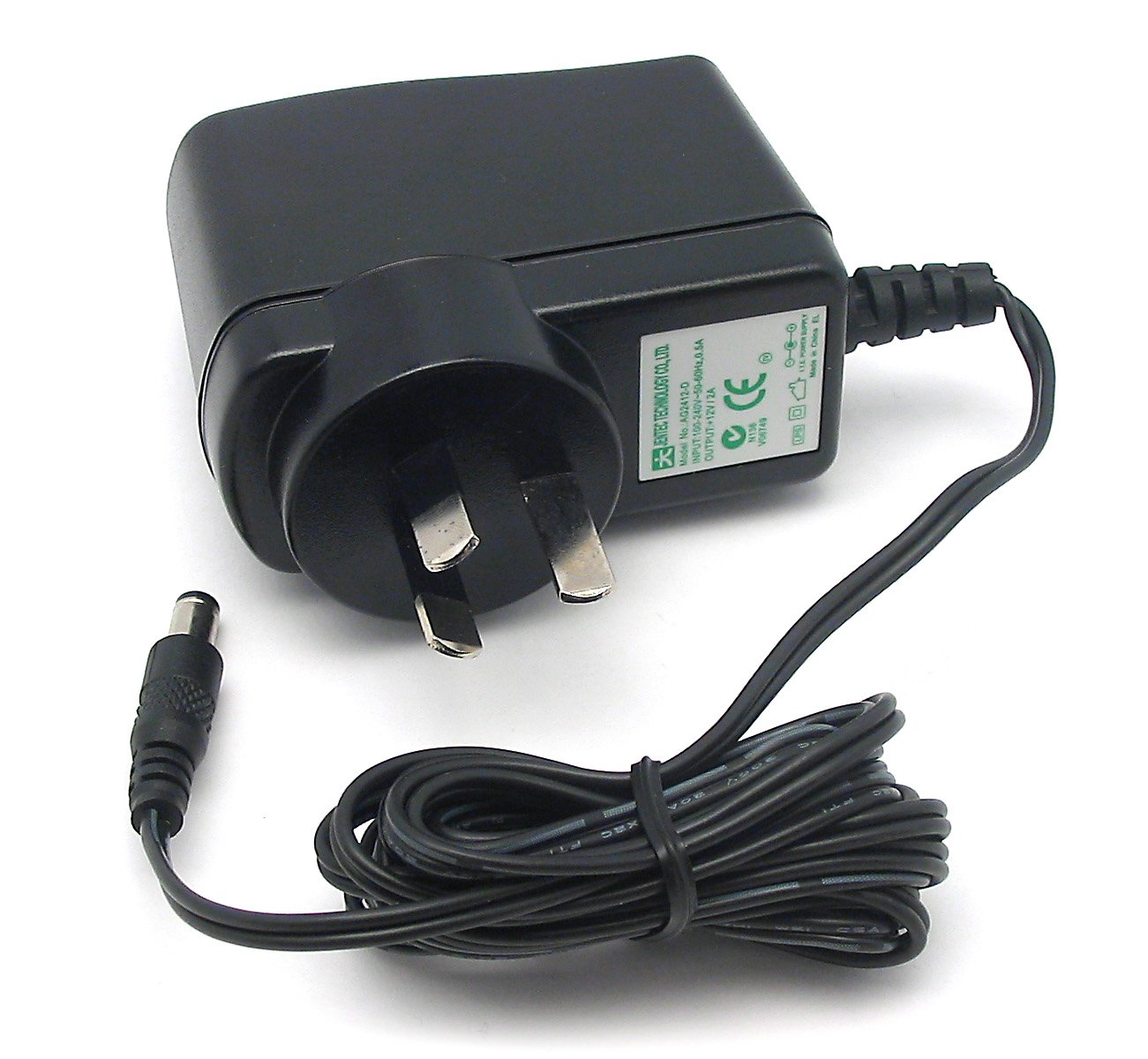

| 3022_0 - Power Supply 12VDC 2.0A - AU |
Product Features
- General Purpose Power Supply
- Australian Style Plug
- Center Positive Polarity
Product Description
Australian style plug.
The 3022 provides efficient power at 12VDC, 2.0 Amps, 24 Watts. It is protected against over-current, over-voltage, and short-circuits.
Product Specifications
Electrical Properties
| Power Supply Voltage Min | 11.4 V DC |
| Power Supply Voltage Max | 12.6 V DC |
| Power Supply Current | 2 A |
| Output Power | 24 W |
| AC Input Voltage Min | 100 V AC |
| AC Input Voltage Max | 240 V AC |
| AC Input Frequency Min | 50 Hz |
| AC Input Frequency Max | 60 Hz |
| Protection Circuitry | Over-Current, Over-Voltage, Short Circuit |
Physical Properties
| Wall Plug Style | Australian |
| Power Jack Hole Diameter | 5.5 mm |
| Power Jack Pin Diameter | 2.1 mm |
| Power Jack Polarity | Center Positive |
| Operating Temperature Min | 0 °C |
| Operating Temperature Max | 40 °C |
Product Certification
- C-Tick
- DOIR
- CE
The power supply can be used with all Phidgets that accept an external power supply, or for projects that need a power source.
Recommended Use
This is the power supply we recommend to use with:
- 1019 – PhidgetInterfaceKit 8/8/8 w/ 6 Port Hub
- 1061 – PhidgetAdvancedServo
- 1062 – PhidgetStepper Unipolar 4-Motor
- 1063 – PhidgetStepper Bipolar 1-Motor
