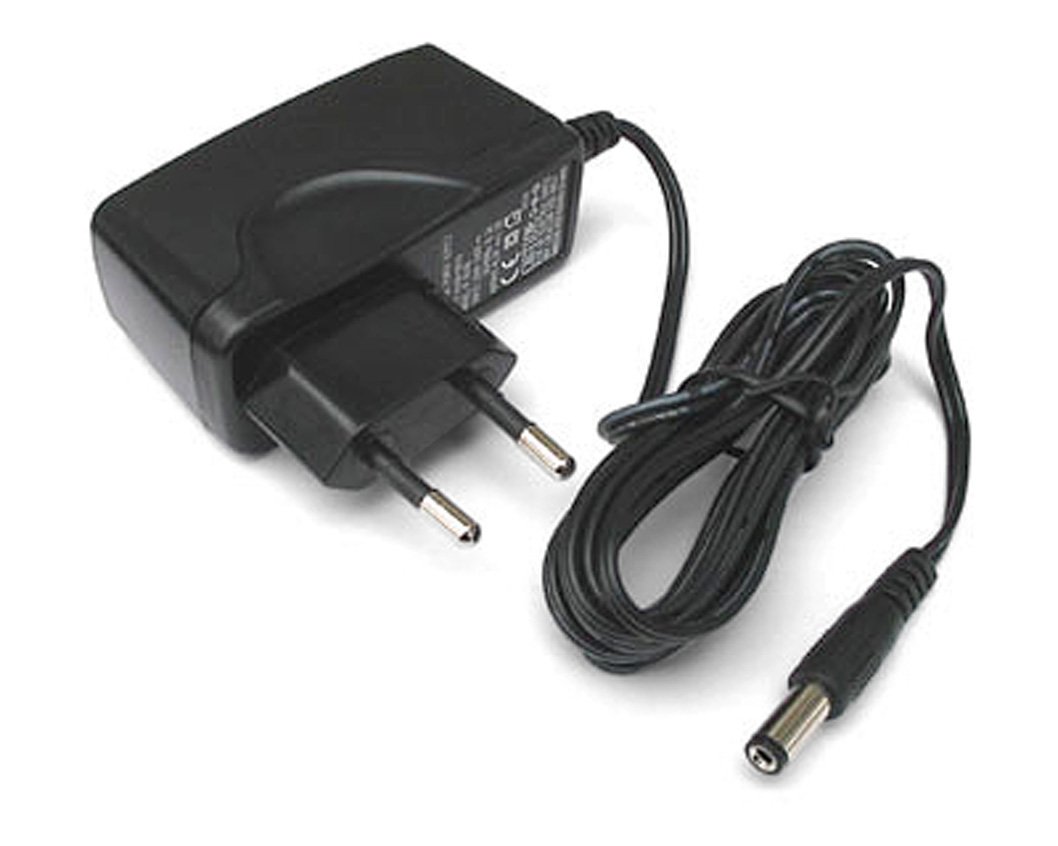

| 3010_0 - Power Supply 6VDC 1.5Amp - EU |
Product Features
- General Purpose Power Supply
- European Style Plug
- Center Positive Polarity
Product Description
The 3010 provides efficient power at 6VDC, 1.5 Amps, 9 Watts. It is protected against over-current.
If you need a power supply with a North American type plug see the 3005 – Power Supply 6VDC 1.5Amp – US.
The power supply can be used with many Phidgets that accept an external power supply, or for projects that need a small power source.
The 3010 can be used with the following Phidgets:
- 1030 – PhidgetLED-64
- 1060 – PhidgetMotorControl LV
- 1061 – PhidgetAdvancedServo 8-Motor
- 1062 – PhidgetStepper Unipolar 4-Motor
Related Products
Should you exceed the power output, we also offer larger power supplies with 4 different style of plugs:
- 3024 – Power Supply 12VDC 2.0A – US (North American type Plug)
- 3023 – Power Supply 12VDC 2.0A – EU (European type Plug)
- 3025 – Power Supply 12VDC 2.0A – UK (United Kingdom type Plug)
- 3022 – Power Supply 12VDC 2.0A – AU (Australian type Plug)
Product Specifications
Electrical Properties
| Power Supply Voltage Min | 5.7 V DC |
| Power Supply Voltage Max | 6.3 V DC |
| Power Supply Current | 1.5 A |
| Output Power | 9 W |
| AC Input Voltage Min | 100 V AC |
| AC Input Voltage Max | 240 V AC |
| AC Input Frequency Min | 50 Hz |
| AC Input Frequency Max | 60 Hz |
| Protection Circuitry | Short Circuit |
Physical Properties
| Wall Plug Style | European |
| Power Jack Hole Diameter | 5.5 mm |
| Power Jack Pin Diameter | 2.1 mm |
| Power Jack Polarity | Center Positive |
| Operating Temperature Min | 0 °C |
| Operating Temperature Max | 40 °C |
