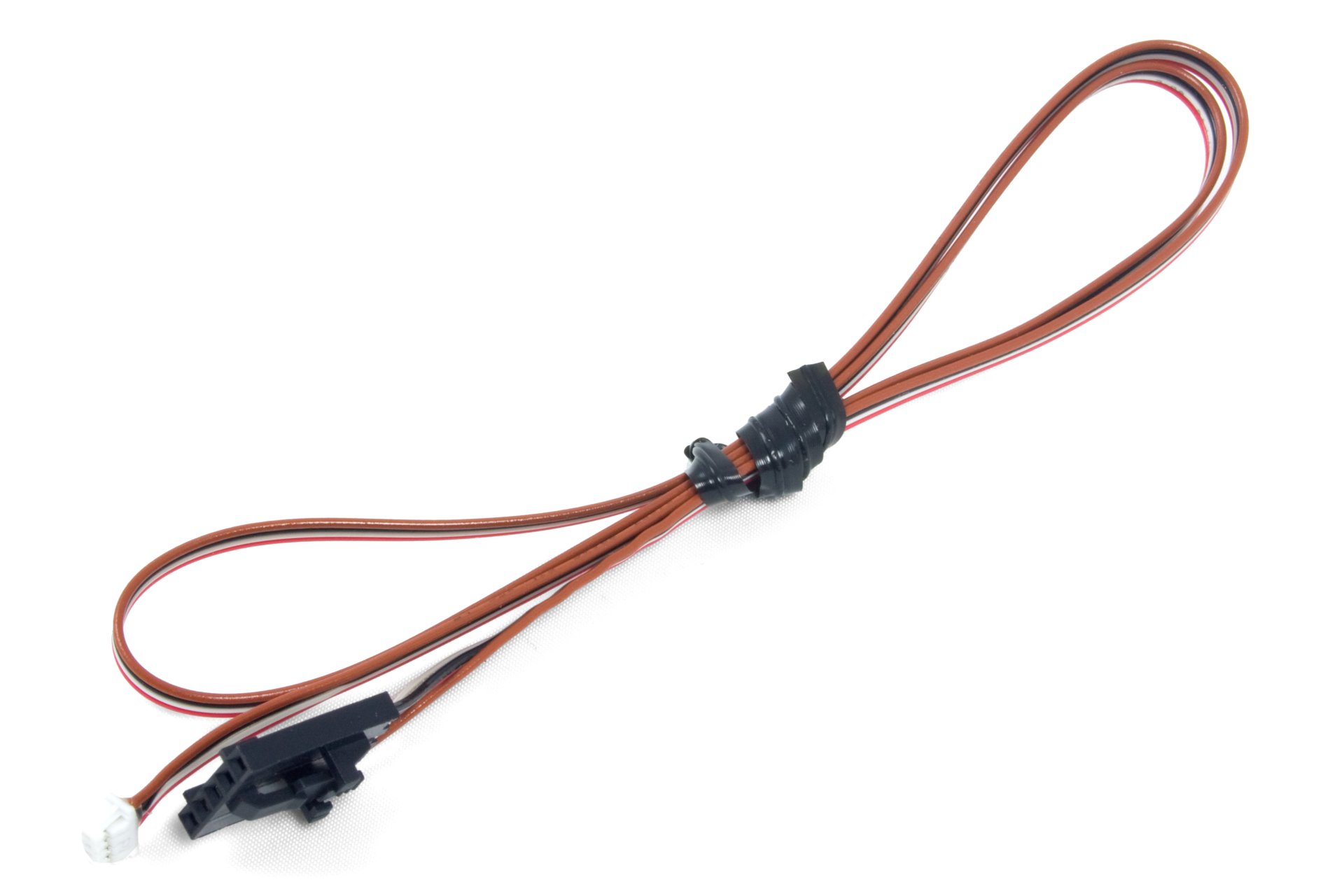

| 3032_0 - E4P Encoder Cable |
Product Features
- Cable Length: 50cm
- Connects to the E4P encoders that come with some of our DC Motors
Pin-Out
- Ground - Black
- Not Connected
- A Channel - White
- +5V DC - Red
- B Channel - Brown
Product Specifications
Physical Properties
| Connector A | E4P |
| Connector B | Encoder 4-Wire |
| Cable Length | 500 mm |
| Cable Gauge | 28 AWG |
Resources
Connects to:
- 1047 - PhidgetEncoder HighSpeed 4-Input
- 1057 - PhidgetEncoder HighSpeed
- Encoders that come with some of our DC Motors
