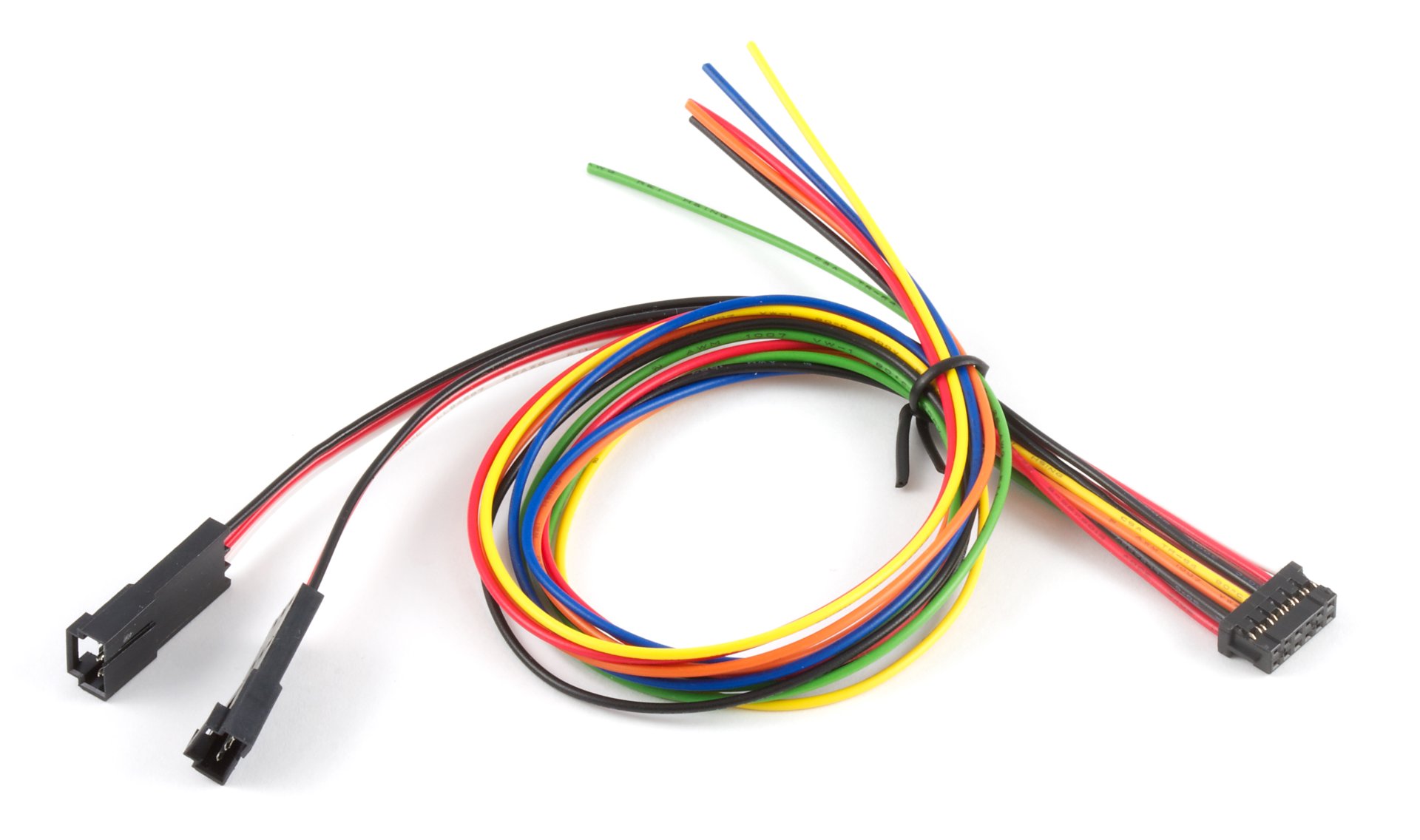

| 3013_0 - PhidgetInterfaceKit 2/2/2 replacement cable |
Product Features
- Replacement Cable for the 1011 – PhidgetInterfaceKit 2/2/2
- 12 wire cable
Used on:
Product Specifications
Physical Properties
| Connector A | Analog 3-Wire (Female) & 6 Loose Wires |
| Connector B | 12-Wire Connector |
| Cable Length | (Loose Wires 46 cm) 160 mm |
| Cable Gauge | 26 AWG |
Wire Assembly
Wires 1,2,3 and wires 7,8,9 end with a female connector designed to take the Phidget sensor cable. The other wires are loose.
See the analog inputs section of the 1011 Product Manual to find manufacturer part numbers for the connectors.
