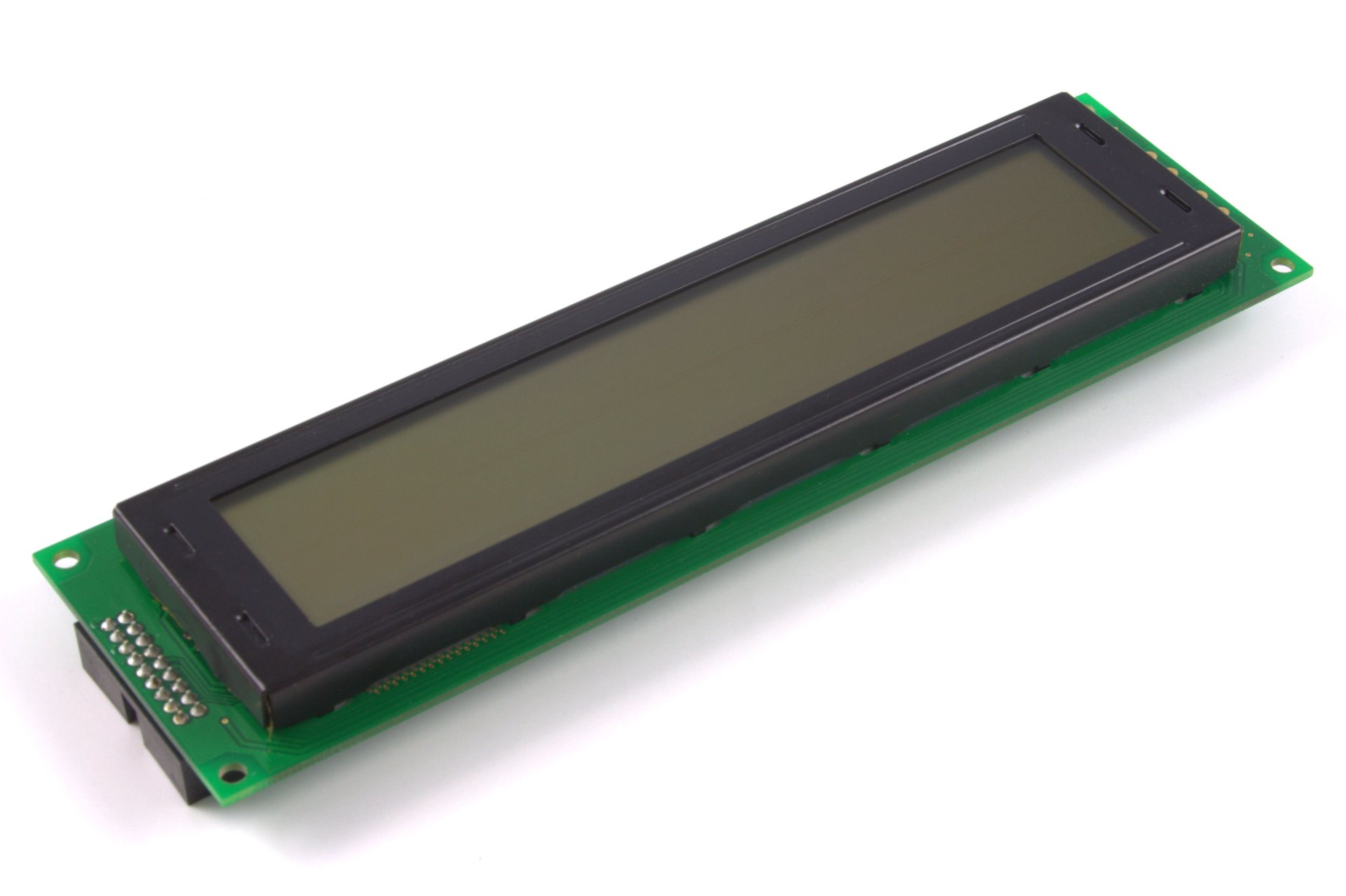

| 3655_0 - LCD Screen 4x40 - LCM4004A |
Product Features
- 4-line x 40 characters
- 5x8 dots with cursor
- Character Size: 2.78 x 4.89mm
- Module Dimension: 190 x 54mm
- White LED Backlight from the side
Approximate arrival date of new stock: May 17, 2013
Product Description
The 3655 is a 4-line x 40 characters LCD module with a viewing area of 147 x 29.5mm. From software, the LCD contrast, and the LED backlight brightness can be adjusted.
You can also select between a "dash" cursor or a blinking "square" cursor and turn the cursor on or off.
Product Specifications
LCD Screen
| Dots per Character | 5 x 8 |
| Character Width | 2.8 mm |
| Number of Rows | 4 |
| Characters per Row | 40 |
| Backlight Current Consumption Max | 480 mA |
Board
| Current Consumption Max | 3 mA |
| Operating Temperature Min | -20 °C |
| Operating Temperature Max | 70 °C |
Comes Packaged with
Resources
Connections
This LCD connects to the 1204 - PhidgetTextLCD Adapter using the cable that came with your LCD screen.
