| 3911_0 - RFID Tag - 30mm Disc Black |
Product Features
- EM4102 protocol
- 125kHz Frequency
- Passive tag, Read Only
- Typical read distance: 10cm
Product Description

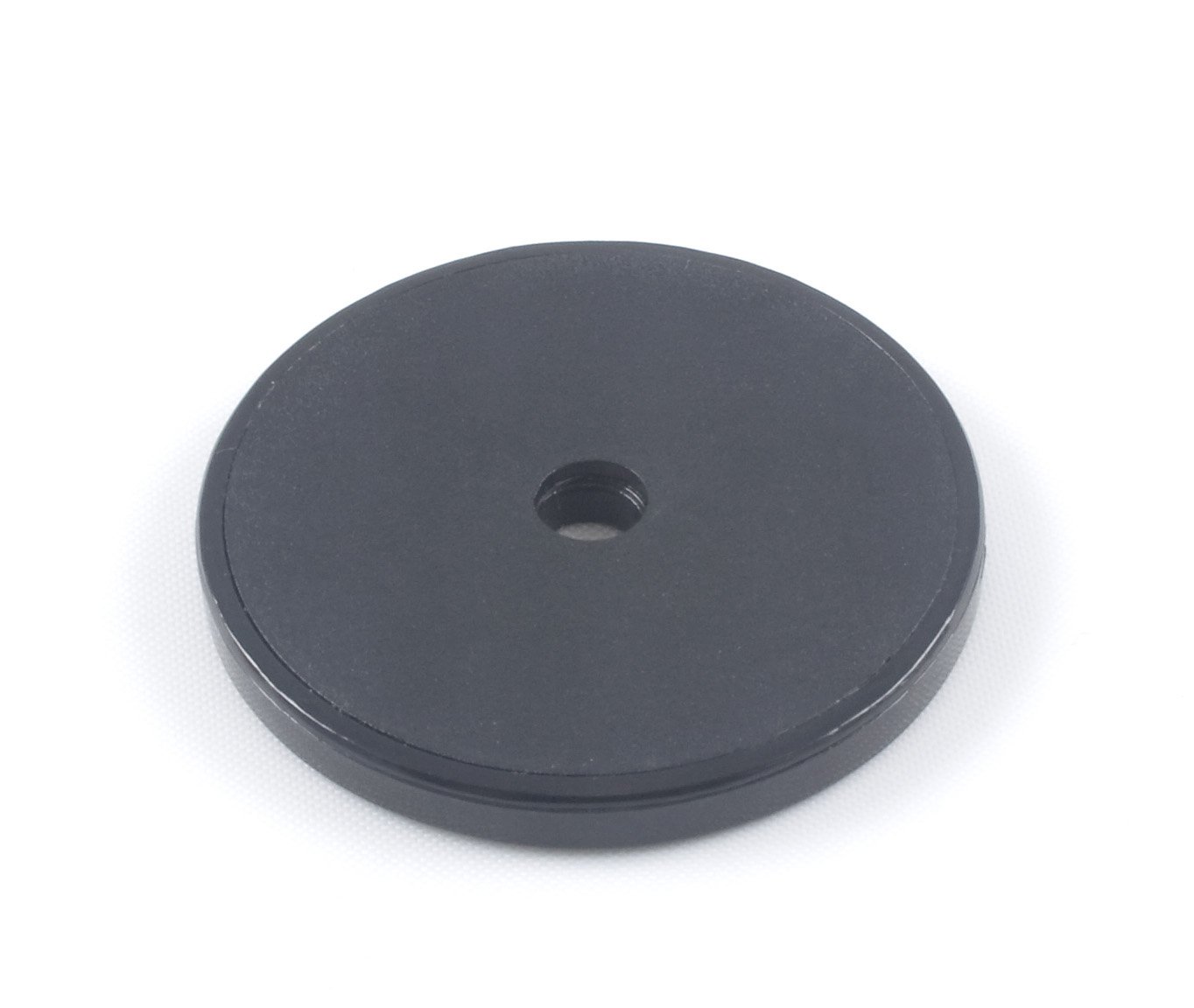

This plastic RFID tag has a robust design for factory or manufacturing use. It can be attached to anything using a screw or bolt though the hole in the center of the tag or stuck on with adhesive. The tag contains a unique ID that can be read by the 1023 – RFID reader at a distance of 11cm or less.
Related Products
RFID Reader:
Other Disc Tags:
- 3904 - RFID Tag - Metal Mount
- 3908 - RFID Tag - Large Disc
- 3910 - RFID Tag - Large Disc With Adhesive
All RFID Products
Product Specifications
Tag Properties
| Protocol | EM4102 |
| Tag Characteristics | Passive, Read-Only |
| Transmission Frequency | 125 kHz |
| Encoding Method | Manchester |
| Message Length | 64 bit |
| Unique ID Length | 40 bit |
| Typical Read Distance (with 1023 - PhidgetRFID) | 100 mm |
Physical Properties
| Material | ABS |
| Color | Black |
| Diameter | 30 mm |
| Hole Diameter | 4 mm |
| Thickness | 3.2 mm |
| Weight | 2.6 g |
| IP Rating | IP67 |
