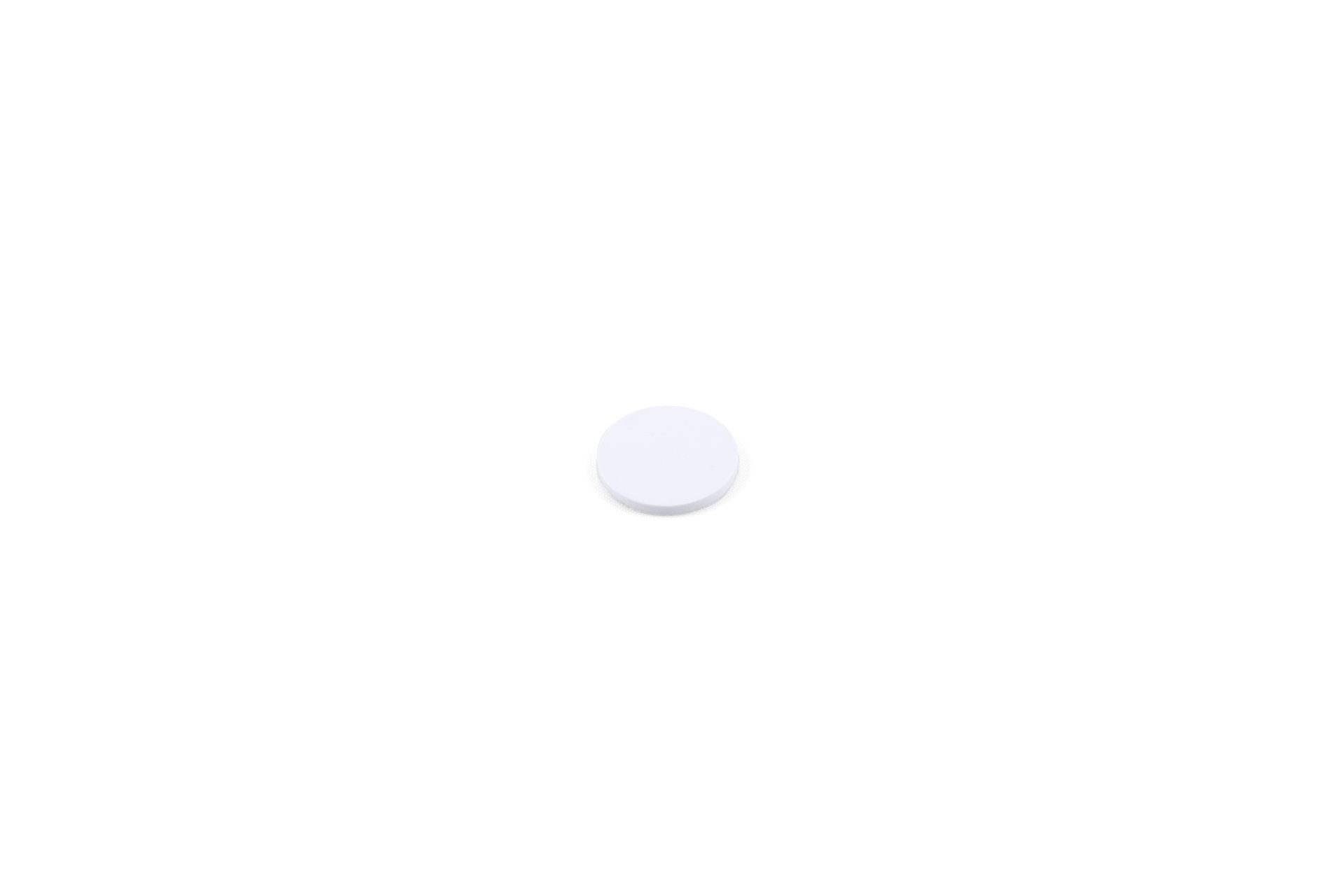

| 3909_0 - RFID Tag - PVC 15mm Disc White Self Adhesive |
Product Features
- EM4102 protocol
- 125kHz Frequency
- Passive tag, Read Only
- Typical read distance: 5cm
Product Description
A small plastic RFID tag disc with adhesive on the back. The adhesive will attach the tag to an object semi-permanently. This versatile tag can be attached to nearly anything. We also carry a larger disc and two without adhesive backing. The tag contains a unique ID that can be read by the 1023 – RFID reader at a distance of 5cm or less.
Related Products
RFID Reader:
Other Disc Tags:
- 3907 - RFID Tag - Small Disc
- 3908 - RFID Tag - Large Disc
- 3910 - RFID Tag - Large Disc With Adhesive
All RFID Products
Product Specifications
Tag Properties
| Protocol | EM4102 |
| Tag Characteristics | Passive, Read-Only |
| Transmission Frequency | 125 kHz |
| Encoding Method | Manchester |
| Message Length | 64 bit |
| Unique ID Length | 40 bit |
| Typical Read Distance (with 1023 - PhidgetRFID) | 50 mm |
Physical Properties
| Material | PVC |
| Color | White |
| Diameter | 15 mm |
| Thickness | 1.4 mm |
| Weight | 400 mg |
| IP Rating | IP67 |
