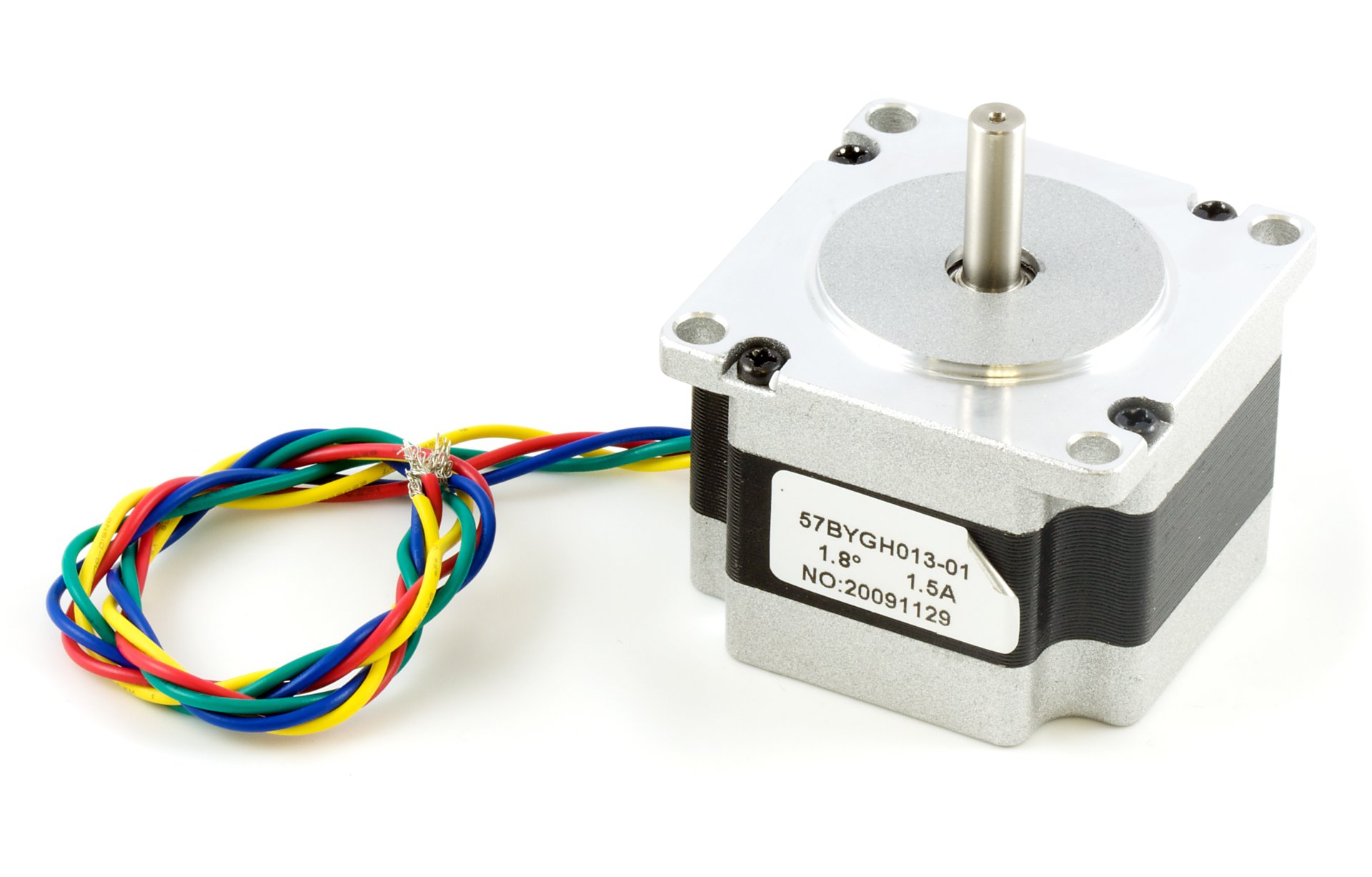

|3306_0 - NEMA-23 Bipolar 41mm Stepper|
- High Torque
- 1.8° Step Angle
- 4000 g-cm holding torque @ 1.5A
- 3580 g-cm low speed torque
- NEMA-23 Bipolar 4-wire
This NEMA-23 motor produces up to 4 Kg-cm of torque at 1.5 Amps.
The 3306 stepper motor connects to a bipolar motor controller:
Motors with Yellow, Blue, Green and Red wires
The following table shows how to connect the motor wires to the board connectors to produce a clockwise rotation in the stepper motor when increasing position. To wire for counter-clockwise rotation when increasing position, reverse the yellow and blue wires.
Motors with Black, Green, Red, and Blue wires
The following table shows how to connect the motor wires to the board connectors to produce a clockwise rotation in the stepper motor when increasing position. To wire for counter-clockwise rotation when increasing position, reverse the red and blue wires.
Note: Make sure to unplug the power cord from the motor controller before switching wires around.
|Connecting the motor directly to a power supply will destroy the motor and void the warranty. If you want to check your motor make sure it is connected to a constant current / chopper drive controller.|
|Motor Type||Bipolar Stepper|
|Manufacturer Part Number||57BYGH013|
|Step Accuracy||5 %|
|Holding Torque||4 kg·cm|
|Rated Torque||3.6 kg·cm|
|Maximum Speed (w/1063 Motor Controller)||600 RPM|
|Maximum Speed (w/1067 Motor Controller)||4688 RPM|
|Acceleration at Max Speed |
(w/1067 Motor Controller)
|350000 1/16 steps/sec²|
|Recommended Voltage||24 V DC|
|Rated Current||1.5 A|
|Coil Resistance||1.8 Ω|
|Mounting Plate Size||NEMA - 23|
|Number of Leads||4|
|Wire Length||300 mm|
